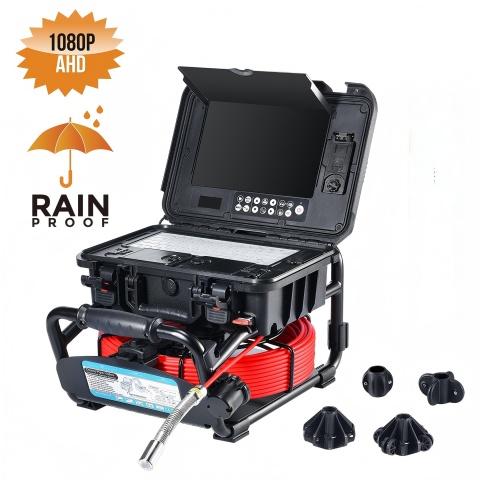

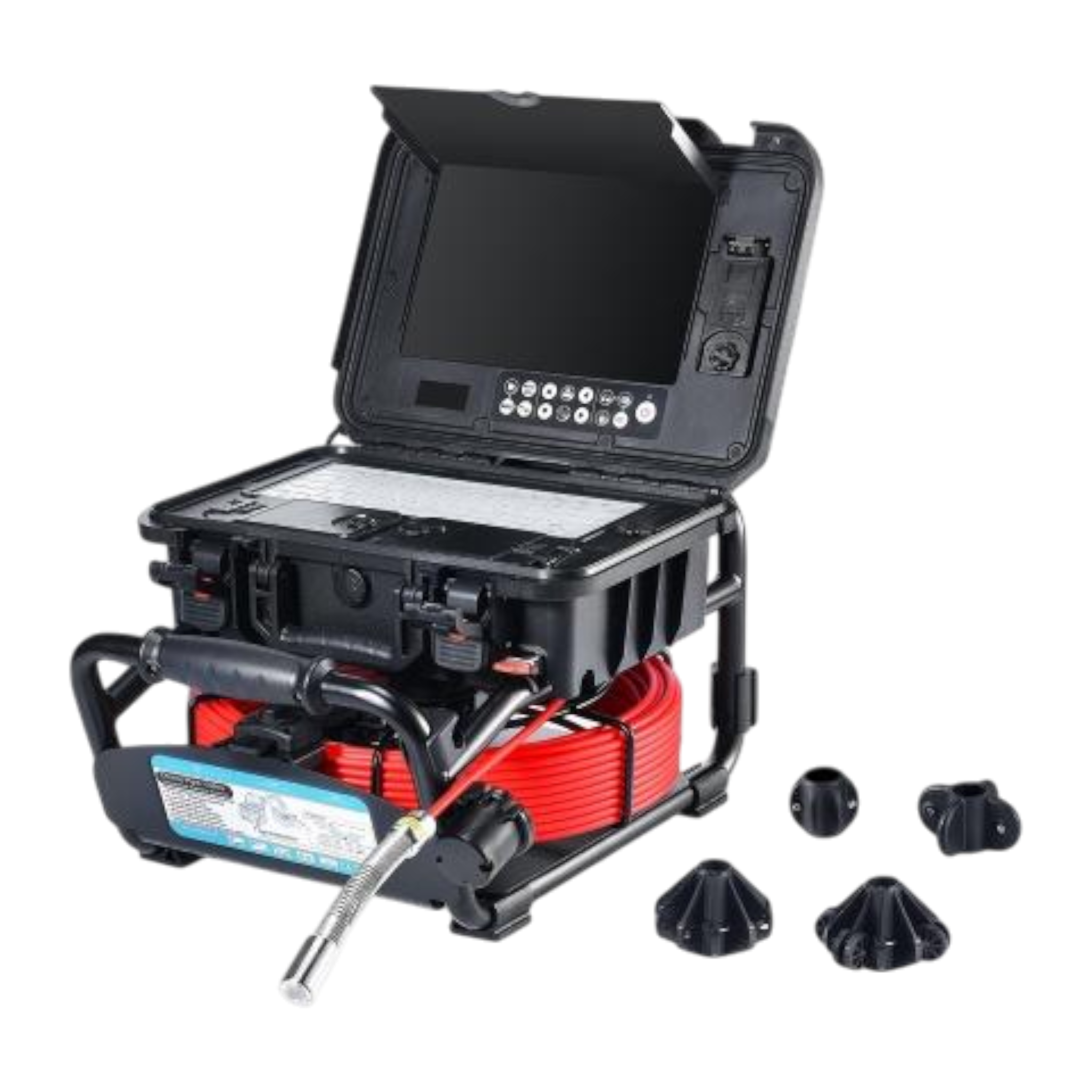

TvbTech 3599FB-10 Rain-Proof Sewer Inspection Camera System

The TvbTech rain-proof professional pipe inspection camera system is designed for reliable performance in demanding field conditions. It is ideal for inspecting sewers, drains, pipelines, air ducts, and underground cable conduits.

The system features a 23 mm AHD 1080P camera head, a 50 m / 130 ft fiberglass push cable with a 6.8 mm diameter, and a 10-inch LCD monitor with SD card recording, delivering clear visuals and easy documentation during inspections. It is well suited for pipe diameters ranging from DN 30 mm to 150 mm.

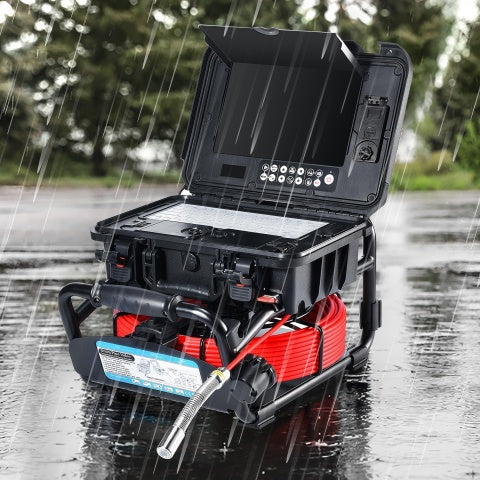

Built for real jobsite conditions, this inspection camera system can be operated in all weather conditions, rain or shine. Its modular design allows for easy maintenance and servicing, helping reduce downtime and keep the system performing reliably over time.

Self-Leveling Camera Head with Built-in 512Hz Sonde

• Camera Size: Ø23 mm × 51 mm
• Total Camera Length: 155 mm
• Sensor: 1/3" CMOS
• Resolution: AHD 1920 × 1080 (1080P)
• Viewing Angle: 130°
• Focus Distance: Approx. 15 cm
• Depth of Field: Approx. 20 cm
• Front Lens: Sapphire glass
• Waterproof Rating: Up to 20 m underwater (camera fixed on cable)
• Housing Material: 304 stainless steel
• Lighting: Built-in 15 × white LEDs
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 60°C (4°F to 140°F)

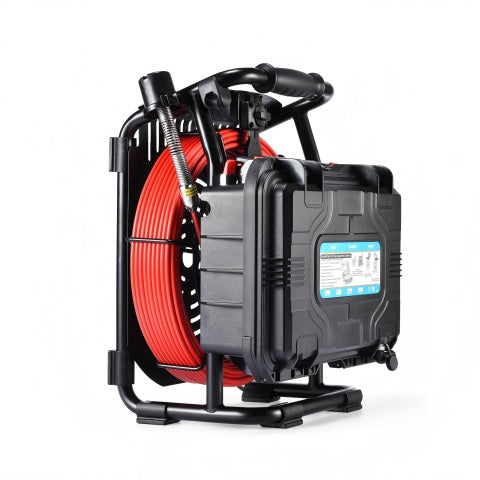

Cable Reel

• Cable Length: 50 m / 130 ft
• Push Cable Diameter: 6.8 mm
• Cable Material: Fiberglass core with PP coating
• Integrated smart braking system

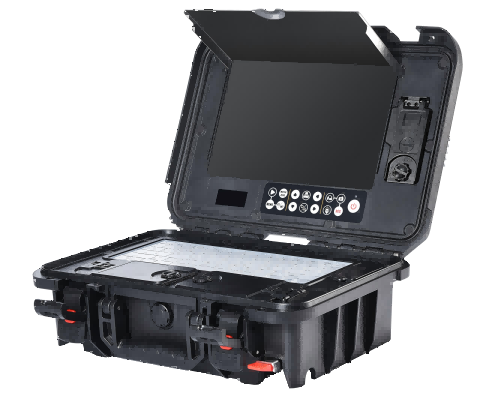

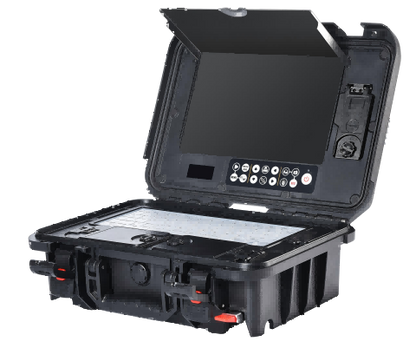

LCD Monitor

• Screen: 10" 16:9 super-bright HD color LCD (rain-proof design)
• Resolution: 1024 × 600 pixels
• Image Functions: Mirror and flip supported
• Video Resolution: AHD 1080P / CVBS D1
• Video Encoding: H.264
• Audio Recording: Local sound recording
• Outputs: TV output & audio output
• On-Screen Display: Date, time, and distance (meters/feet – optional)
• External Storage: SD card support up to 64 GB
• Languages Supported: Chinese (Simplified & Traditional), English, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish

Battery & Power

• Power Input: DC 12 V
• Battery Type: 7.2 V 6400 mAh Li-ion battery
• Power Output: 6–12 V DC, USB 5 V
• Operating Time: Approx. 6 hours
• Charging Time: Approx. 8 hours
