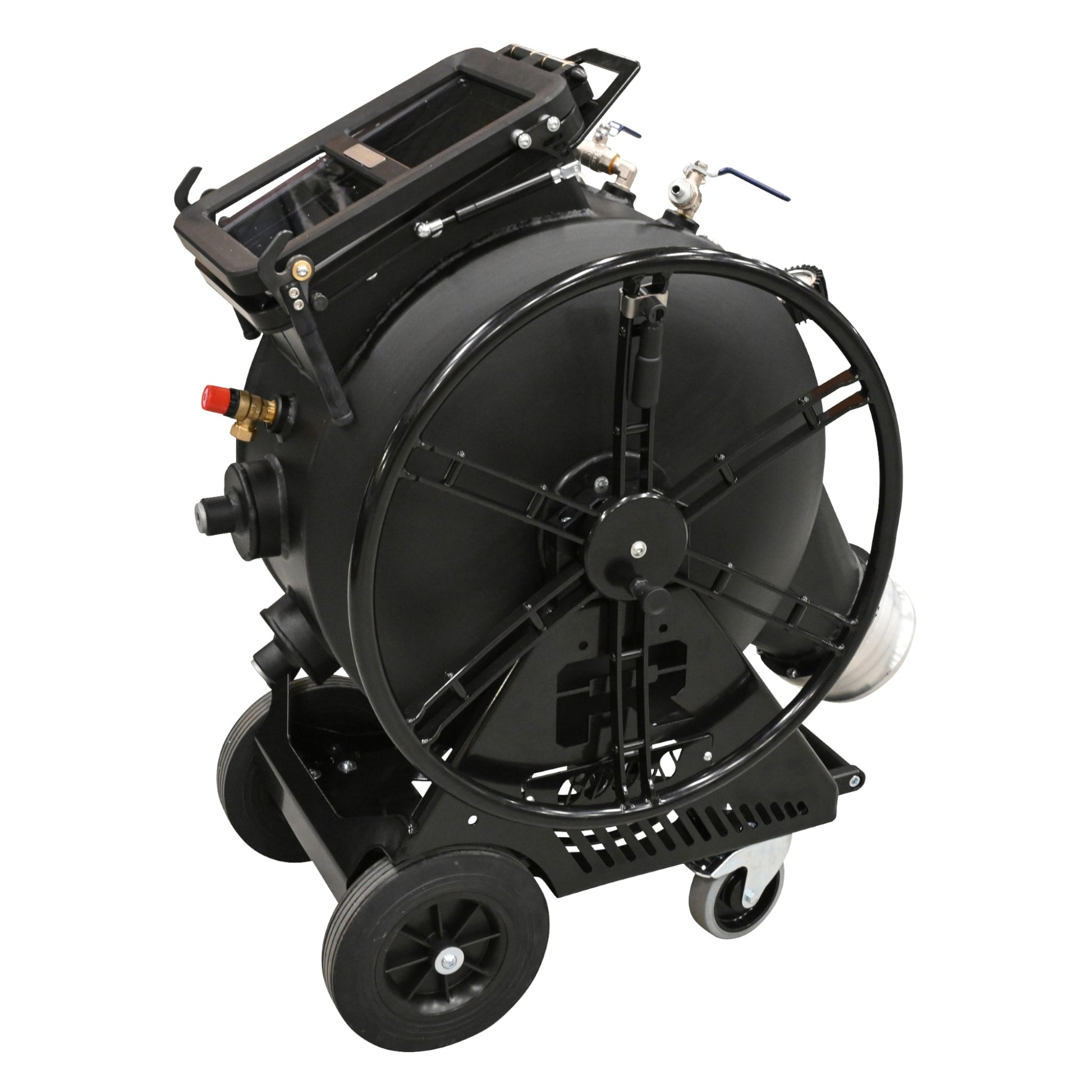

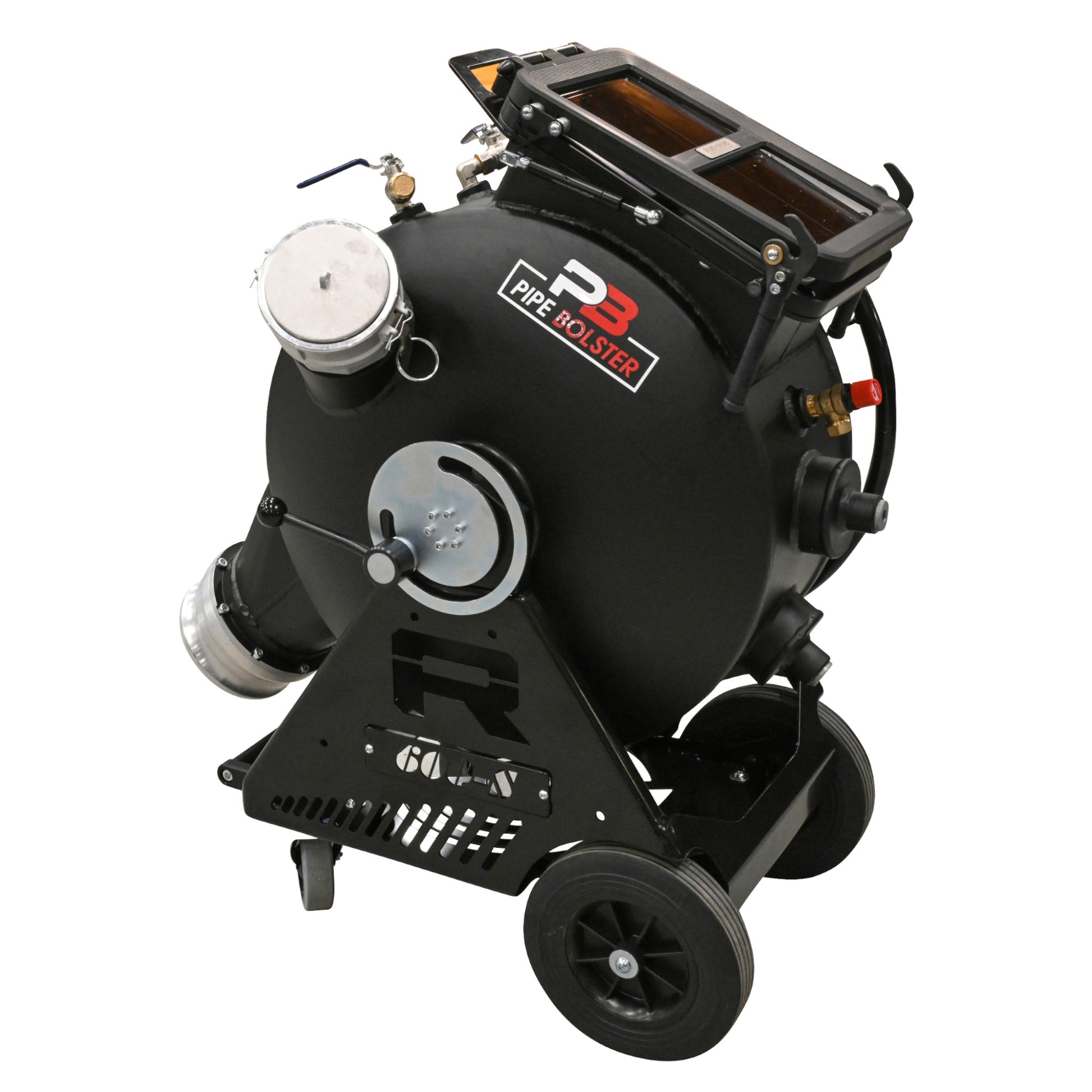

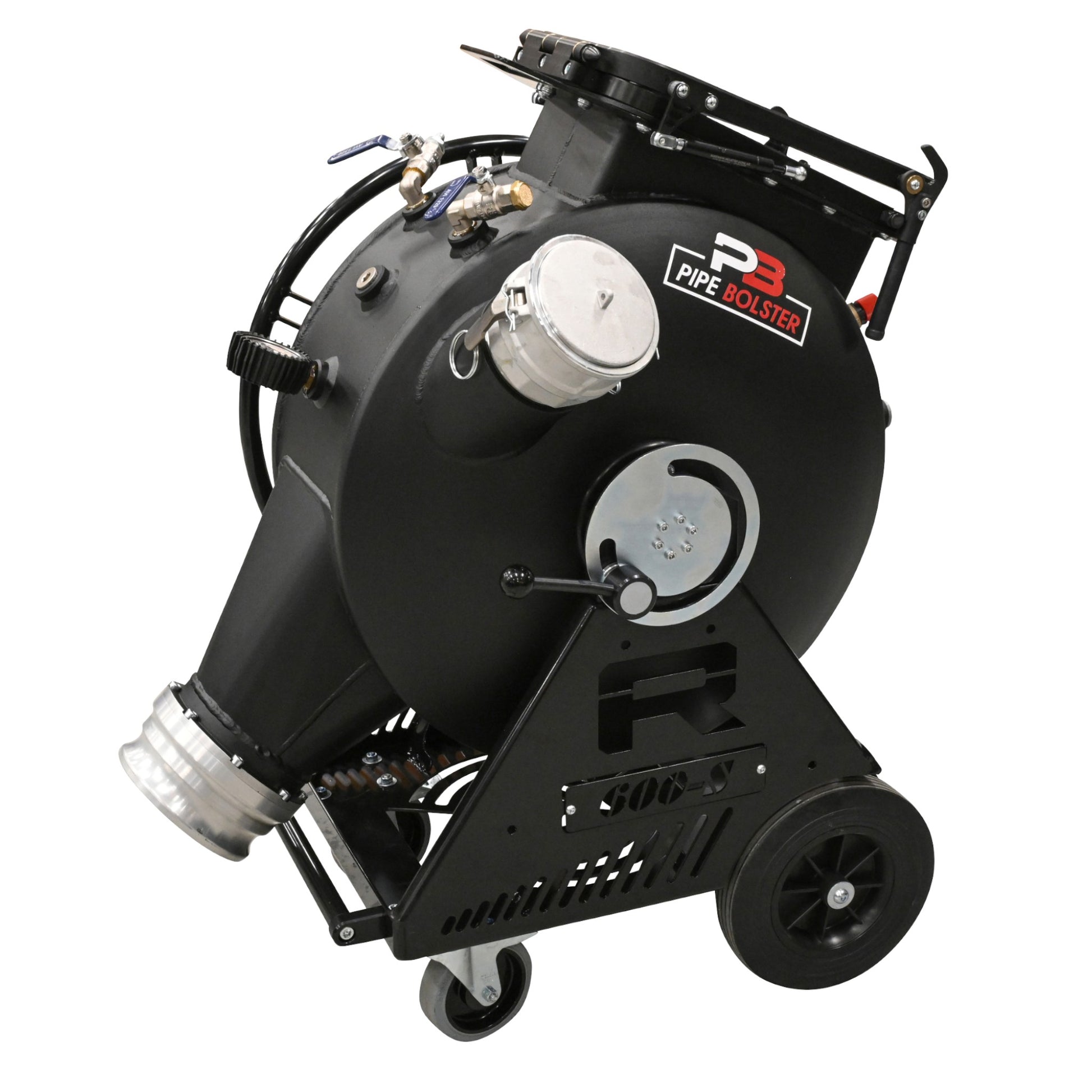

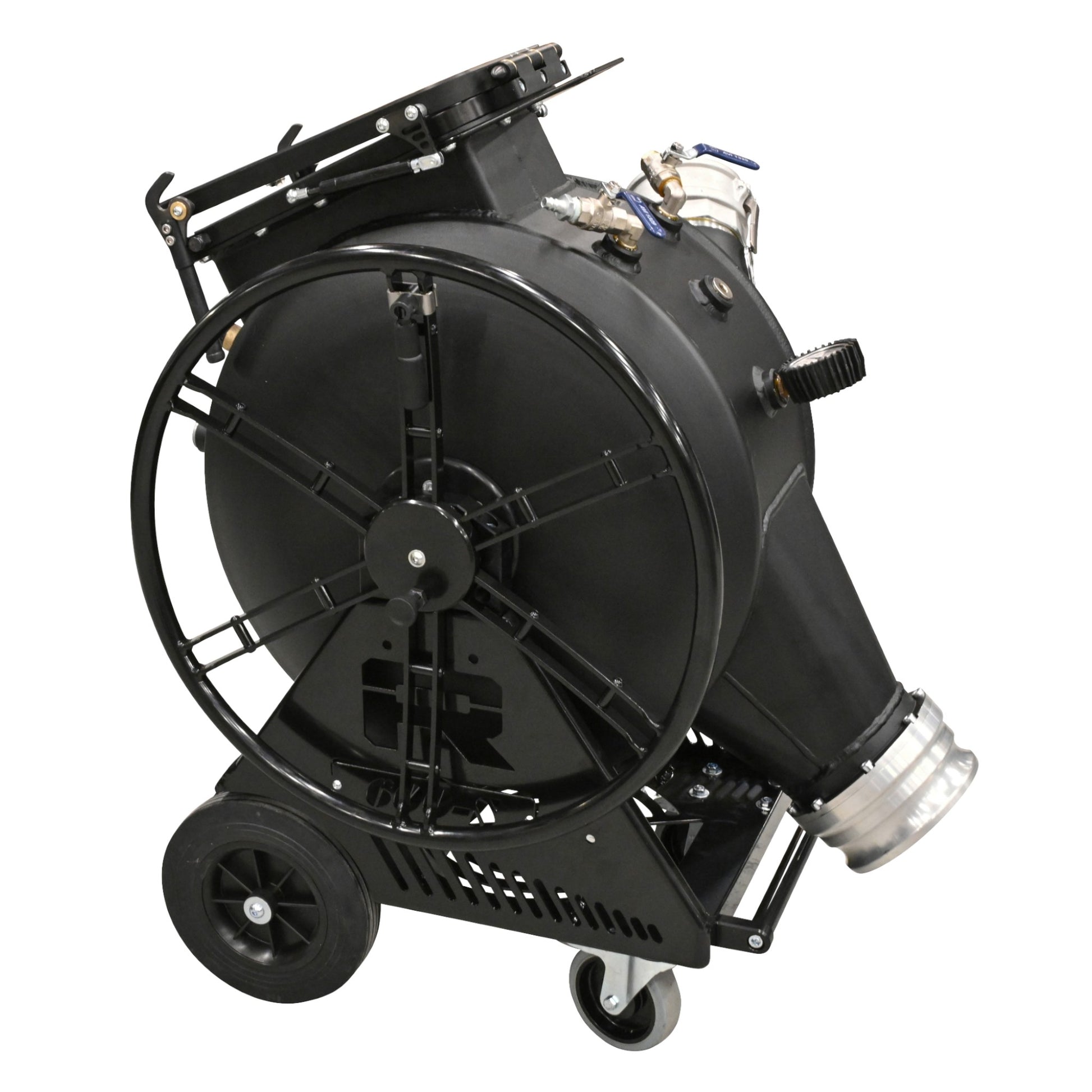

PipeBolster RID-600-S3 Slim CIPP Inversion Drum

Versatile and Durable Inversion Equipment for CIPP Applications

The PipeBolster RID-600-S3 Slim Inversion Drum is a robust and reliable tool designed for the installation of CIPP (Cured-In-Place Pipe) liners in a wide range of pipe rehabilitation projects. Constructed from stainless steel, it offers consistent performance and precise control during liner inversion, whether on residential, commercial or municipal jobs.

Main Features

• Stainless steel build: ensures long-term durability and resistance to wear in demanding environments.
• Inspection window: provides clear visibility to monitor liner inversion in real time.
• Pressure regulation valve: enables smooth and controlled liner deployment.
• Ergonomic drum rotation system: facilitates consistent and even inversion.
• Wide liner range: handles liner diameters from 1.5" to 8" with interchangeable drum heads.
• Compatible with various curing methods: suitable for ambient cure, hot water, steam and UV curing processes.
• Open compatibility: works with PipeBolster pre-impregnated liners and other industry-standard liners.

Designed to meet the practical needs of field technicians and contractors, the PipeBolster Inversion Drum supports efficient, repeatable installations across different site conditions and curing technologies.

Specifications

• Liner capacity: 4" / 100 mm – 148' / 45 m
• Liner capacity: 6" / 150 mm – 65' / 20 m
• Liner diameter range: 1.5" to 8" / 40 to 200 mm
• Maximum operating pressure: 30 PSI / 2.07 bar
• Drum width: 23" / 59 cm
• Height: 38.5" / 98 cm
• Weight: 109 lb / 49.5 kg
• Nozzle connection: 6" Camlock

Accessories (sold separately)

• 3" / 75 mm drum head
• 4" / 100 mm drum head
• 6" / 150 mm drum head
