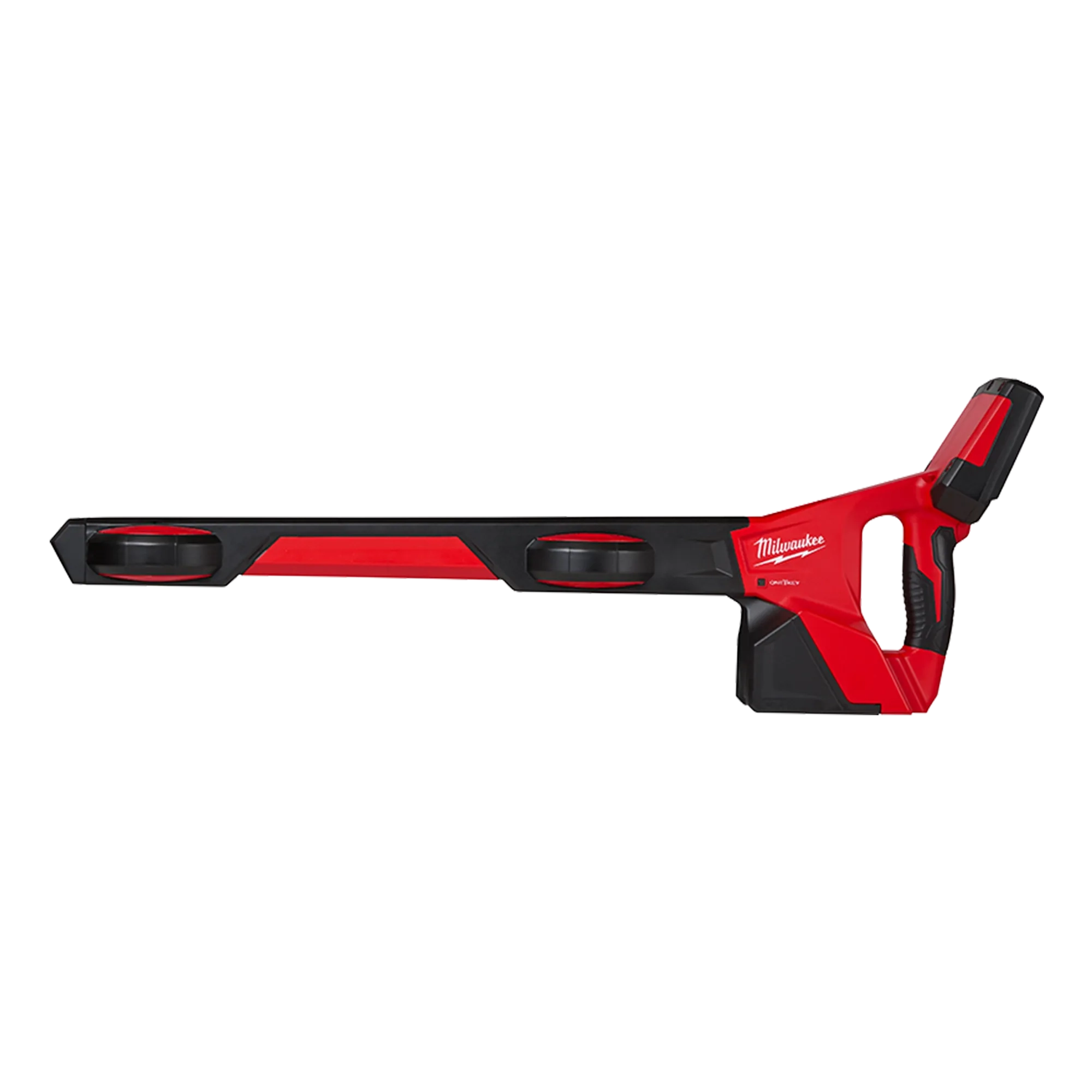

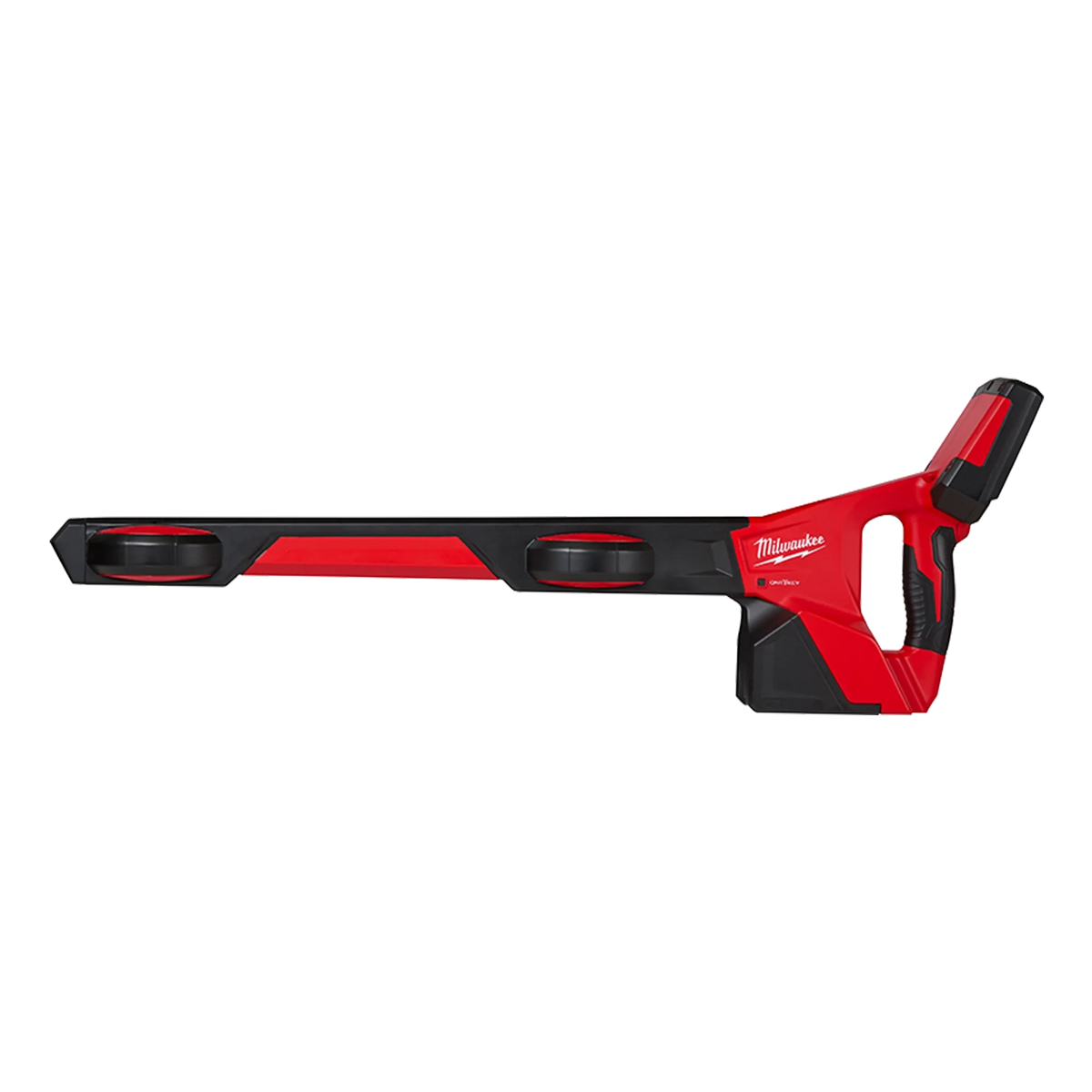

M12™ Pipeline Locator Kit — Sonde & Line Tracing | (Milwaukee 2580-21)

The Milwaukee M12™ Pipeline Locator Kit answers the question every camera inspection ends with: where exactly is that, and how deep? You found the break on video — now you have to mark it on the lawn before anyone digs.

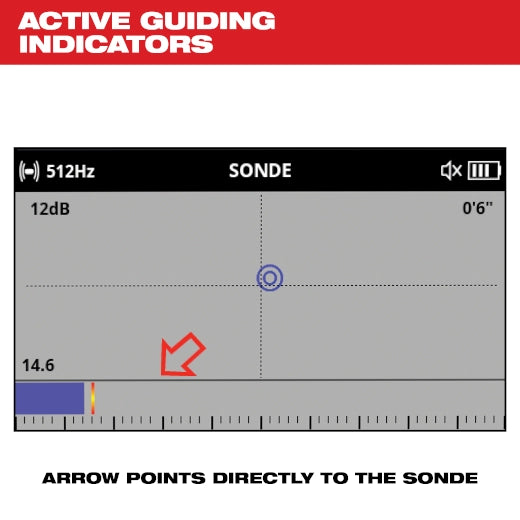

Milwaukee built this one around directional icons instead of a needle and a beep. Arrows on the 4.3" colour screen point you toward the sonde, and a 360-degree guidance arrow orients you the moment you power up — no walking a grid to find your bearings. When you are on top of it, an on-screen sonde icon confirms the exact location.

Line trace mode follows an energized line with a compass icon, so you can map a run rather than just find a point. Two 3D antennas do the locating, a calibration test lets you verify the tool is reading true, and the IP65 rating means a wet trench does not end the job. ONE-KEY™ handles tracking and theft protection.

Key features

• Directional icons eliminate guess-and-check locating
• 4.3" colour LCD, daylight readable for outdoor work
• 360° guidance arrow gives fast, accurate orientation at start-up
• On-screen sonde icon confirms the sonde's exact location
• Line trace mode — compass icon follows an energized line

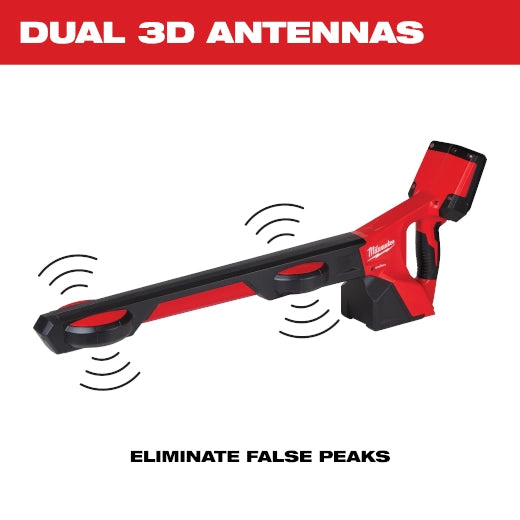

• Two 3D antennas for precise locating
• On-board controls to switch locating modes quickly
• Calibration test monitors the tool's accuracy
• IP65 rated for harsh jobsite conditions
• ONE-KEY™ tracking, security and inventory management

Specifications

• Model: 2580-21
• Display: 4.3" colour LCD, daylight readable
• Antennas: two 3D
• Environmental rating: IP65
• Power: M12™ REDLITHIUM™

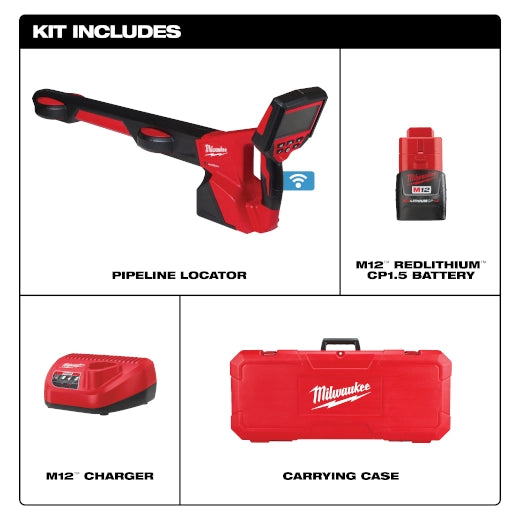

What's included

• M12™ Pipeline Locator (2580-21)
• M12™ REDLITHIUM™ CP1.5 Battery Pack (48-11-2401)
• M12™ Lithium-ion Battery Charger (48-59-2401)

Good to know

This locator pairs with the sonde built into Milwaukee inspection cameras and reels. If you run another brand of camera, confirm the sonde frequency with us before ordering — a locator only finds the frequencies it is built to read.
