IMS Robotics GmbH

IMS NANO E Connection Cutter for 3.0-4.0'' Pipes (DN 70-100)

IMS NANO E Connection Cutter for 3.0-4.0'' Pipes (DN 70-100)

Regular price $0.00 CAD
Regular price Sale price $0.00 CAD
Special Offer Sold out
Shipping calculated at checkout.

NANO E

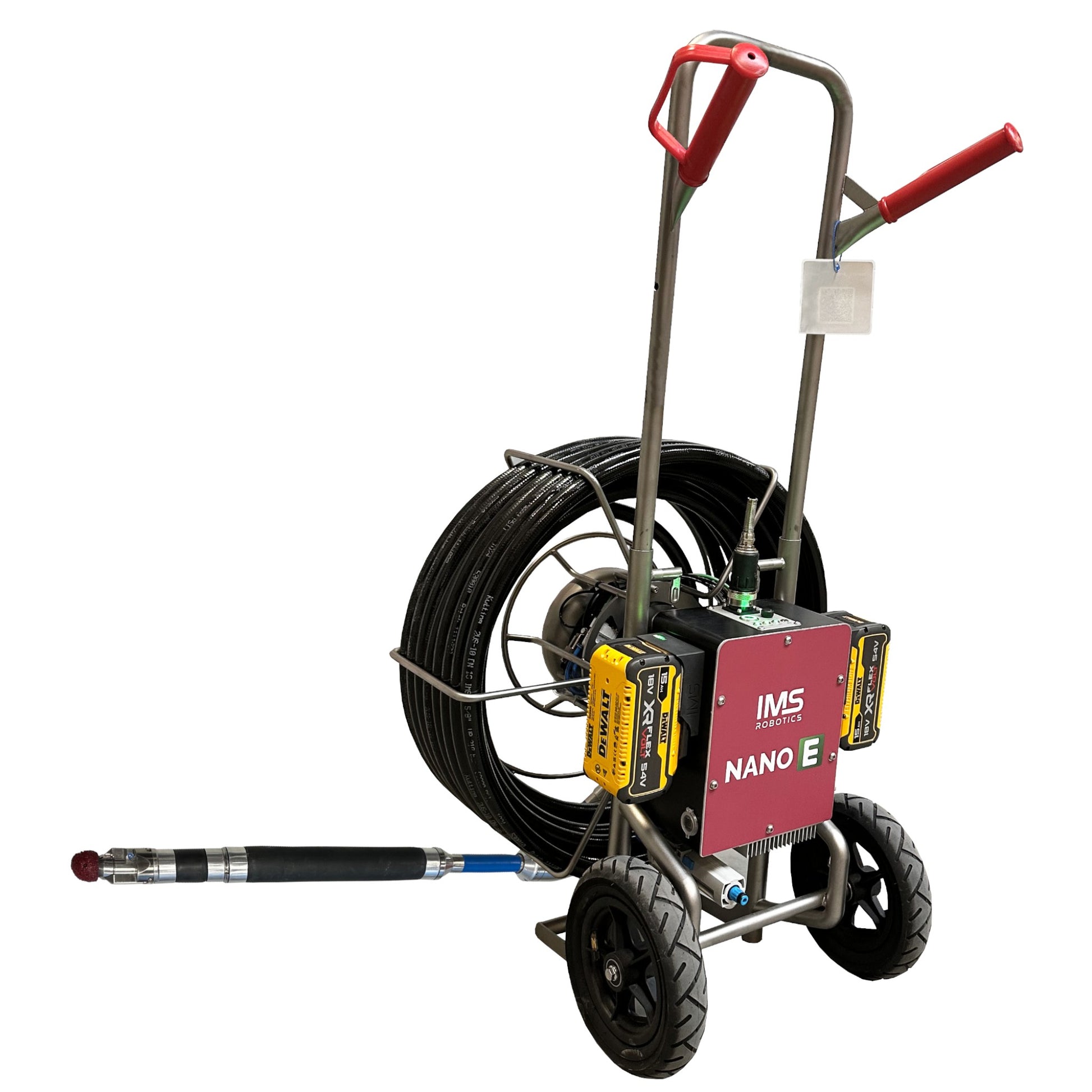

The NANO E is a compact, electrically powered milling robot that has been specially developed for in-house use in small nominal width ranges. With its optimal price-performance ratio, it is particularly suitable for beginners who want to switch from smaller systems to more powerful machines. Thanks to its lightweight and mobile design, the NANO E can be easily transported by just one person - even in the trunk of a car. It can be operated both with exchangeable batteries, which offer an average running time of 3.5 to 4 hours, and in mains operation, which makes it suitable for a wide range of application scenarios. The NANO E is characterized by its outstanding curve capability from DN 75, which even enables milling in difficult 90° bends - even in the liner.
Technical Data
  • Nominal Diameter: Usable in pipes from DN 70 to DN 100 (inner diameter)
  • Components: Milling drive with rotary drive and axial feed or tensioning bladder
  • Milling Drive: Air cooling for milling motor
  • Camera: Integrated color camera with LED lighting / Camera cleaning with permanent air and additional water cleaning
  • Cable Length / Cable Drum: 30 m or 50 m hose package

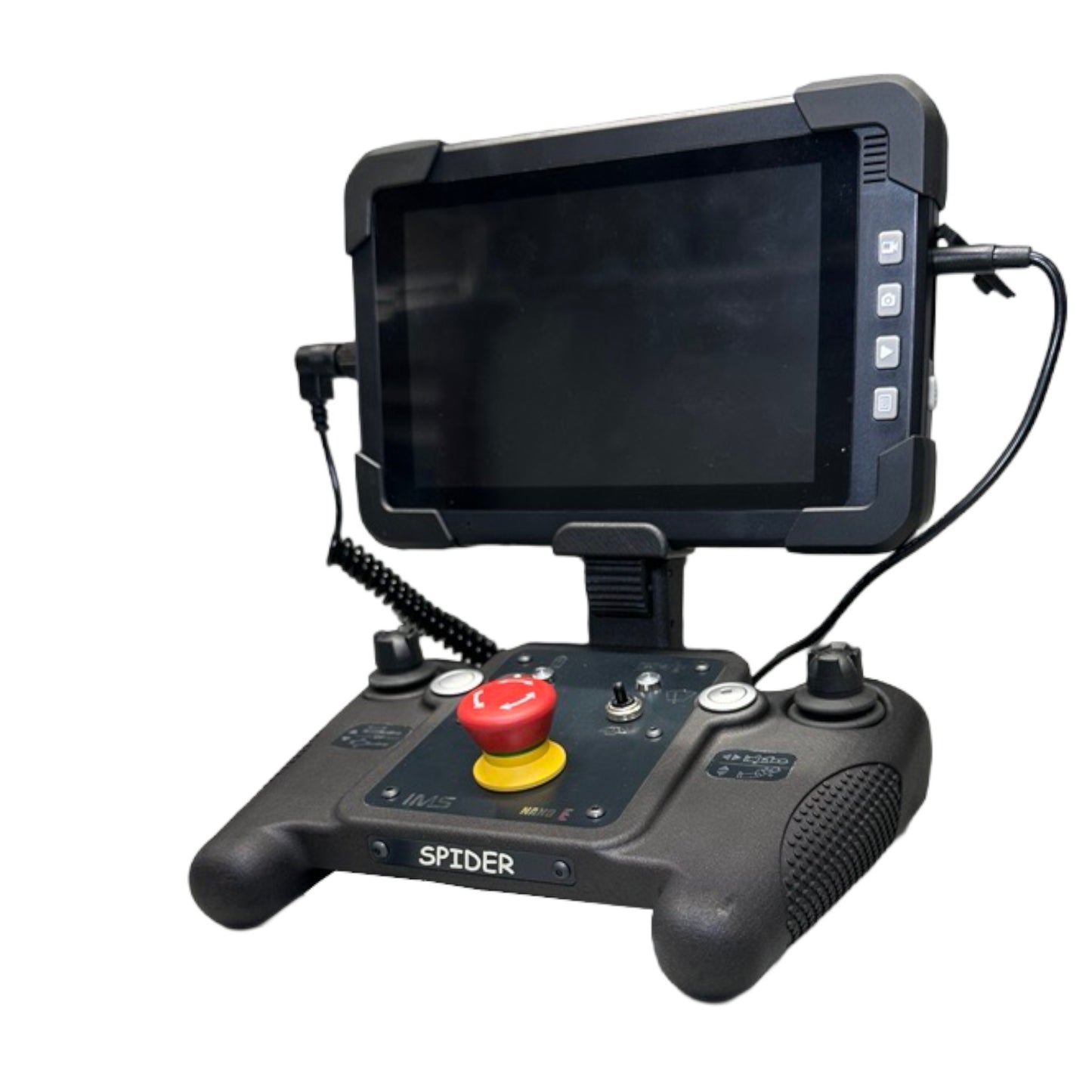

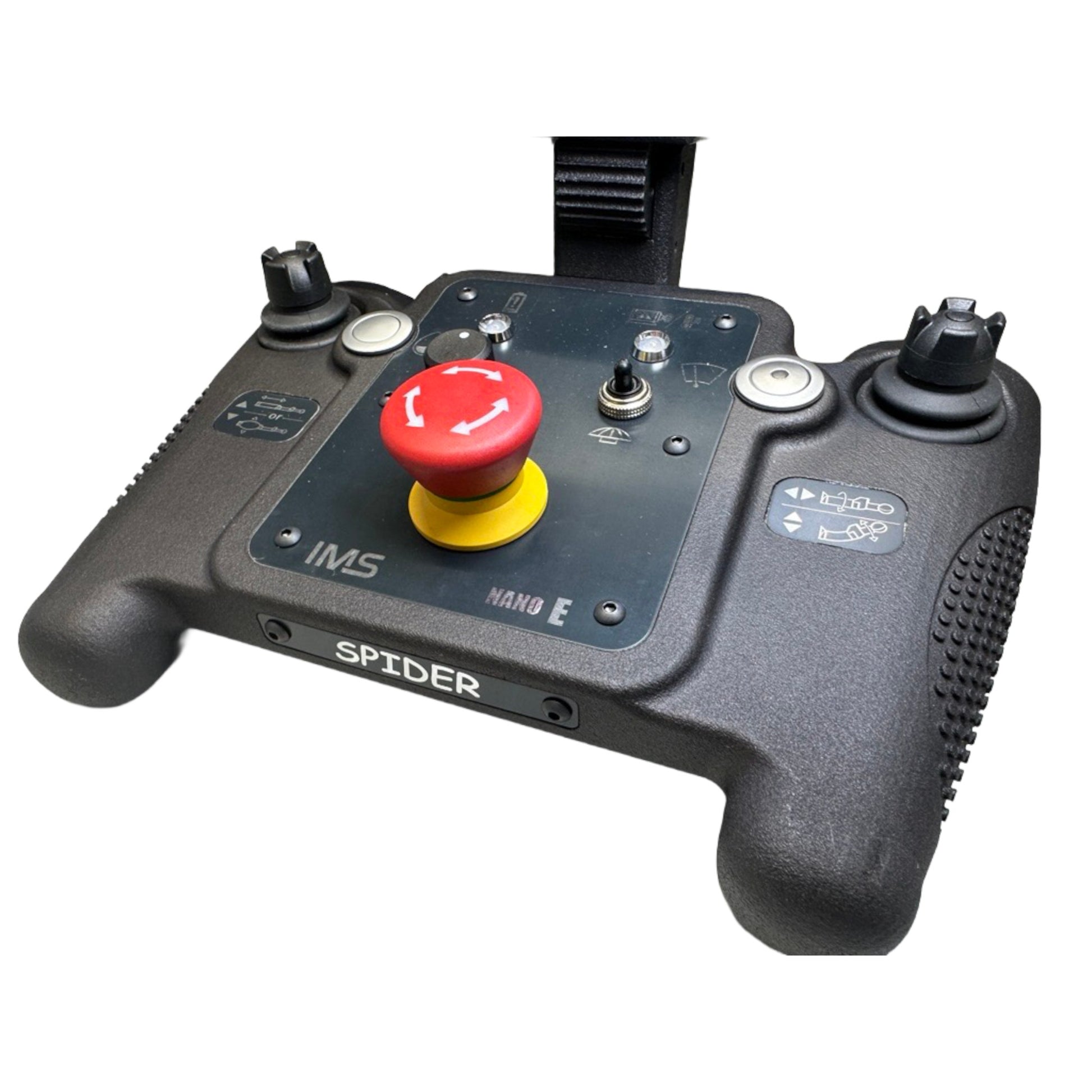

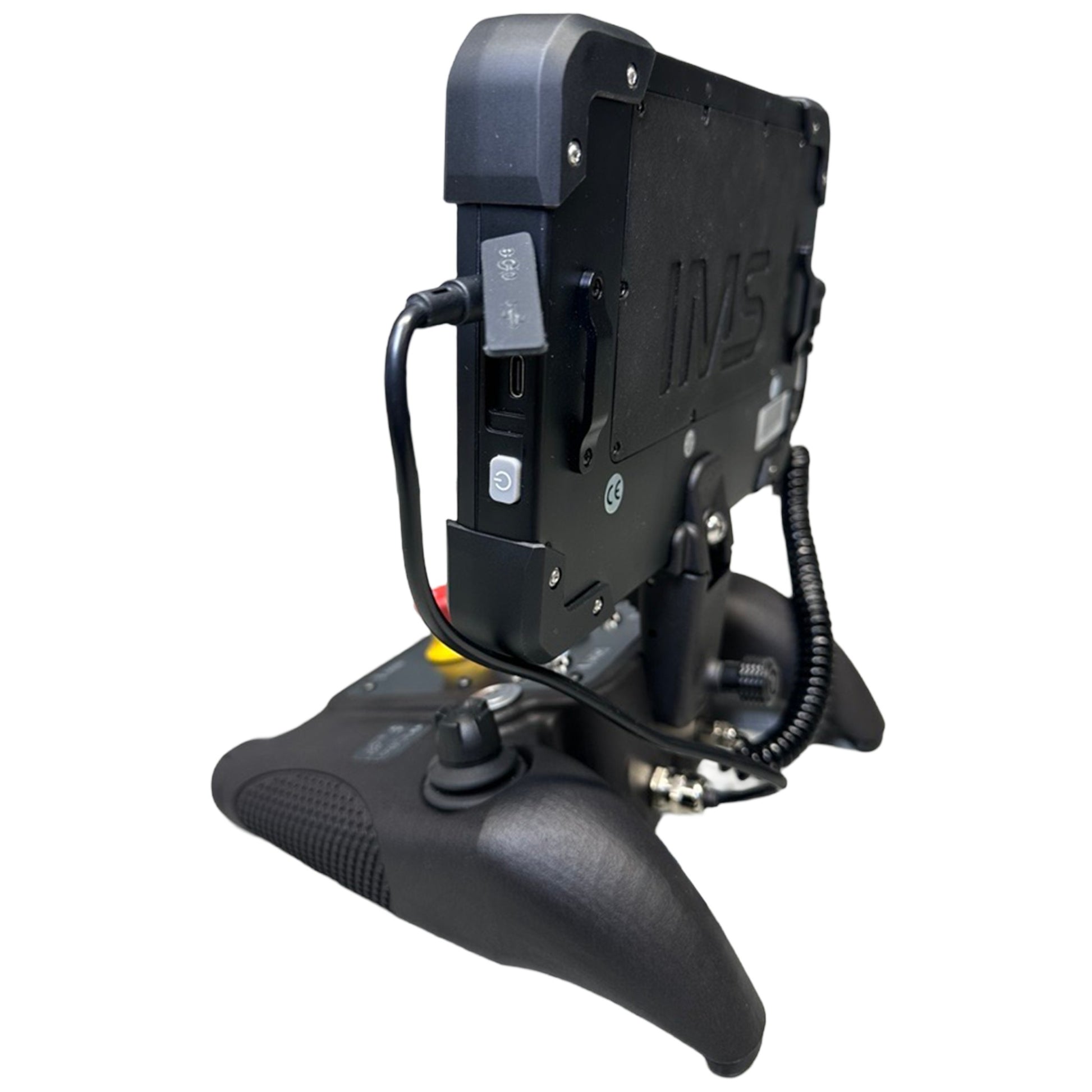

  • Control: Ergonomic control unit
  • Features / Special Features: 90° Bendability in DN 75 / 2x 270 Wh battery power
  • Additional Purchase Options: NANOplus E
