IMS MICRO S Automatic Connection Cutter
IMS MICRO S Automatic Connection Cutter
Couldn't load pickup availability
MICRO S automatic
| Measurements |

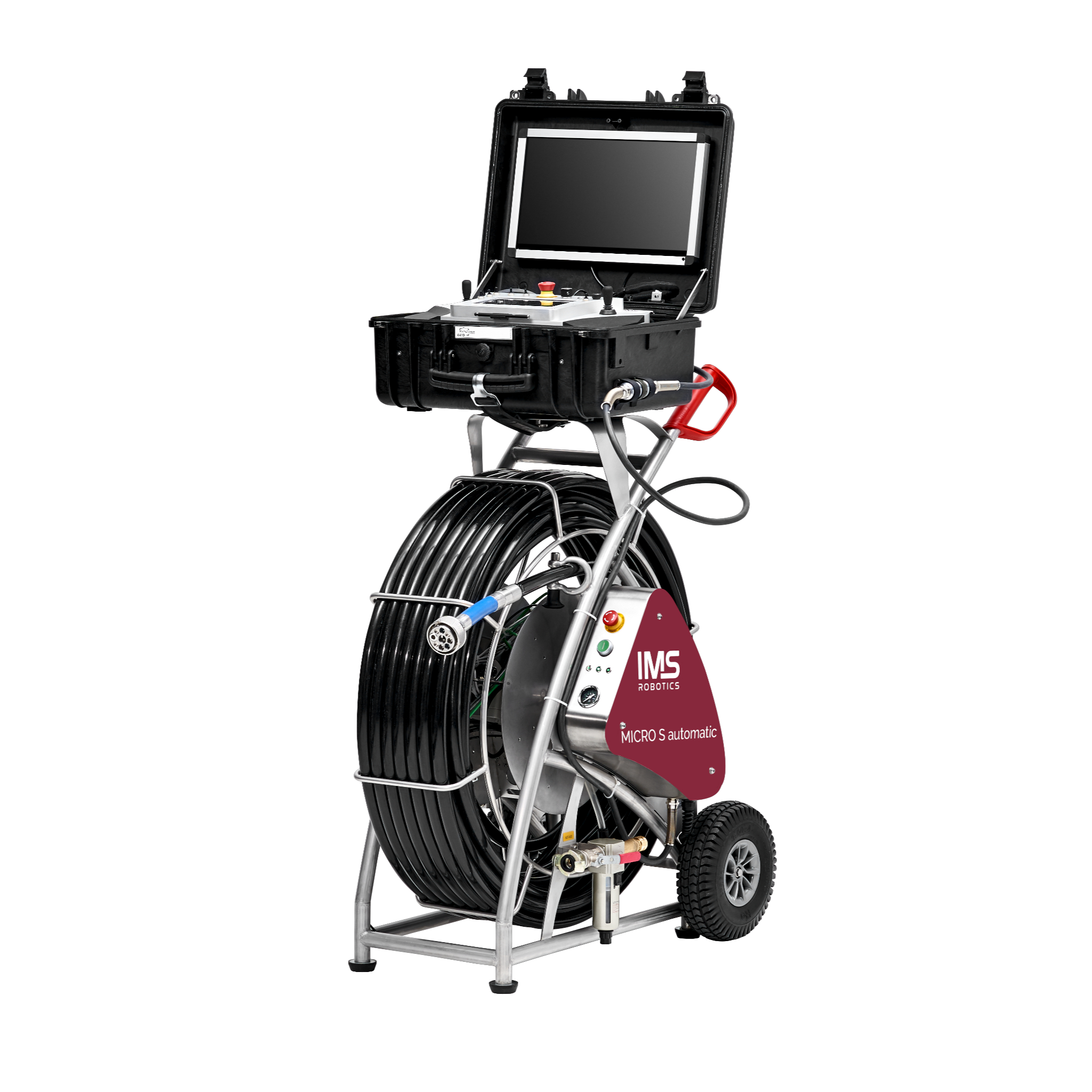

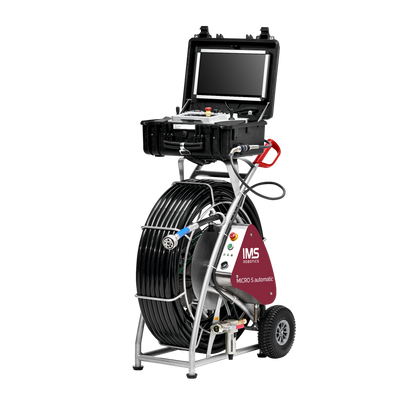

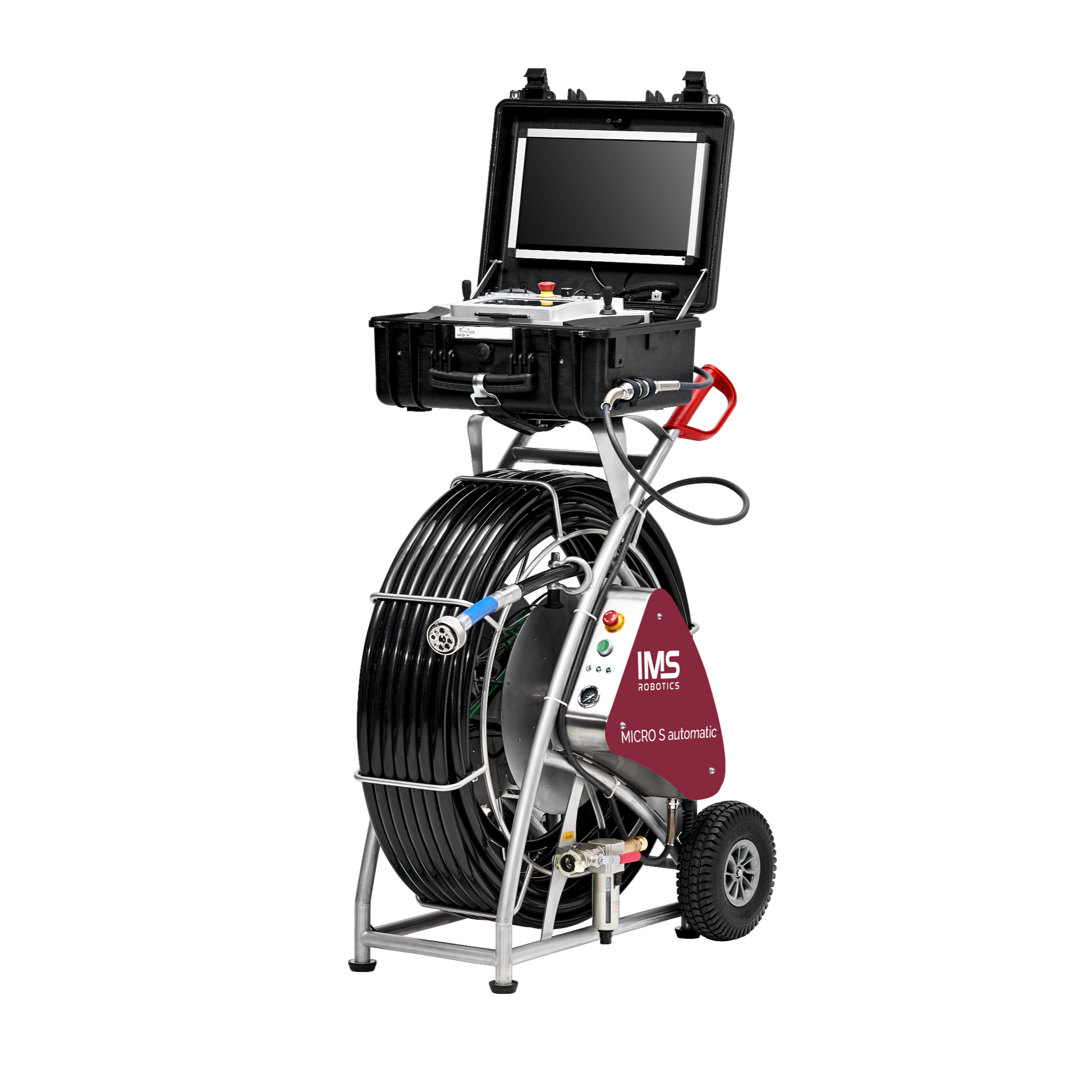

Cable drum: L 850 x W 510 x H 1200 mm / L 33.46 x W 20.08 x H 47.24 inches. |
| Nominal Diameter |
Usable in pipes from DN 75 to DN 250 (inner diameter) |
| Weight |
Cable drum: approximately 70 kg / 154.32 pounds with 50 m / 164.04 feet supply hose length |
| External Diameter Mill |
60 mm / 2.36 inches |
| Components |

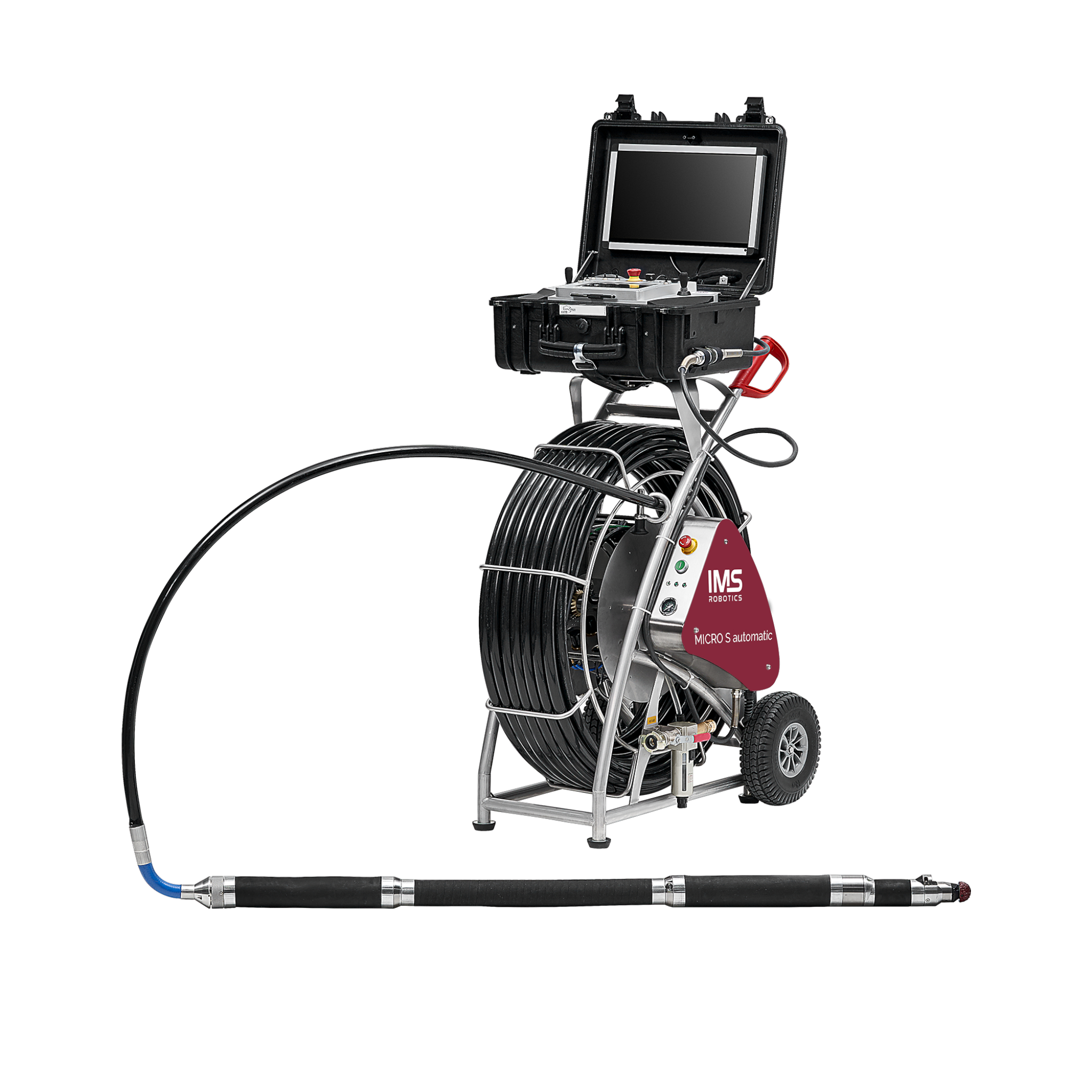

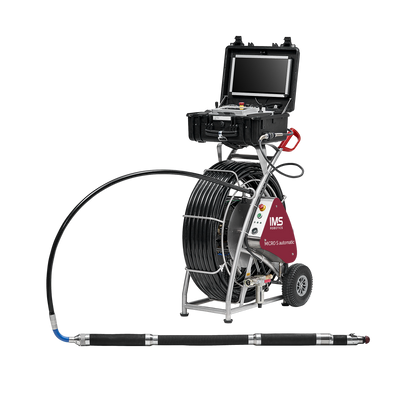

Cutter module, cable drum and control unit |
| Milling Drive |
Air-powered cutting motor |
| Camera |
Colour camera with LED illumination Camera cleaning with permanent air and connectable water (water equipment) |
| Cable Length / Cable Drum |
50 m / 164.04 ft supply hose on cable drum |
| Control |

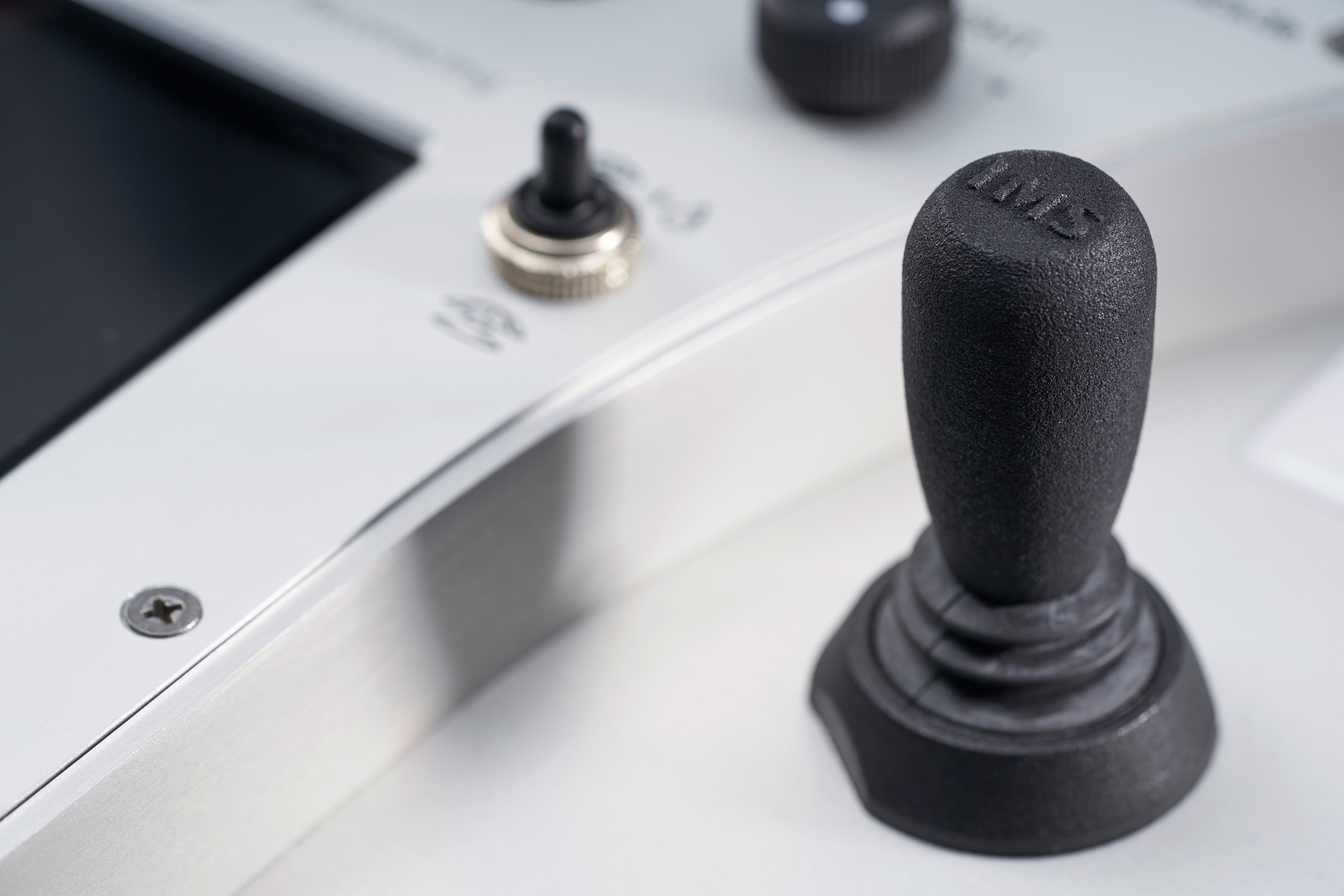

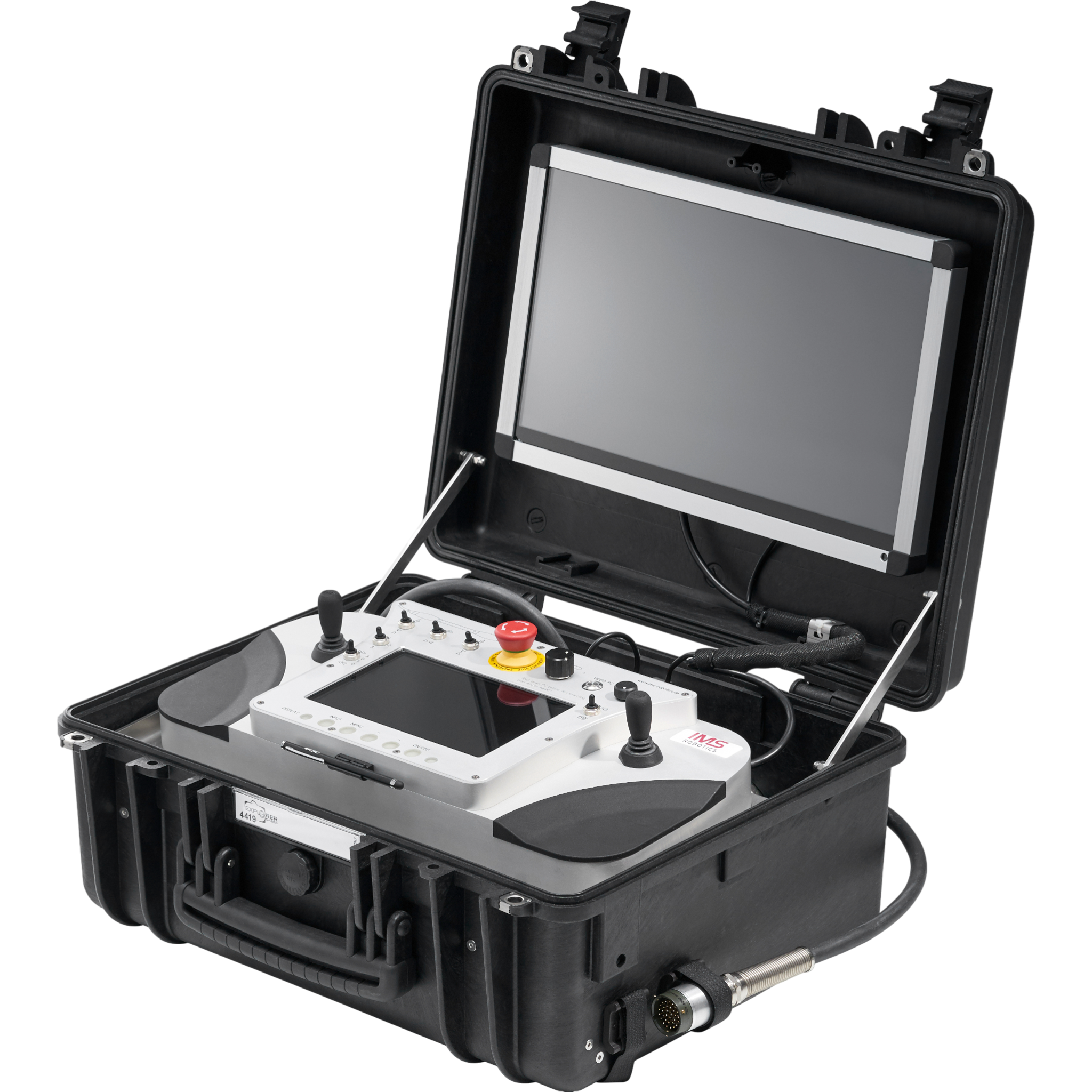

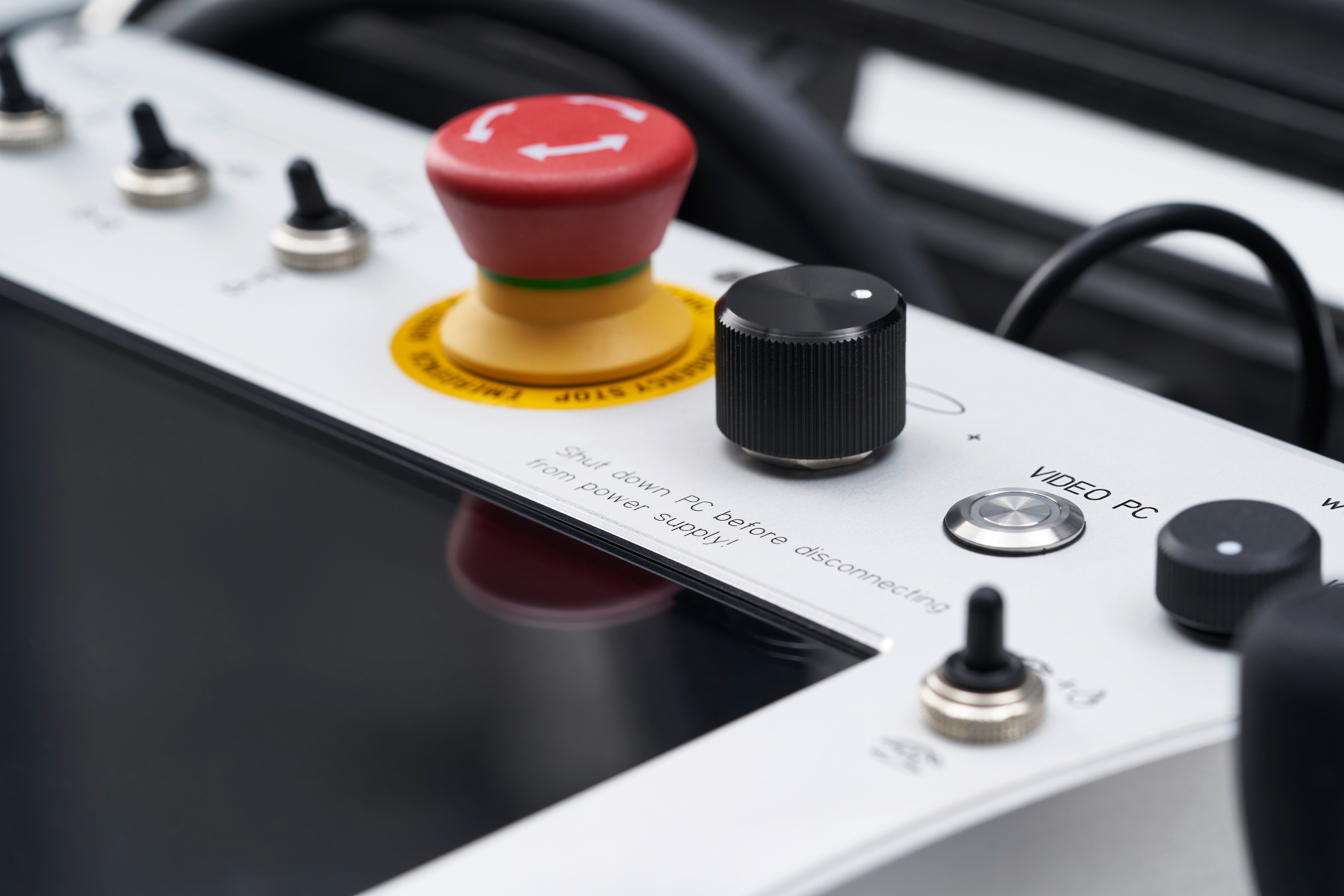

Removable control unit with 2 joysticks in protective case Mini PC and video software |
| Features / Special Features |
Extensions to DN 200 and DN 250 90° flexibility in pipe bends from DN 100 (stoneware pipes, lined pipes without folds or similar) Cutter with two radial bracing bladders Manual or automatic creeping and climbing function with approx. 100 mm axial feed Supply hose with integrated push rod Bayonet connection between supply hose and cutter module Approx. 90° swivel movement cutting head Endless rotation of the cutting head Accessories case |
| Additional Purchase Options |
5 m / 16.4 ft extension cable for control unit (only with new purchase) |
