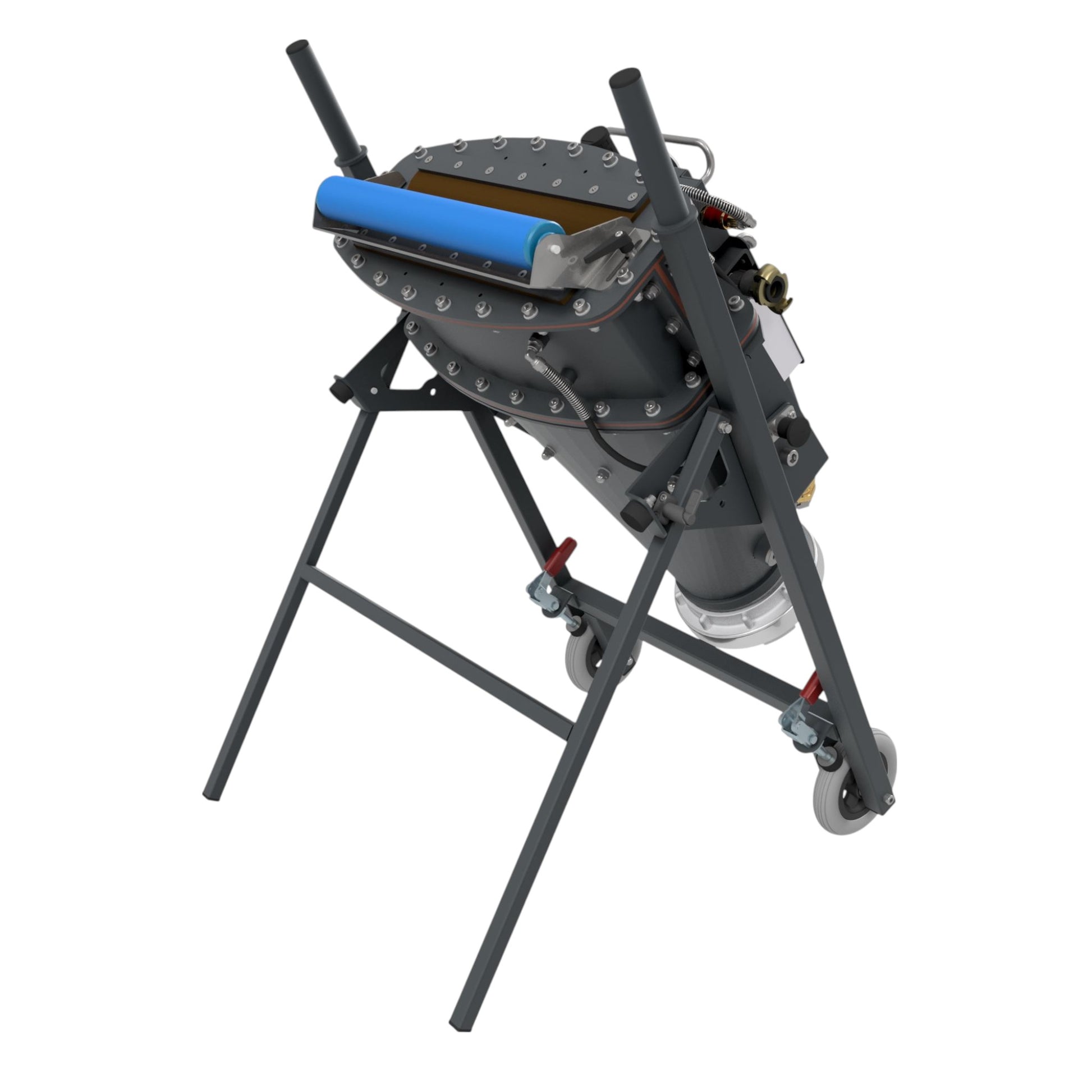

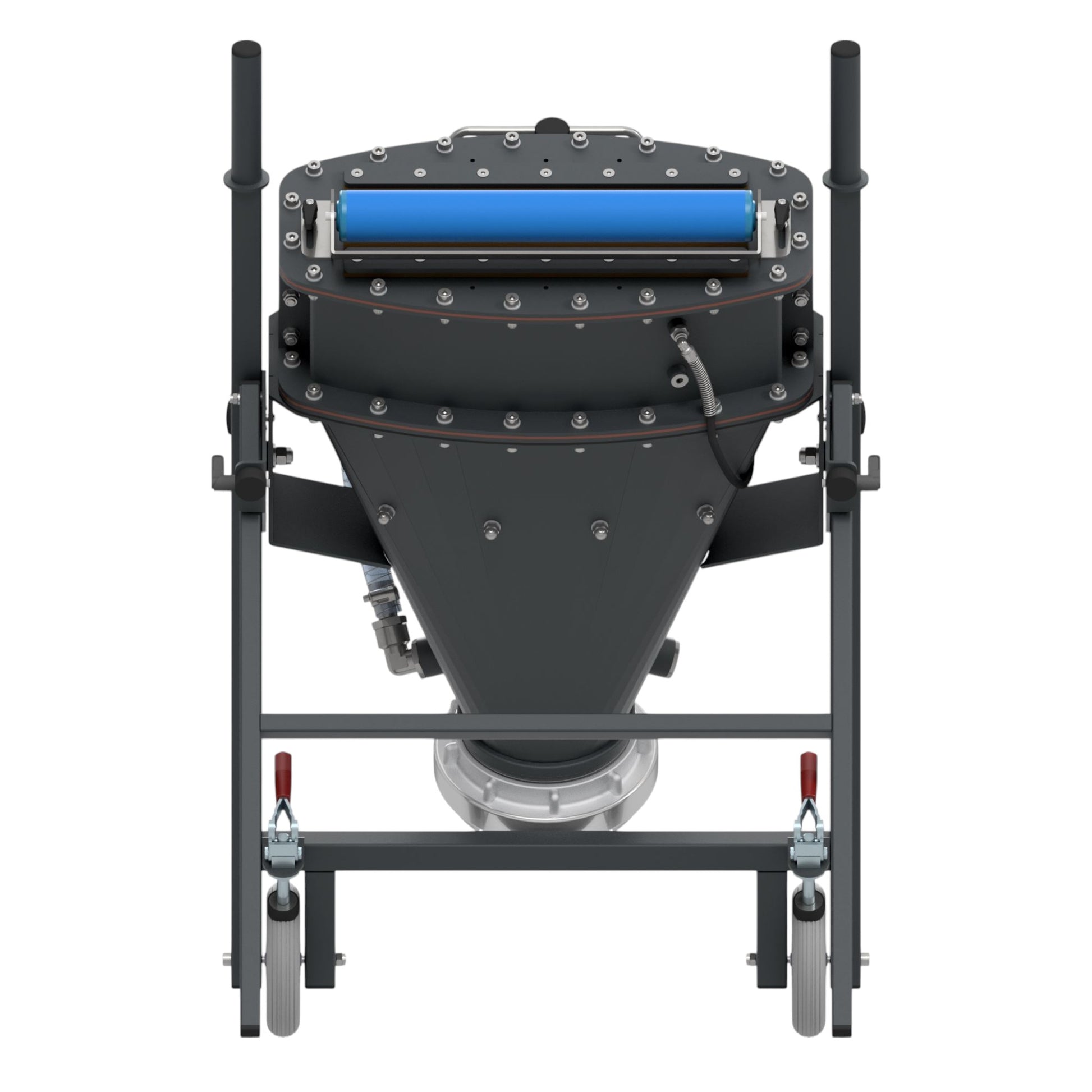

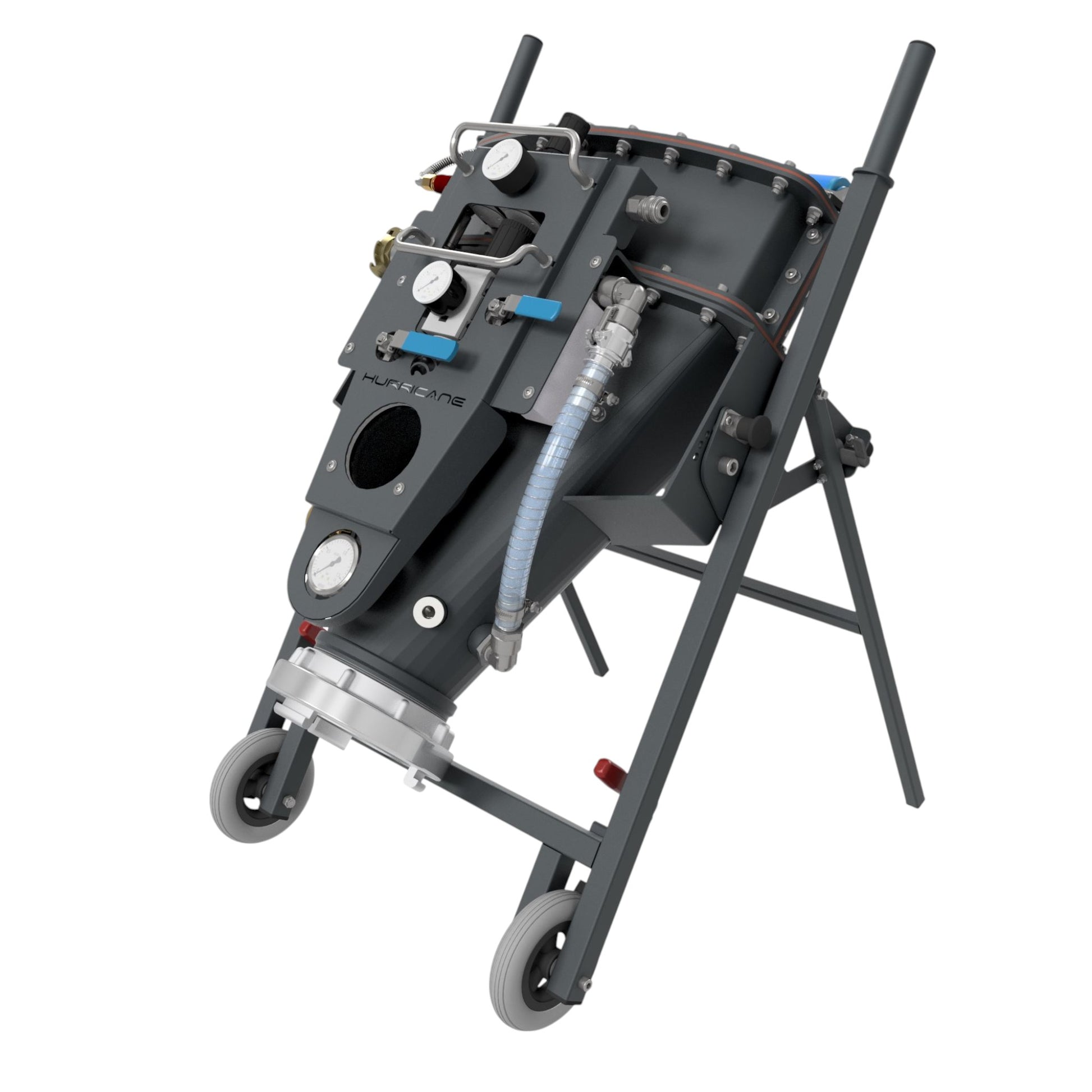

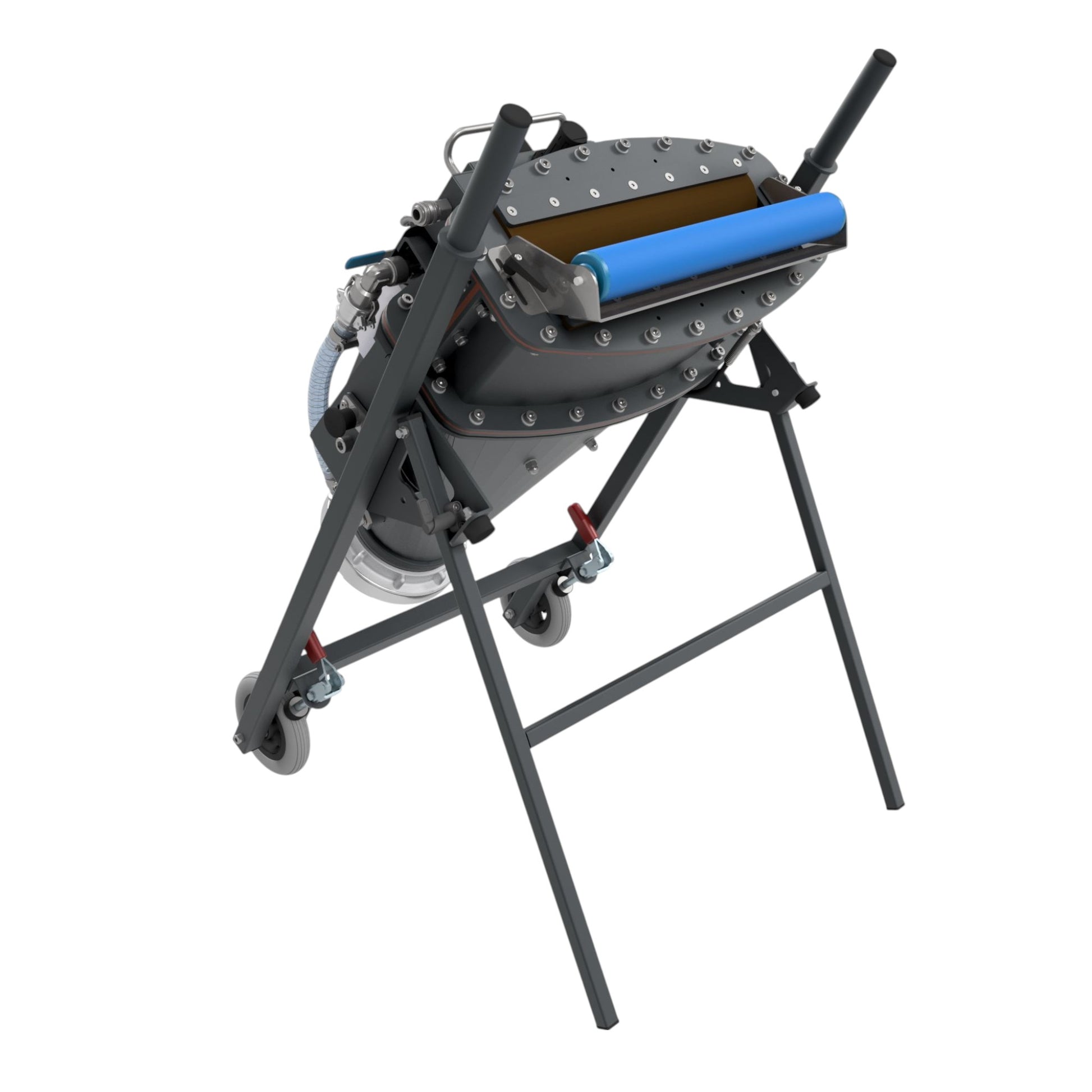

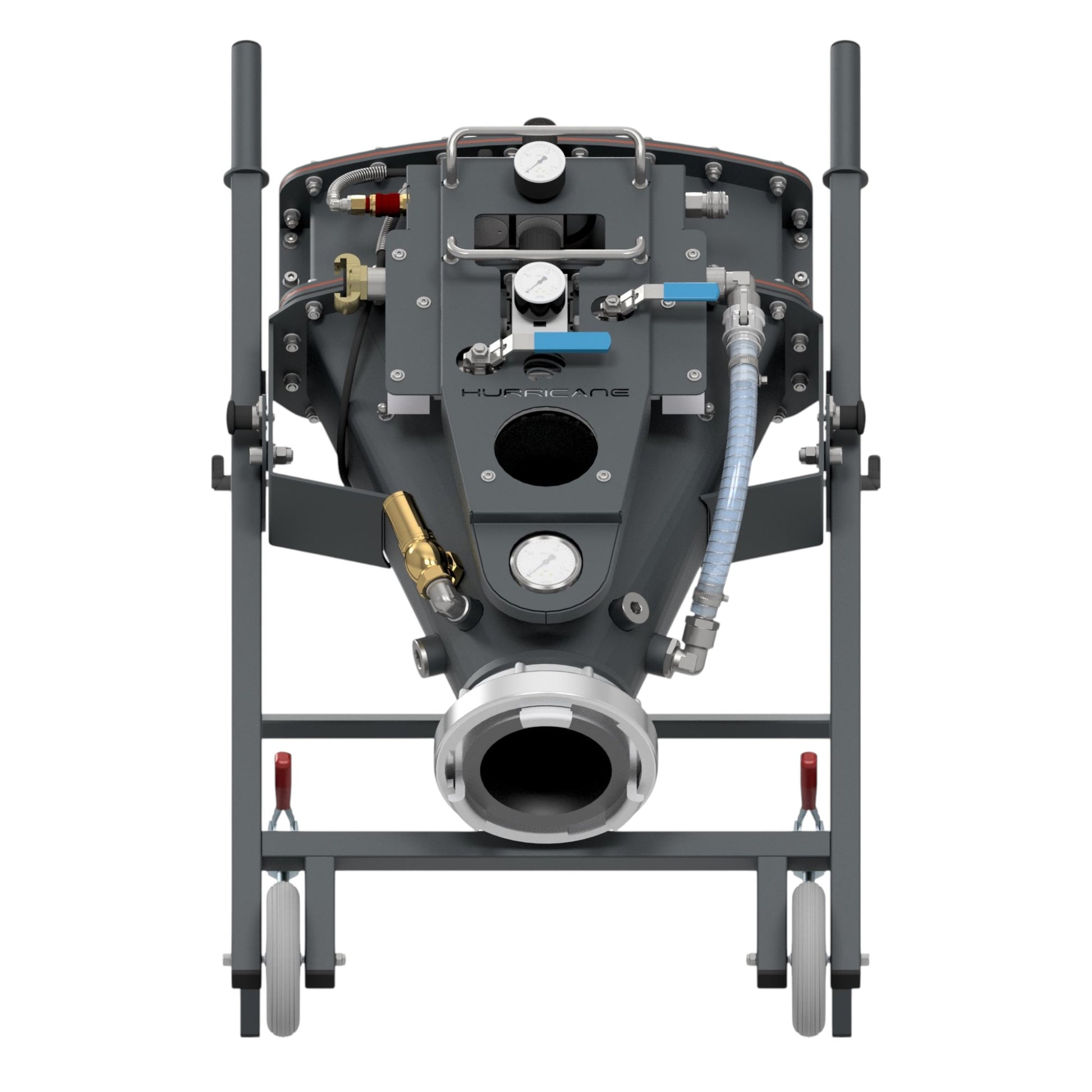

Hurricane Thunder Continuous Shooter 200

Inversion sluice - Relining without length limitation

The Hurricane® Thunder Shooter 200 is used for the inversion of hose liners up to a size of DN 200 without length limitation. The smart compressed air control system ensures smooth insertion of the liner into the pipe. Depending on the characteristics of the liner – size and stiffness of the coating – this process succeeds continuously. This means in one operation, in a 2-stroke process using an integrated sealing chamber.

FEATURES AND DETAILS

• Chambers: 1
• SIZE (WxLxH): 617 x 785 x 952 mm
• Control window: Ø 150 MM
• Connection: 8“ Storz /Camlock
• Max pressure: 1,5 bar
• Max. Liner LENGHT: DN 100 - DN 200 = ∞
