Hathorn H7 Camera System with WI-FI and Line Trace for 3.0'' to 10.0'' pipes

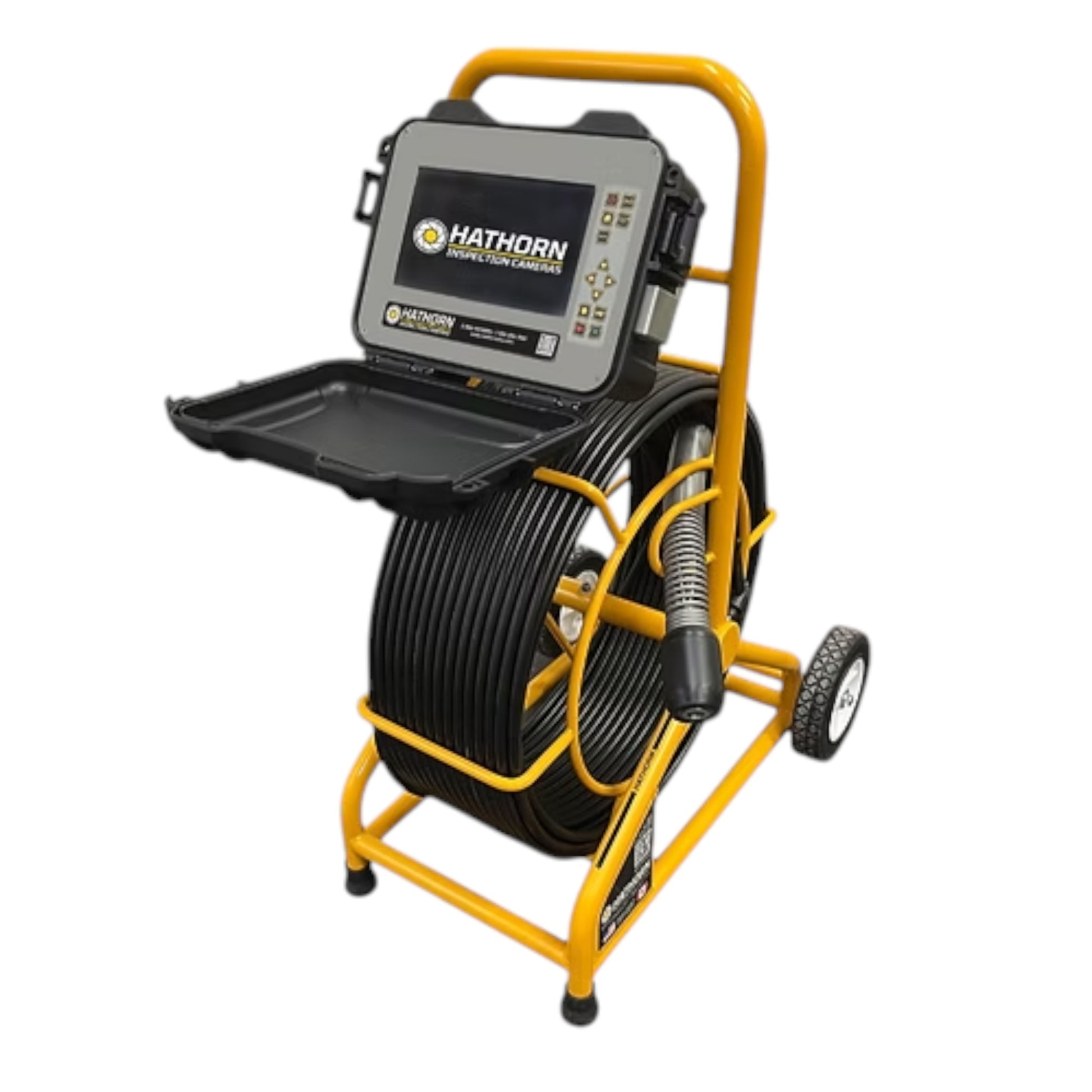

Hathorn H7 Camera System

Hathorn® H7 systems come standard with a 7” daylight-readable, shatter-resistant LCD monitor delivering 1,000 cd/m² of brightness, making it the brightest monitor in its class.

Now standard with built-in Wi-Fi and line trace capabilities, the H7 features an onboard 64GB hard drive and USB recording, allowing users to capture MPEG4 videos and JPEG screenshots with ease. The H7 is a complete inspection system available with your choice of rugged Hathorn camera head and push rod configuration to suit a wide range of applications.

Compatible with Milwaukee® 18V batteries (or equivalent), the H7 delivers ultimate portability and more than 5 hours of runtime on a single charge. Weighing only 45 lbs., these lightweight systems are easy to transport and maneuver in the field.

All H7 systems include a footage counter, integrated 512Hz sonde, 200 ft. of premium cable, and your choice of camera head and push rod. Built for demanding environments, these rugged units feature butt-welded steel frame construction along with military-grade faceplates and connectors for maximum durability.

Specifications

Display

• Size & Display: 7" (17.8cm) impact-resistant, daylight-readable LCD
• Resolution & Brightness: 1024 x 600 pixels with 1,000 cd/m2

Recording, Storage & Features

• Recording Options: MPEG4 video (H.264 at 30 fps) & JPEG screen-shot
• Storage Options: USB, HDD or USB & HDD
• USB Capacity: USB 2.0 up to 32Gb
• Hard Drive Capacity : 64Gb (standard) or 128Gb (upgrade)
• Menu Languages: English, Spanish, French
• Footage Counter: Feet or meters - resettable
• Sonde Frequencies: High power 512Hz or 640Hz
• Push Rod: 200 ft. of HDPE push rod with fiberglass core

Power

• Battery (not incl.): Only Milwaukee® M18 18V or equivalent
• Battery Life~5Hrs. using 3.0Ah
• Battery Extender: Auto dimming & auto saving
• AC/DC Adapter: 12V - 4.1A (included)


Environmental

• Water Resistance: IP65
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)


Weight & Dimensions

• Weight without Battery: 45lb (20.4Kg)
• Dimensions (L x W x H): 19” x 15.5” x 29.5” (48cm x 39cm x 75cm)
