Hathorn

Hathorn H12+ 12.0'' Monitor

Hathorn H12+ 12.0'' Monitor

SKU:H12WFEHD

Model
Expanded 512Gb Hard Drive Option
Wi-Fi Streaming (H12+ only) Option
Regular price $5,350.00 CAD
Regular price Sale price $5,350.00 CAD
Special Offer Sold out
Shipping calculated at checkout.

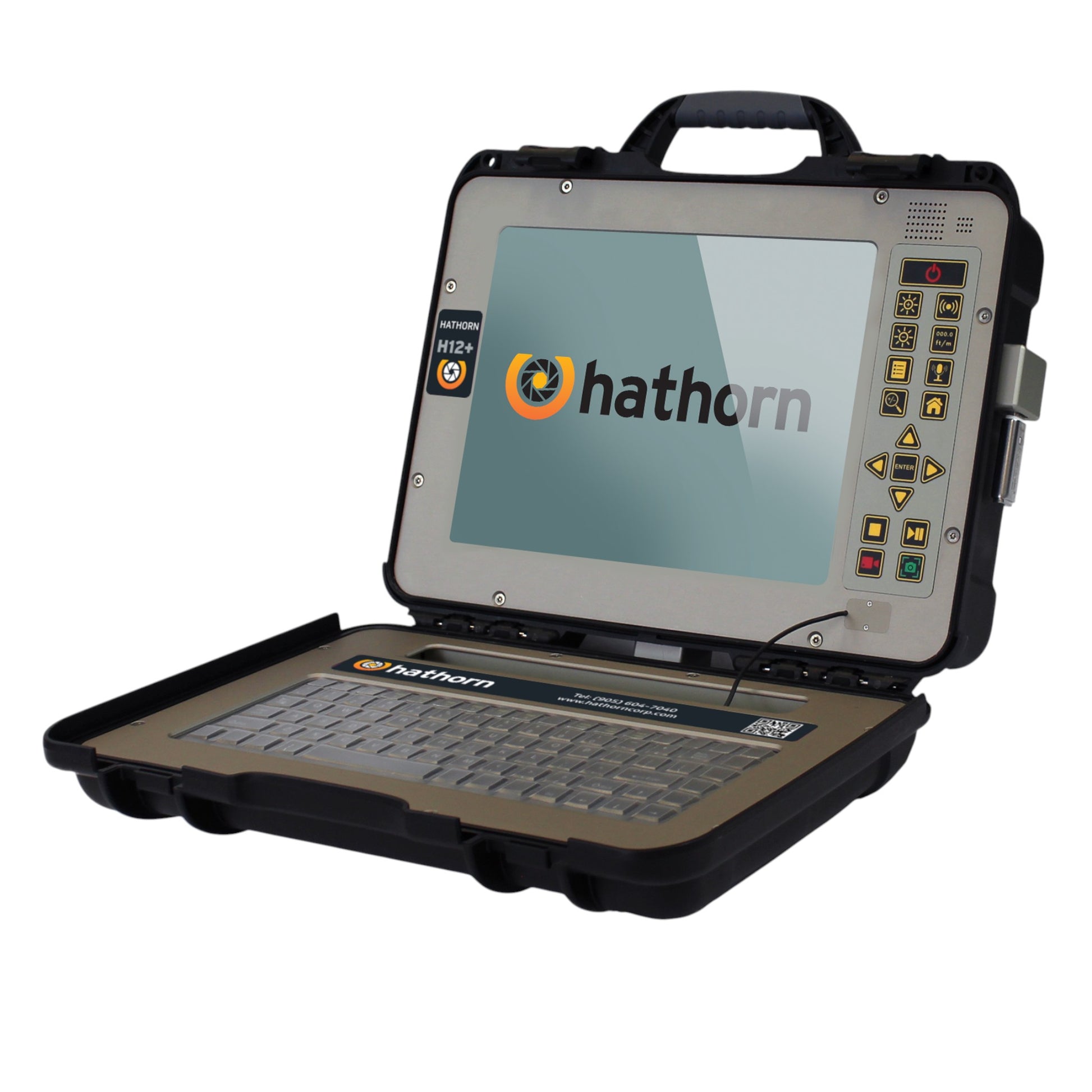

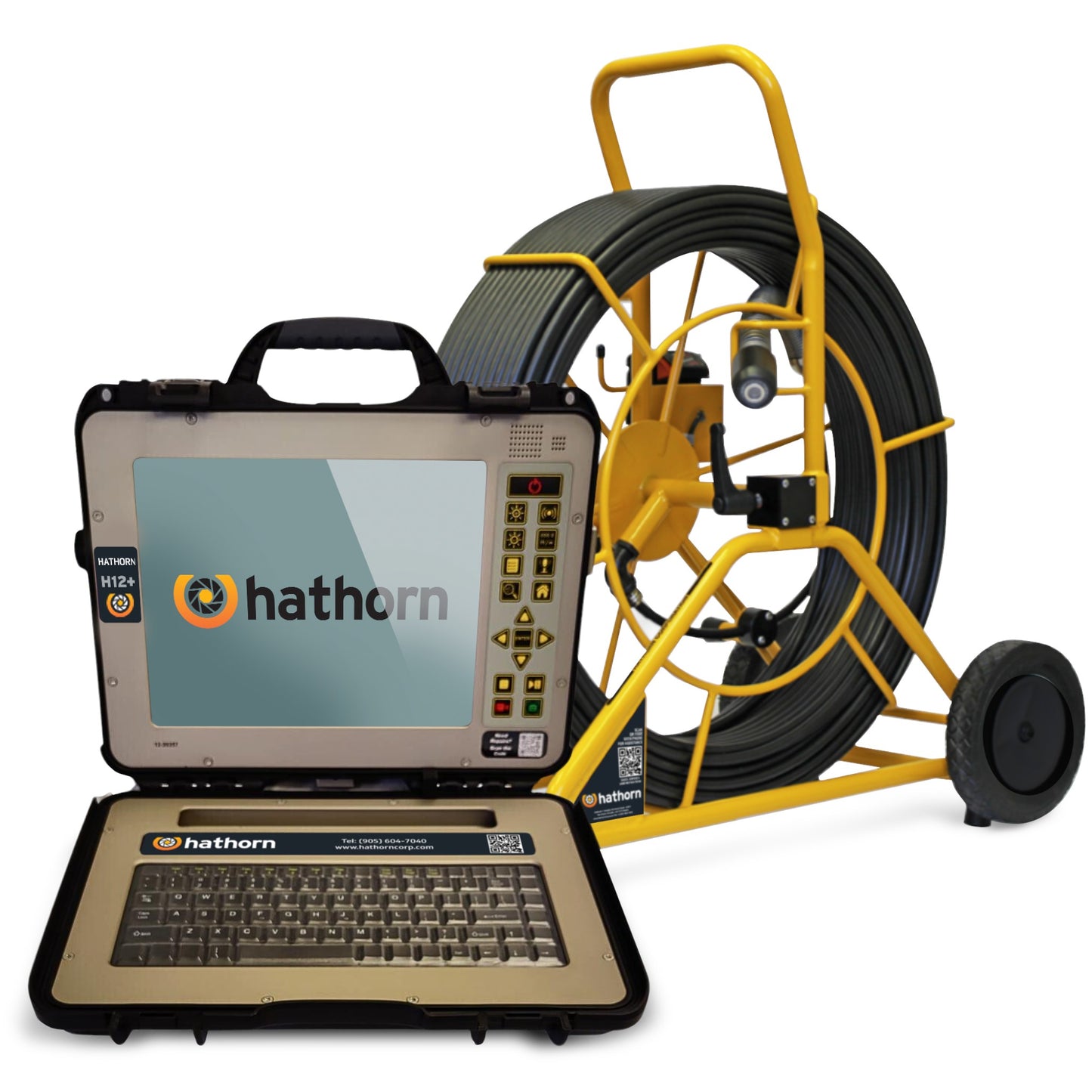

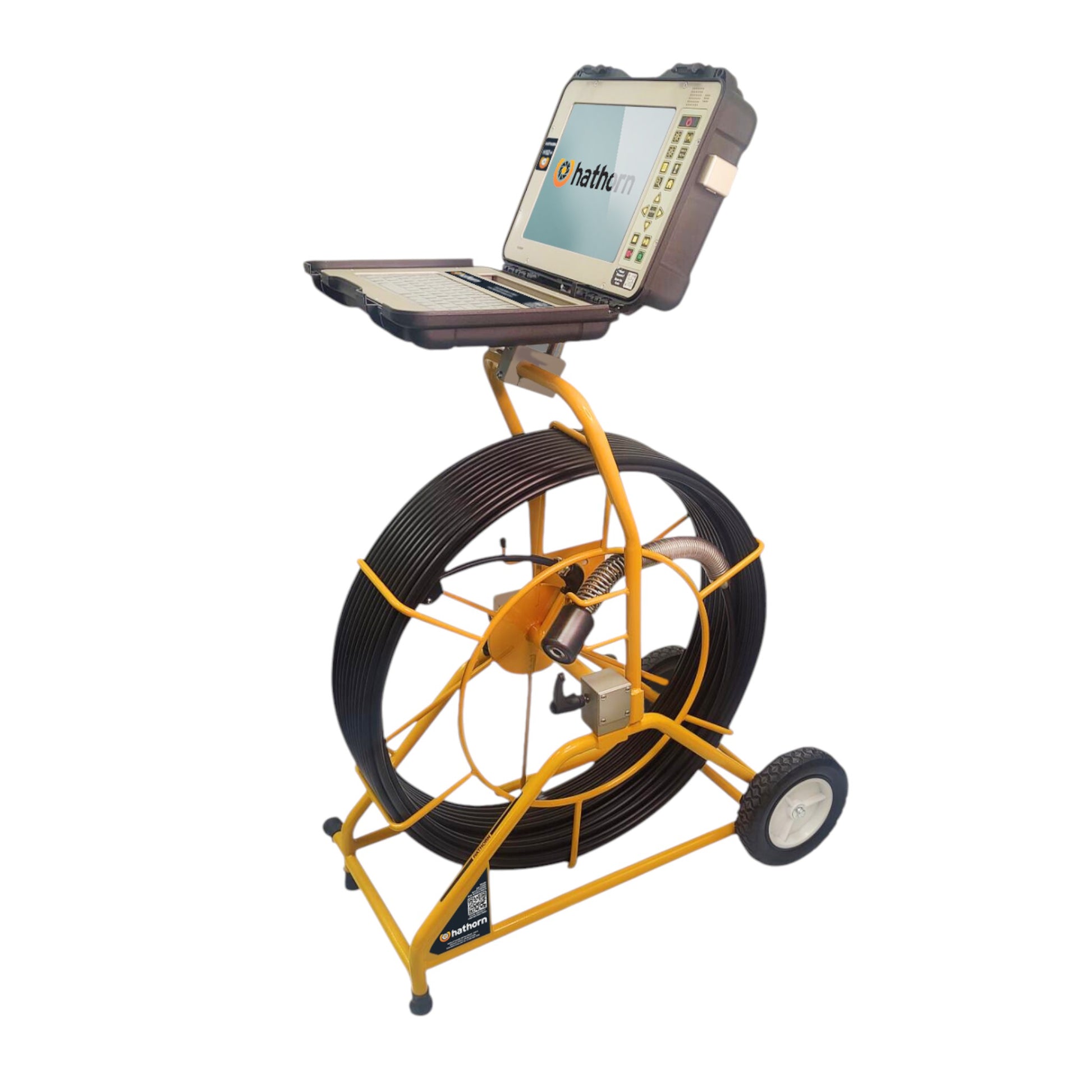

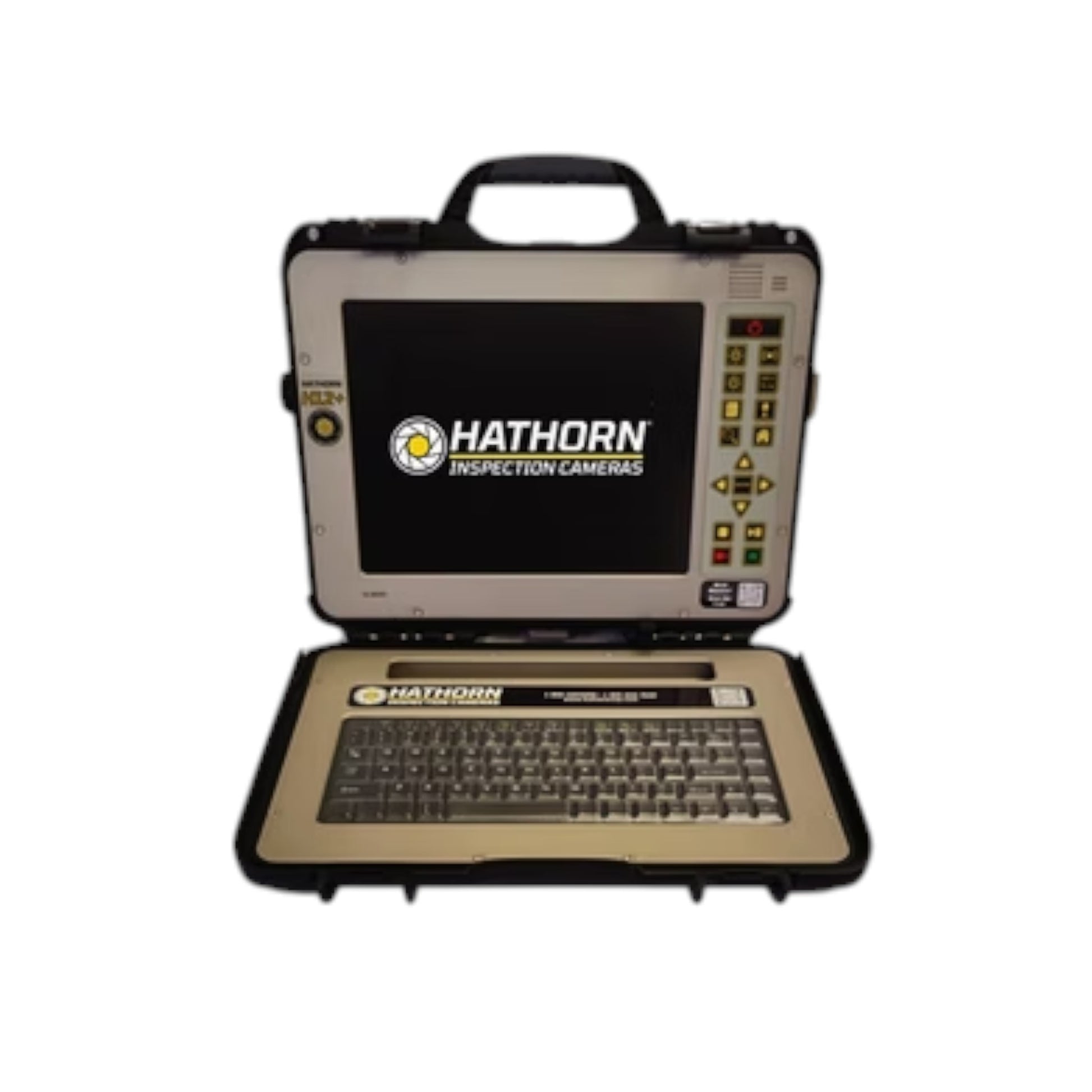

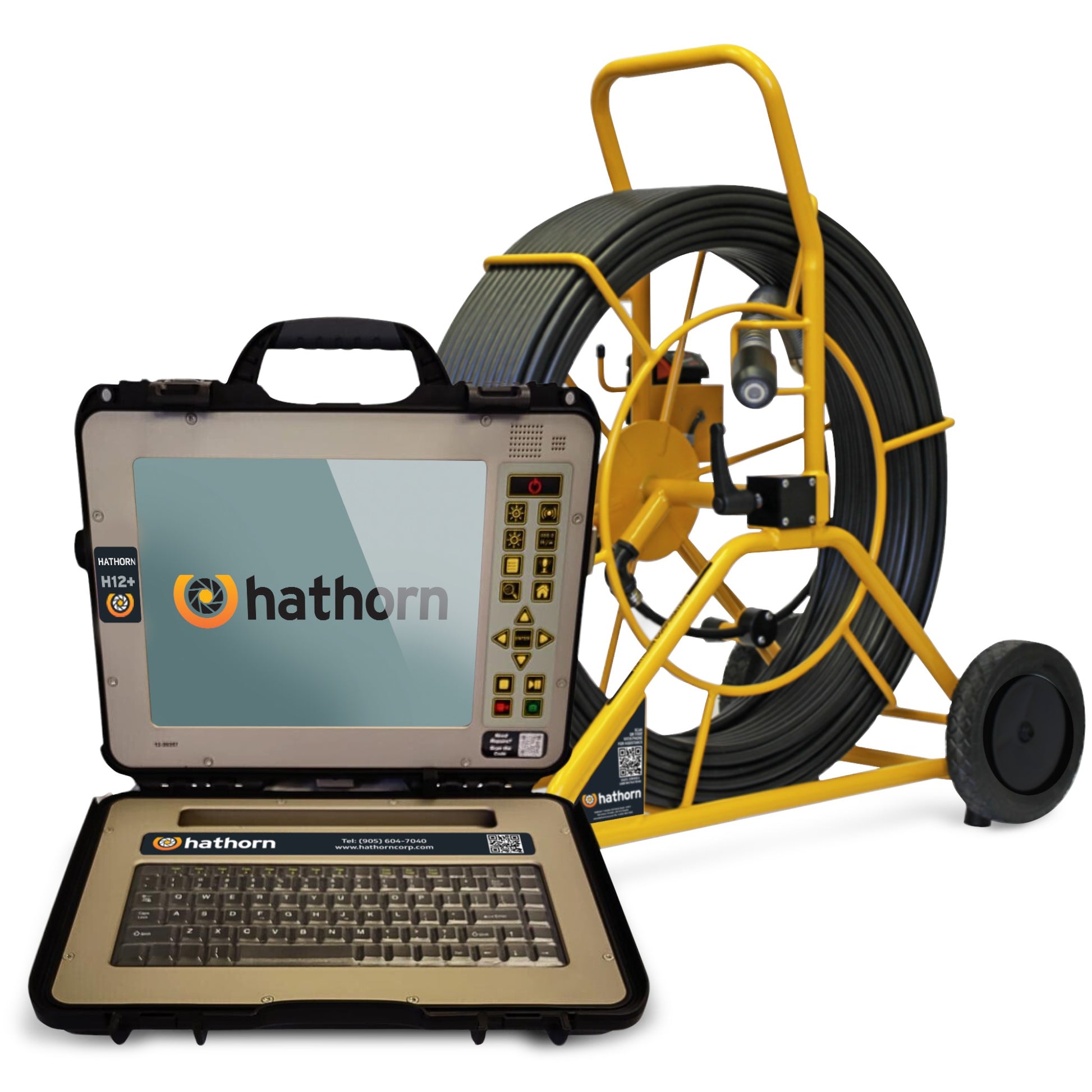

Hathorn H12+ Monitor

The Hathorn® H12+ is in a class of its own with thebrightest daylight-readable 12” LCD screen in the industry. It has almost three times the brightness of the leading brand providing stunning picture quality, high contrast and 8X digital “pan & zoom” technology revealing details missed by other pipe inspection cameras.


Available with Wi-Fi as an option, the H12+ has menus in three languages (English, French and Spanish), compatibility with all Hathorn reels past, present and future from 100 - 600ft., unique on-screen job information bar and text overlay features, two sonde frequencies (512Hz & 640Hz) and industry-leading on-board file storage.

The H12+ comes standard with a 128Gb hard drive which is upgradeable to 512Gb allowing the user to save MPEG videos and JPEG screen shots to either the HDD or to a USB stick.
Powered by 18V Milwaukee® (or equivalent) batteries, the H12+ will run for over 4 hours on
a single charge. Batteries sold separately.

Specifications

Display

  • Size & Display: 12” (30.7cm) impact-resistant LCD
  • Resolution & Brightness: XGA 1024 x 768 pixels with 1,300 cd/m2
  • Zoom: 1X, 2X, 4X, 8X with digital zoom feature


Recording, Storage & Features

  • Recording Options: MPEG4 video (H.264 at 30 fps) & JPEG screen-shot
  • Storage Options: USB, HDD or USB & HDD
  • USB Capacity USB 2.0 up to 32Gb
  • Hard Drive Capacity: 128Gb (standard) or 512Gb (upgrade)
  • Keyboard: Full-sized QWERTY with silicone cover
  • Camera Head LED: Dimming control 5% increments
  • Hathorn Info Bar: 74 characters over 2 lines with time/date
  • Text Overlay: English, Spanish, French
  • Menu Languages: Integrated microphone and speaker
  • Footage Counter: Feet or meters with reset function
  • Sonde Frequencies: High power 512Hz or 640Hz
  • Reel Compatibility: All Hathorn reels (except Wi-Fi)

Power

  • Battery (not incl.): Only Milwaukee® M18 18V or equivalent
  • Battery Life -4Hrs. using 3.0Ah
  • Battery Extender: Auto dimming & auto saving
  • AC/DC Adapter: 12V-4.1A (included)

Weight & Dimensions

  •
    Weight without Battery: 9.5lb (4.3Kg)
  • Dimensions (L x W x H): -15” x 12” x 5.5” (38cm x 30cm x 14cm)
