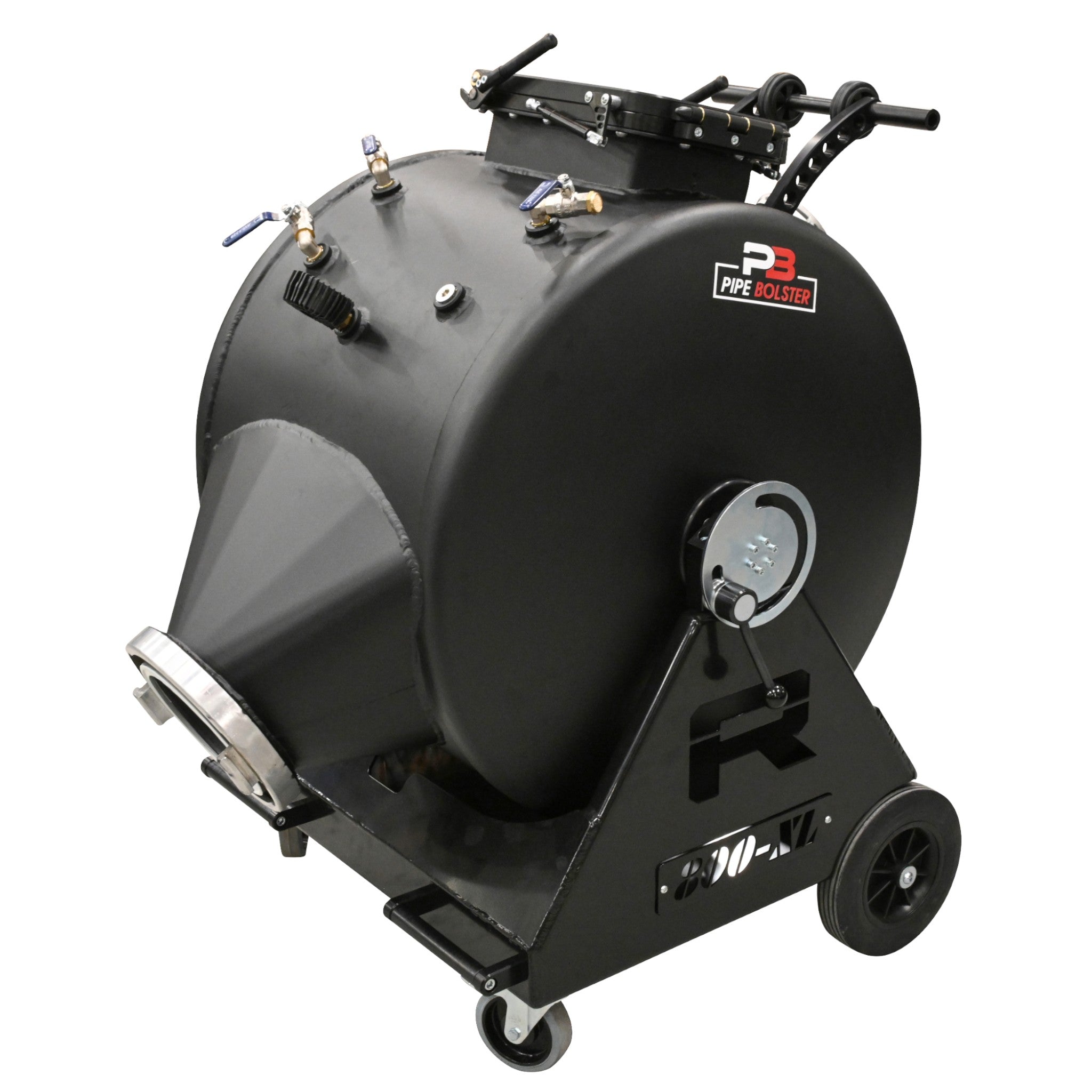

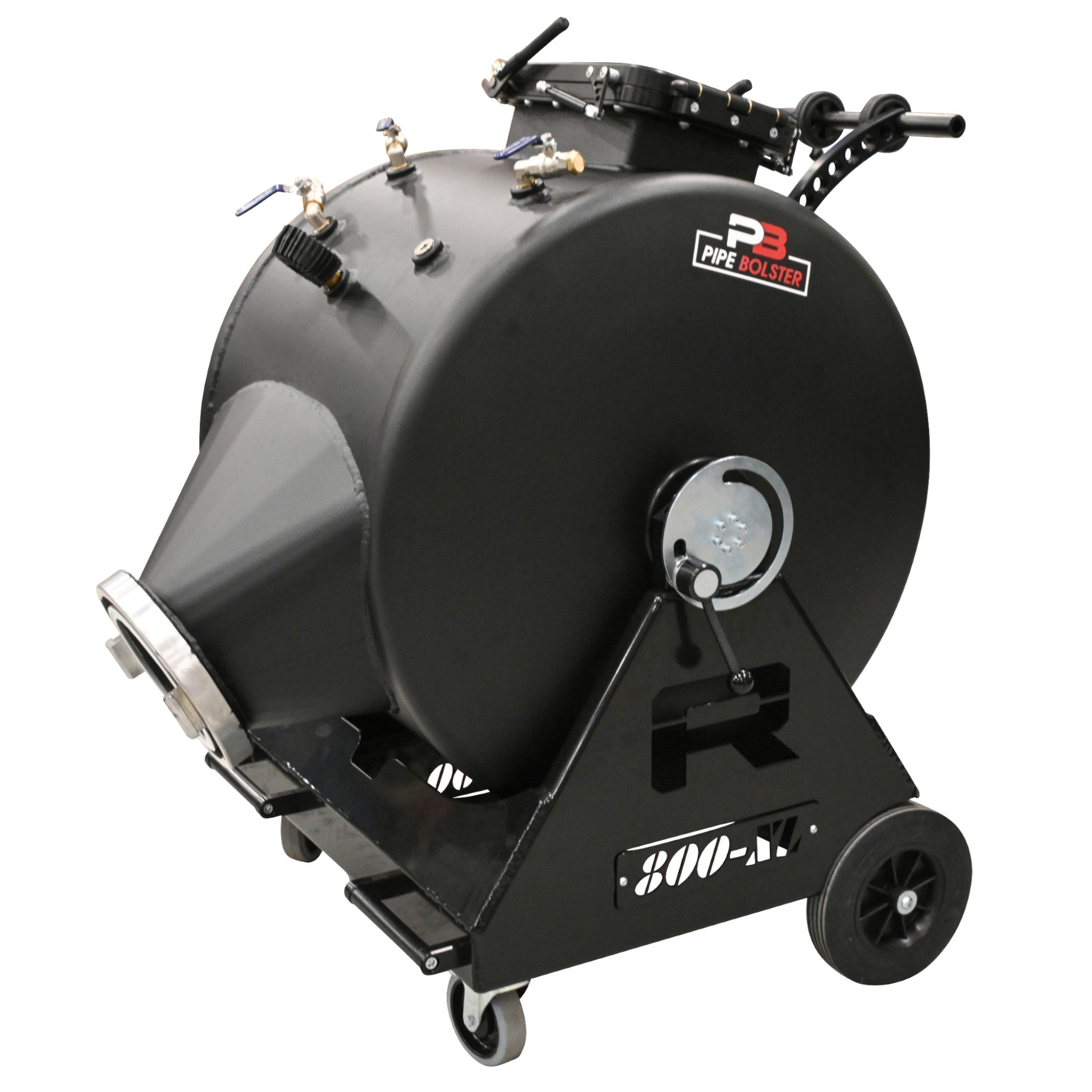

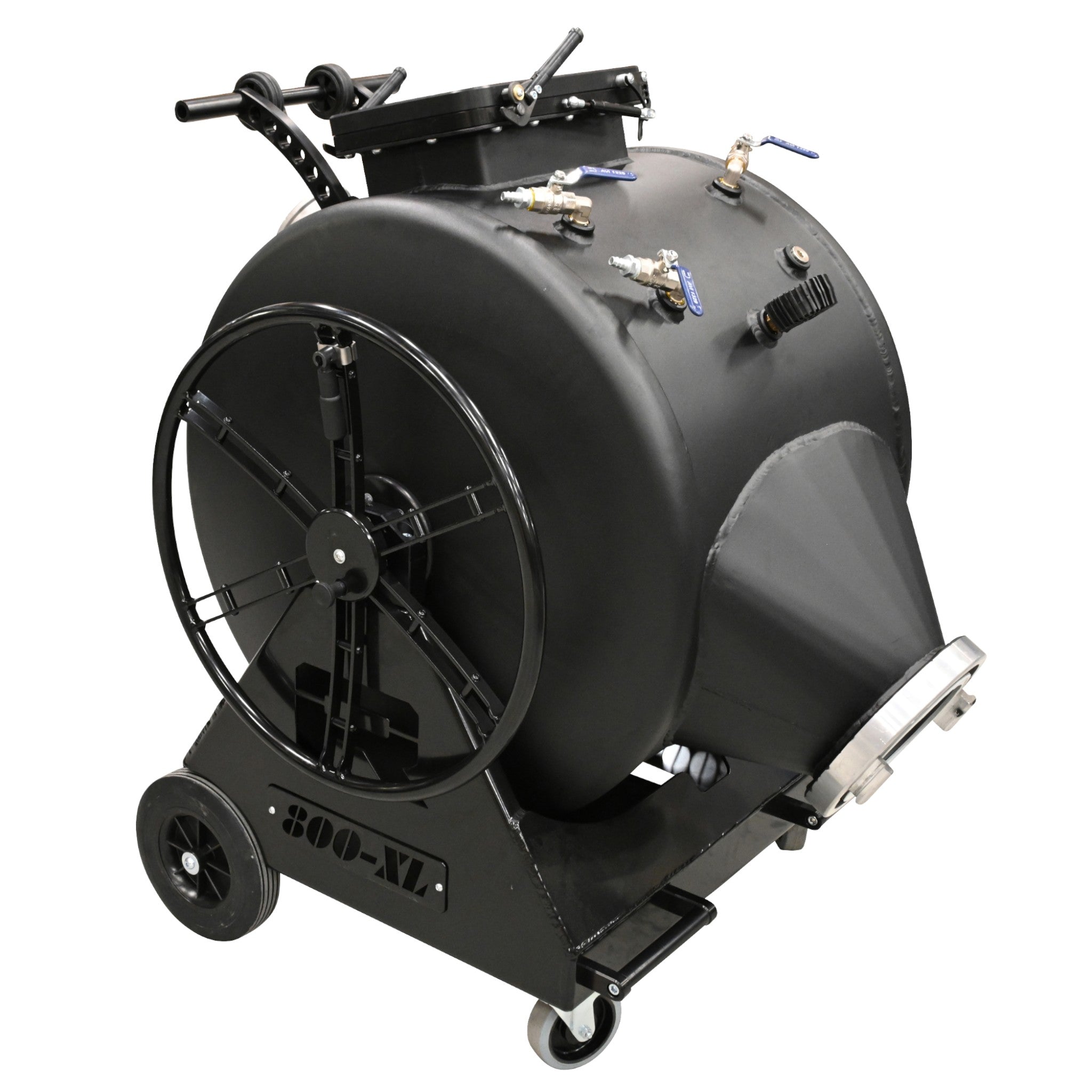

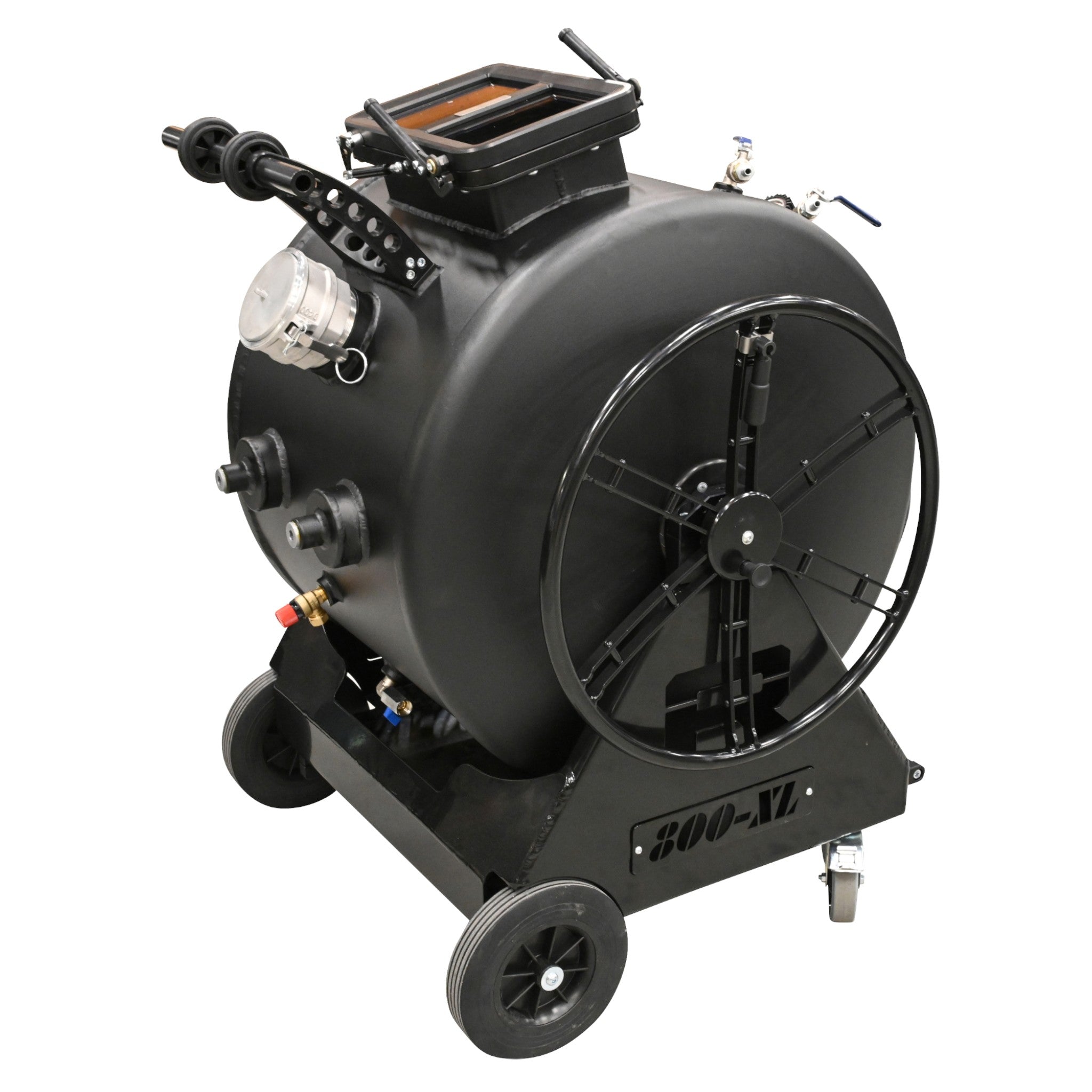

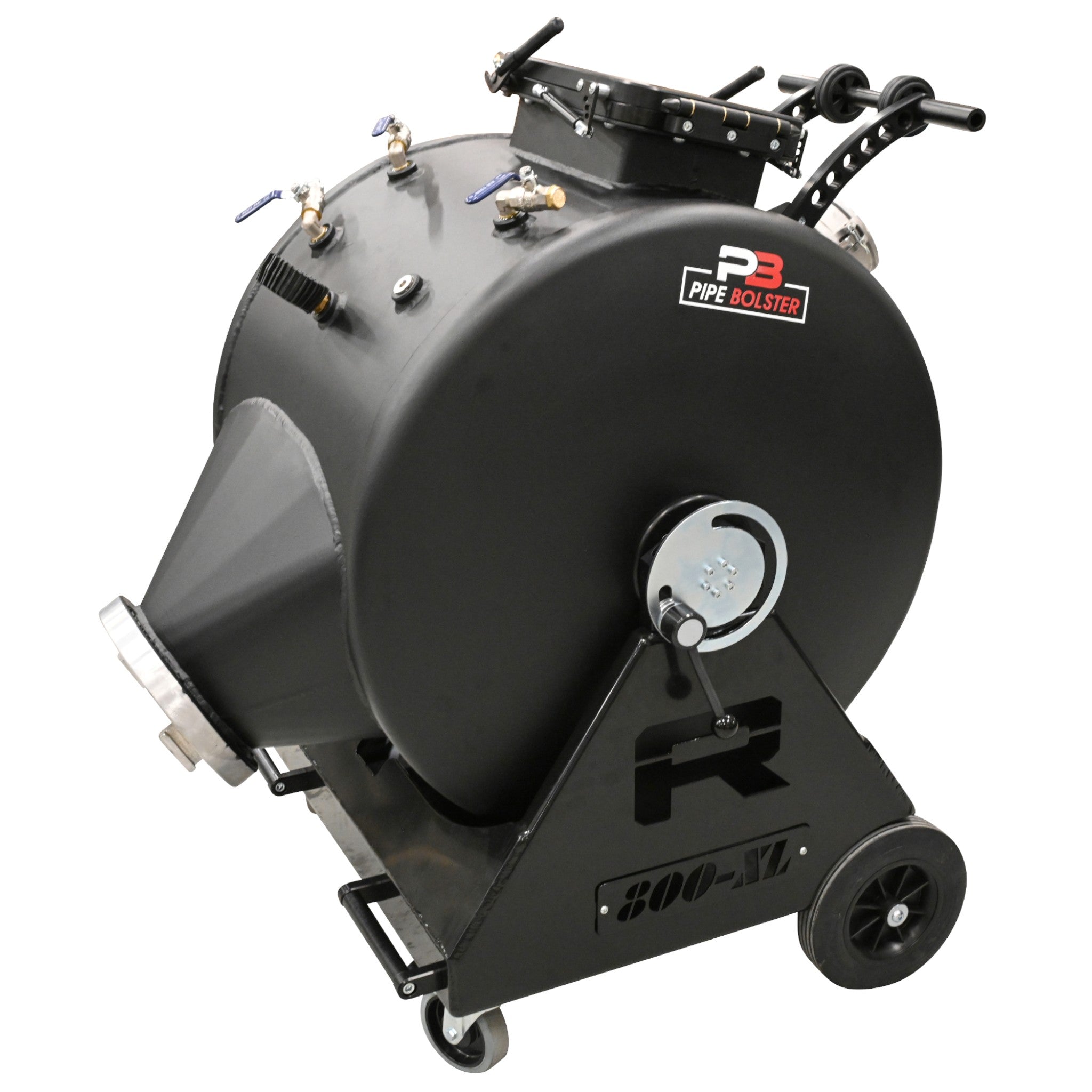

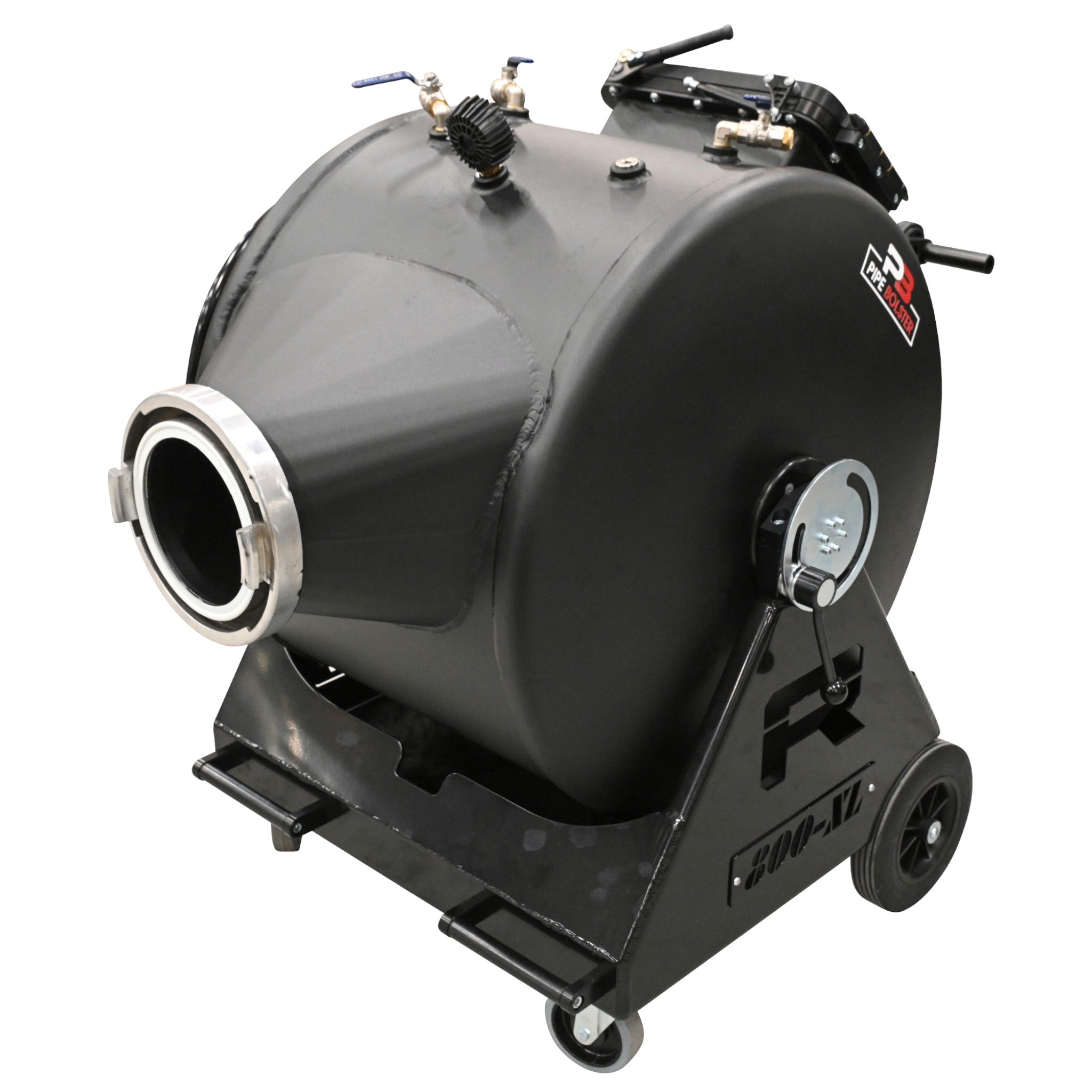

RENSSI Inversion Drum | RID-800-XL

Versatile and Durable Inversion Equipment for CIPP Applications

The PipeBolster Inversion Drum is a robust and reliable tool designed for the installation of CIPP (Cured-In-Place Pipe) liners in a wide range of pipe rehabilitation projects. Constructed from stainless steel, it offers consistent performance and precise control during liner inversion, whether on residential, commercial, or municipal jobs.

Main Features:

• Stainless Steel Build: Ensures long-term durability and resistance to wear in demanding environments.

• Inspection Window: Provides clear visibility to monitor liner inversion in real-time.

• Pressure Regulation Valve: Enables smooth and controlled liner deployment.

• Ergonomic Drum Rotation System: Facilitates consistent and even inversion.

• Multiple Nozzle Sizes Available: Supports a wide range of liner diameters, from 2" to 24".

• Compatible with Various Curing Methods: Suitable for ambient cure, hot water, steam, and UV curing processes.

• Open Compatibility: Works seamlessly with PipeBolster pre-impregnated liners and other industry-standard liners.

Designed to meet the practical needs of field technicians and contractors, the PipeBolster Inversion Drum supports efficient, repeatable installations across different site conditions and curing technologies.

SPECIFICATIONS:

• Drum width: 25” / 63 cm, height: 46” / 117 cm, weight: 164 lbs / 74.5 kg
• Liner intake: 4" / 330 ft | 100 mm / 100 m
• Max pressure 1.5 bar


ACCESSORIES:

• Nozzle connection: 6” Camlock
• 3" / 75 mm drum head
• 4" / 100 mm drum head
• 6" / 150 mm drum head

• 8'' / 200 mm drum head
