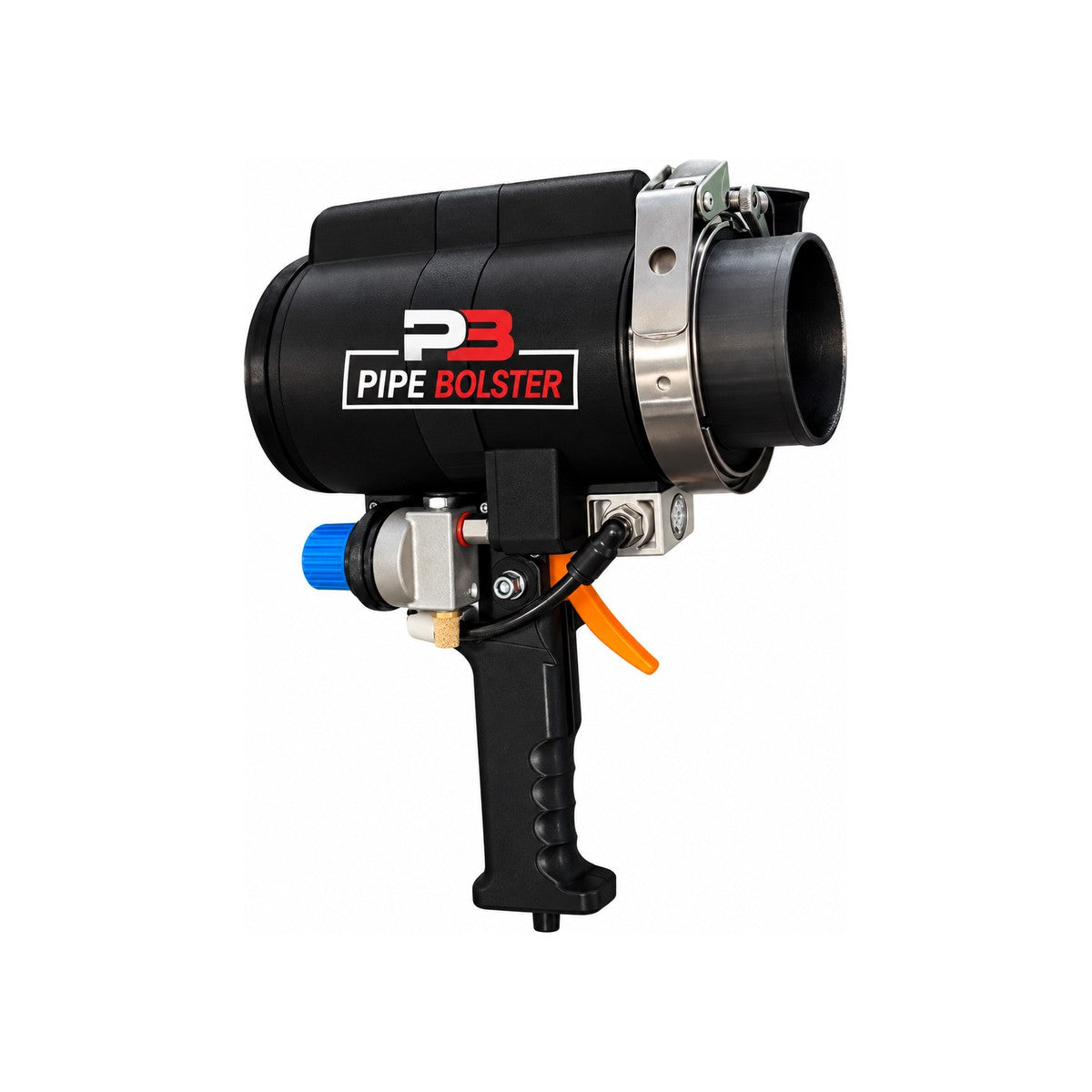

PipeBolster Tube Gun CIPP

Compact Handheld Inversion Unit for Small-Diameter CIPP Liners

The PipeBolster Tube Gun is a lightweight, handheld inversion unit built for fast and easy installation of CIPP (Cured-In-Place Pipe) liners in small-diameter pipes. A simple squeeze of the trigger inverts the liner into the pipe, making it the ideal tool for short runs, indoor work and tight spaces where a full-size inversion drum won't fit.

Main Features

• Handheld and portable: compact enough to carry anywhere and set up in minutes, even in basements, crawl spaces and mechanical rooms.
• Trigger-controlled inversion: gives the operator direct, precise control over liner deployment.
• Built-in pressure relief valve: protects the bladder from over-pressurization for safe operation.
• Interchangeable nozzles: handles 2", 3", 4" and 6" liners with a single unit.
• Works with a standard compressor: no large or specialized air supply required.
• Handles bends: capable of lining through 90° bends when used with a multi-bend inversion liner.
• Versatile applications: suitable for PVC, ABS, clay, cast iron and concrete pipes, underground or above ground.

Ideal for plumbers and contractors adding CIPP lining to their services, the PipeBolster Tube Gun delivers professional results on residential and light commercial drain lines with minimal equipment and setup time.

Specifications

• Liner diameter range: 2" to 6" / 50 to 150 mm
• Maximum liner thickness: 5 mm
• Recommended installation length: up to approx. 50' / 15 m (longer runs possible with adequate air supply)
• Air supply pressure: 4 to 10 bar / 58 to 145 PSI
• Minimum air consumption: 8 CFM / 230 L/min
• Compatible resins: epoxy, polyester and silicate (test liner/resin compatibility before use)

Included

• PipeBolster Tube Gun
• 2" / 50 mm inversion nozzle
• 3" / 75 mm inversion nozzle
• 4" / 100 mm inversion nozzle
• 6" / 150 mm inversion nozzle
• Carrying case
