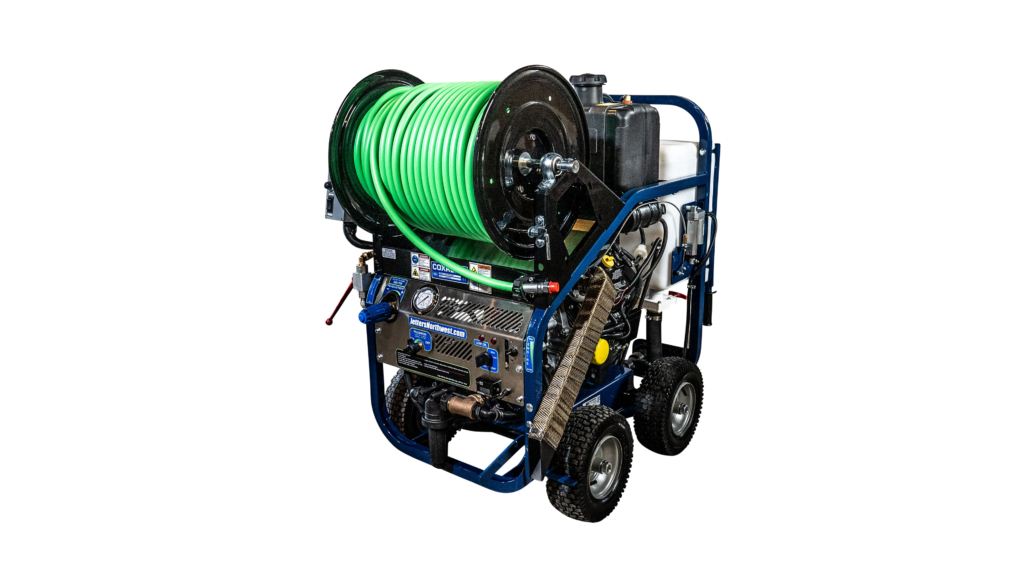

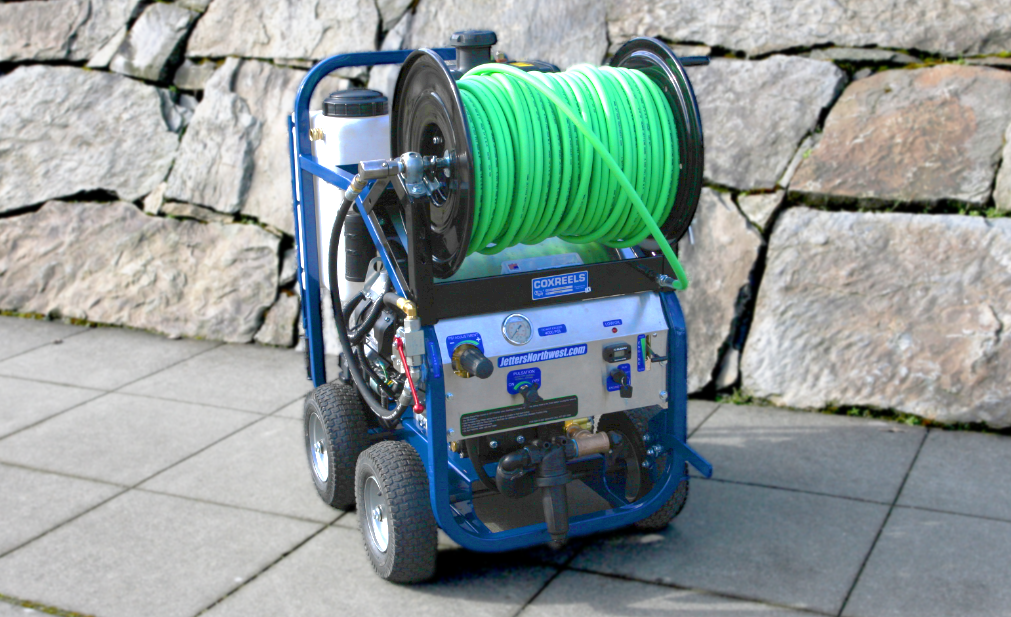

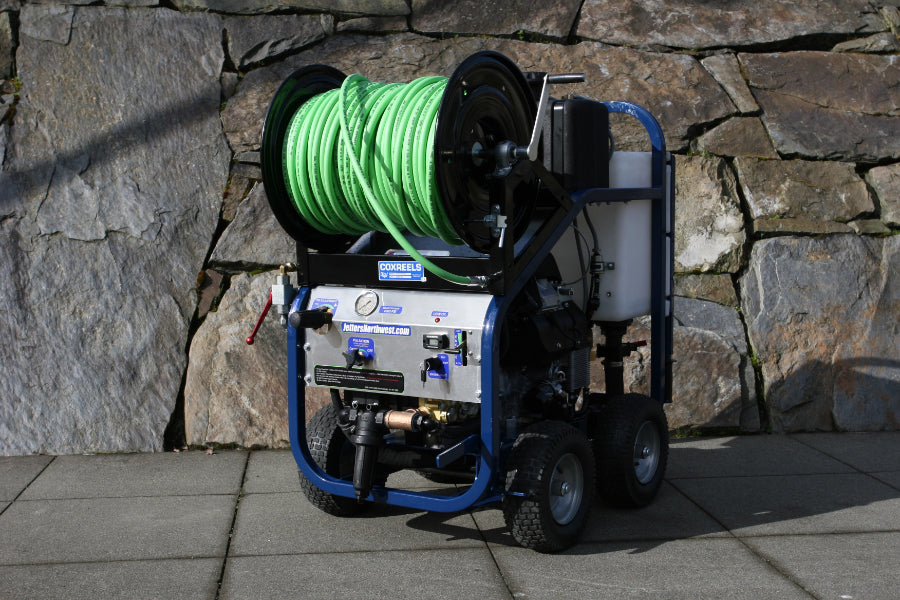

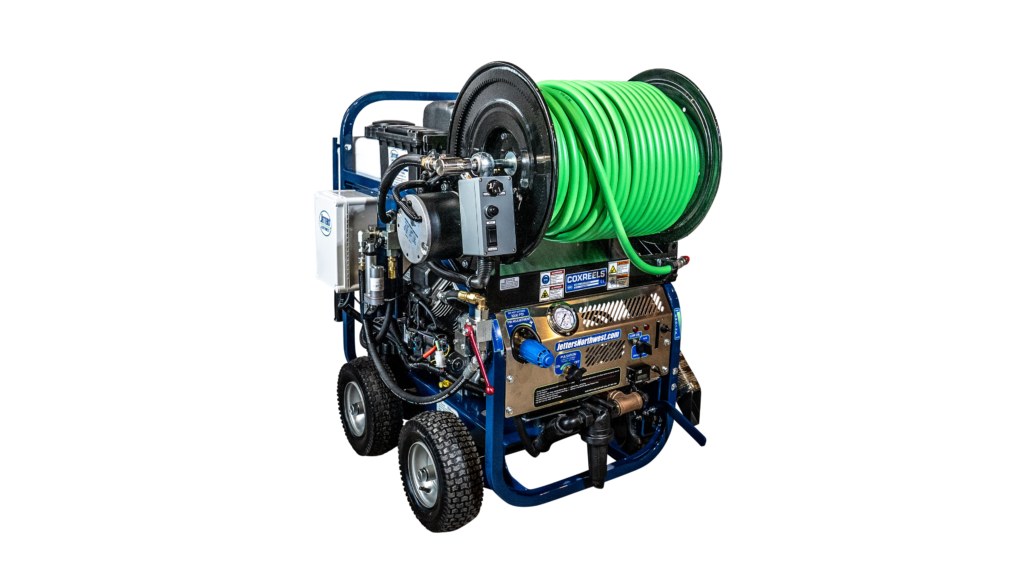

Brute Mountable-Skid or Portable Jetters

Brute Power & Performance

2 models available:

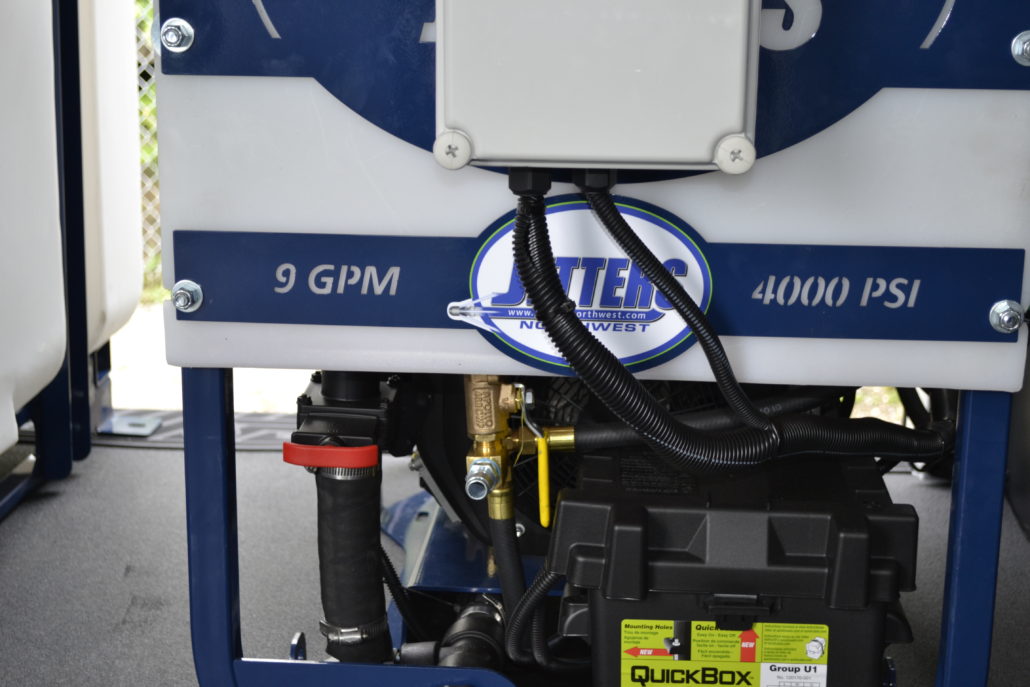

• 9 GPM | 4000 PSI
• 12 GPM | 3000 PSI

Panel Mounted Controls:

• All Controls for safe operation are Panel Mounted just below the Hose-Reel

Choose your Water Source:

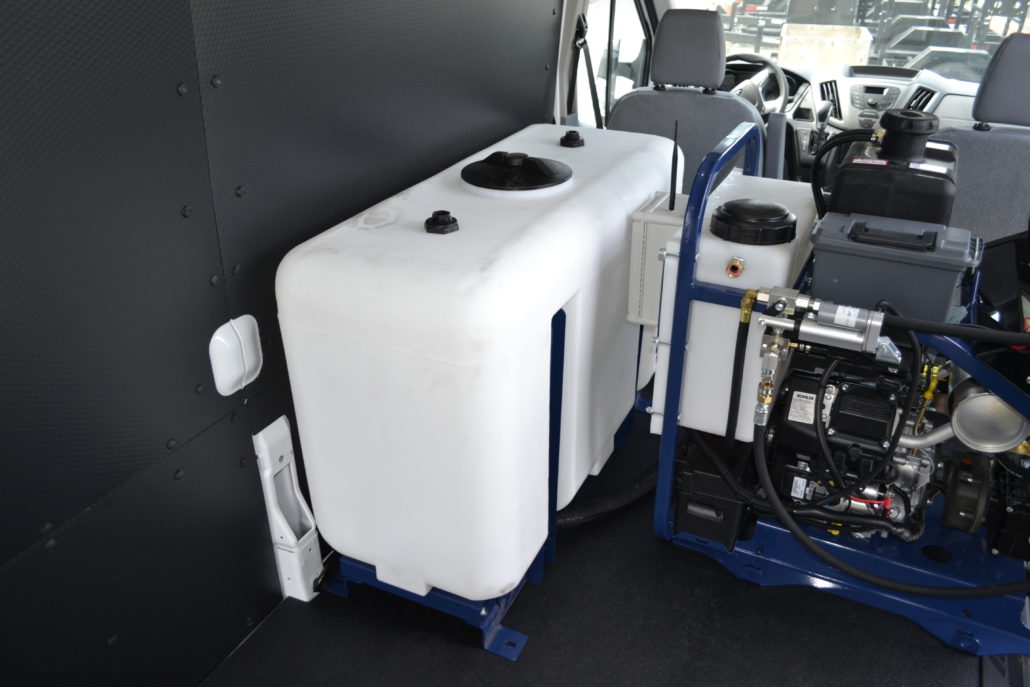

• Draws water from Hose-Bib or easily connects to a Larger Water-Tank (several tank-sizes available, or provide your own)

Modular Design:

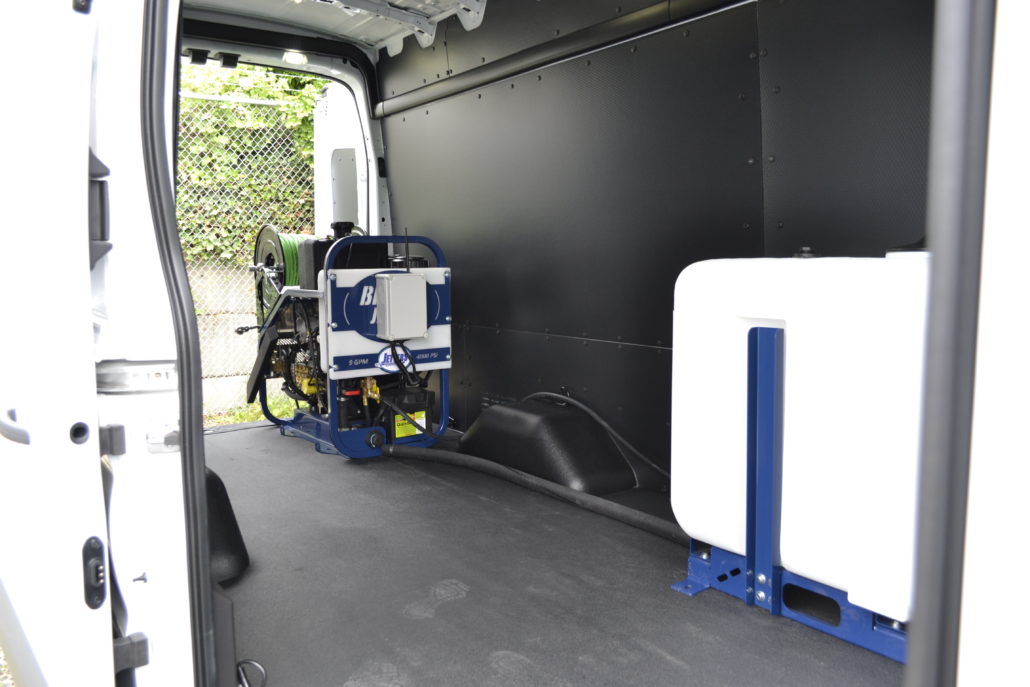

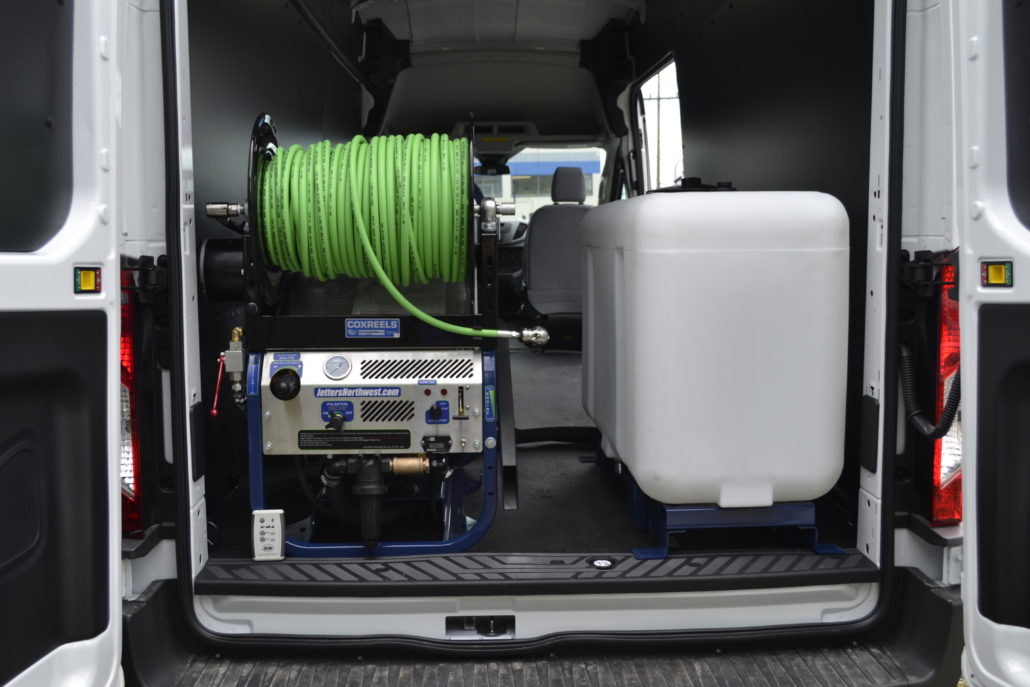

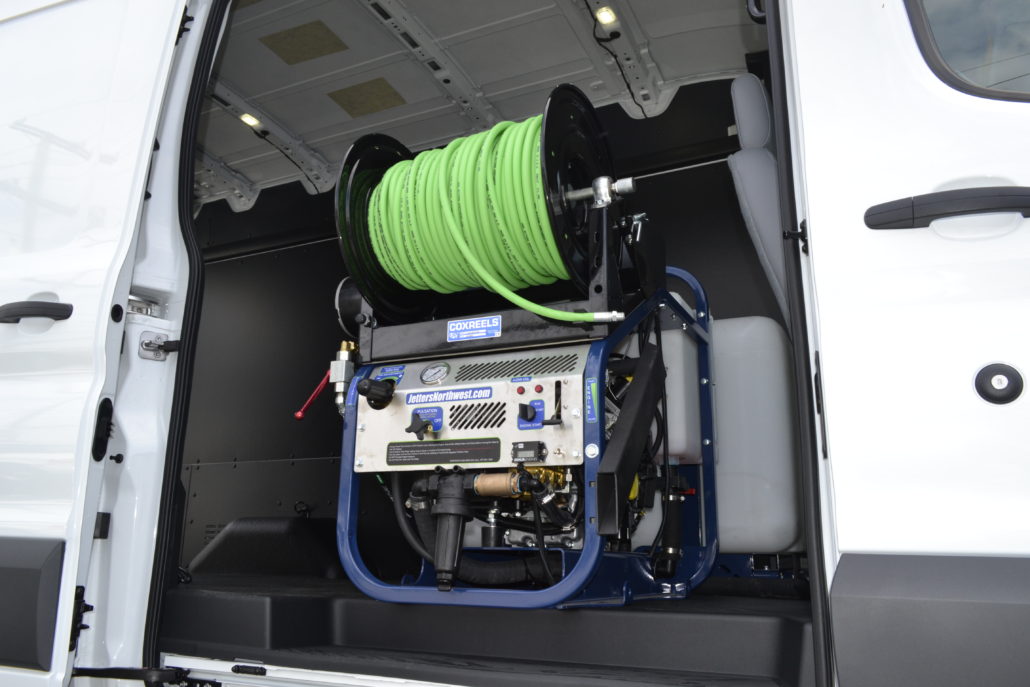

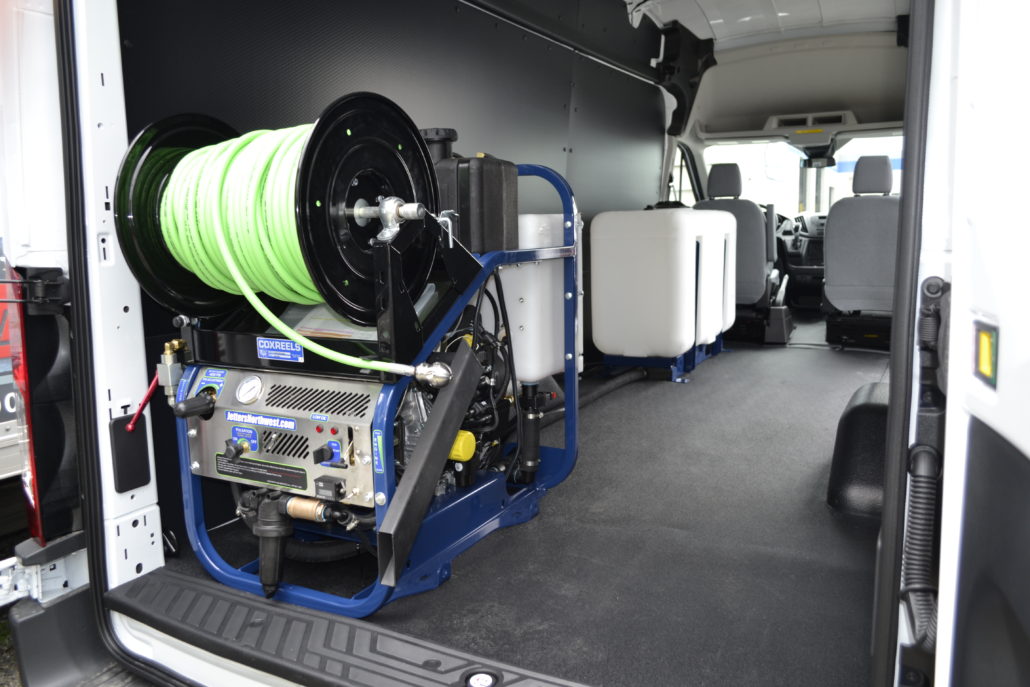

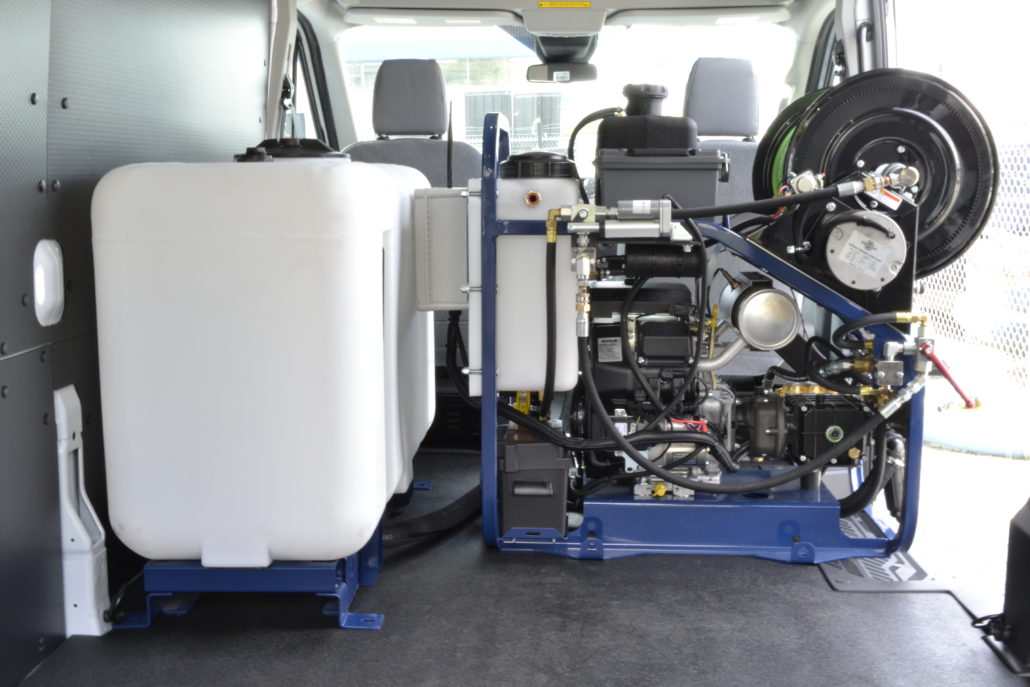

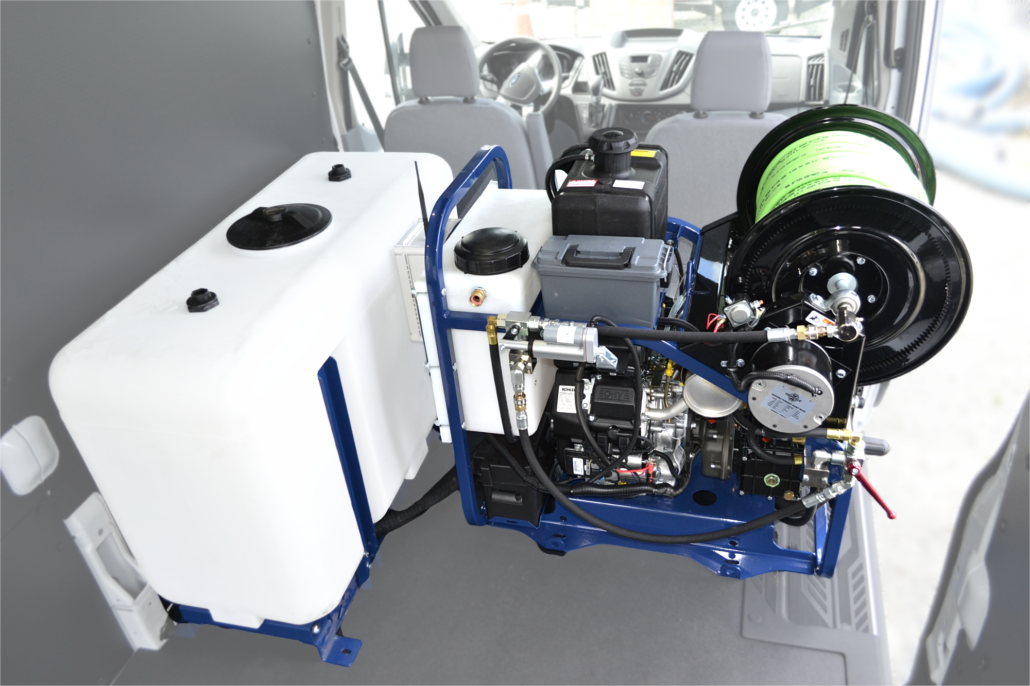

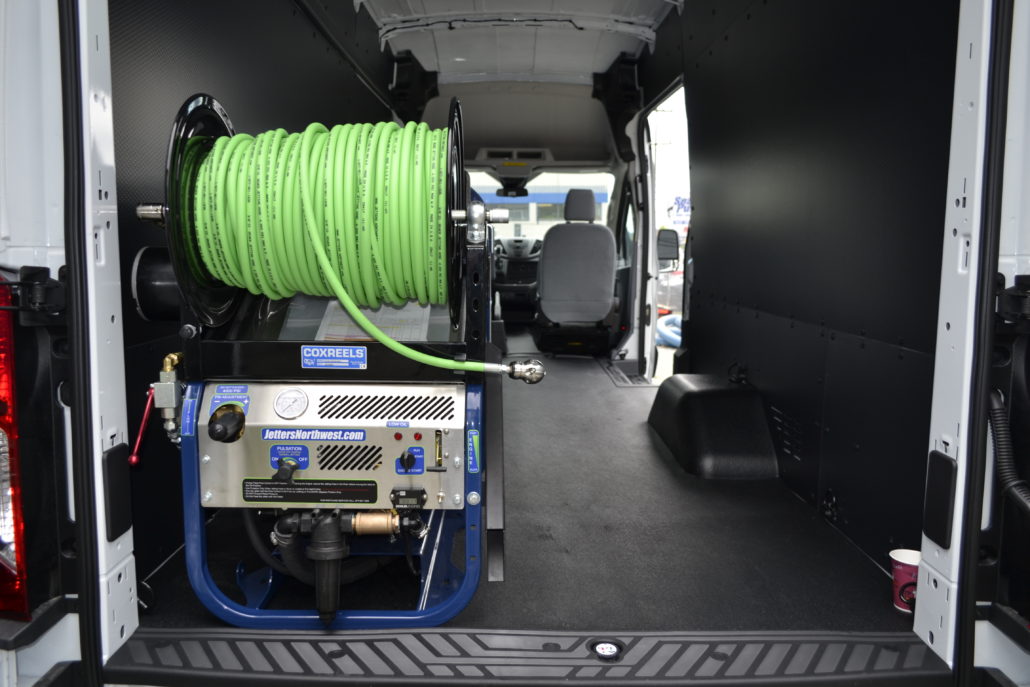

• Easily Remove Portability Kit for mounting your Van/Truck/Trailer as a Skid.

Key Features:

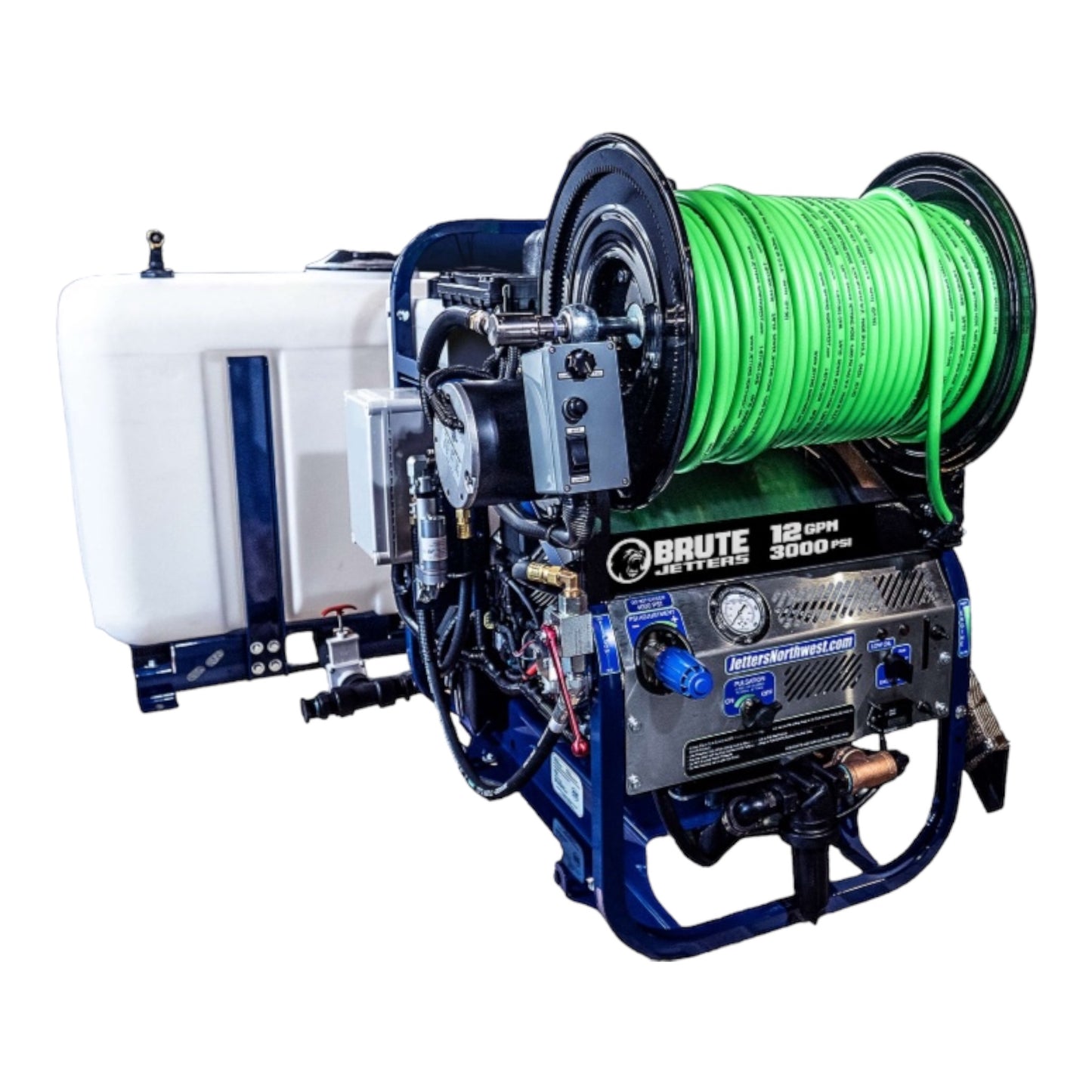

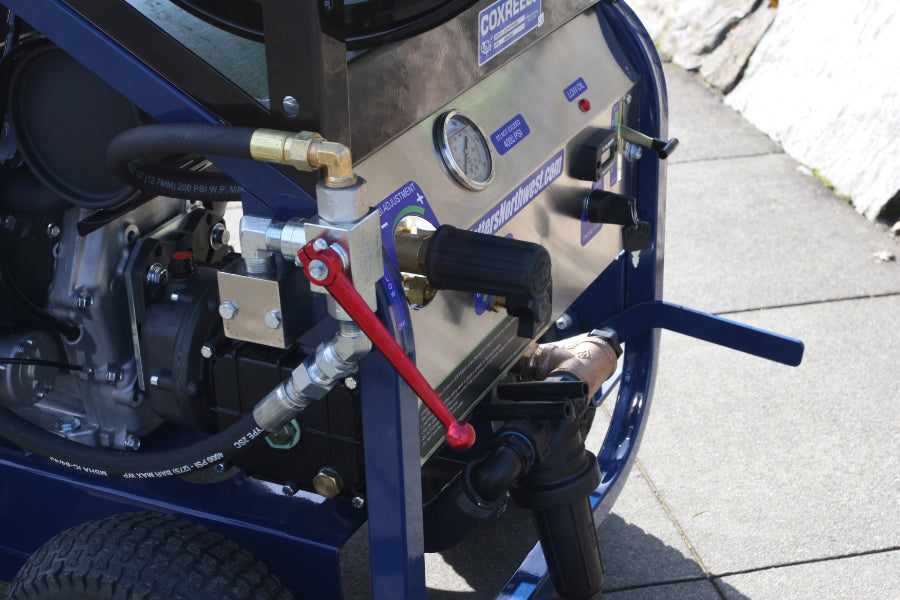

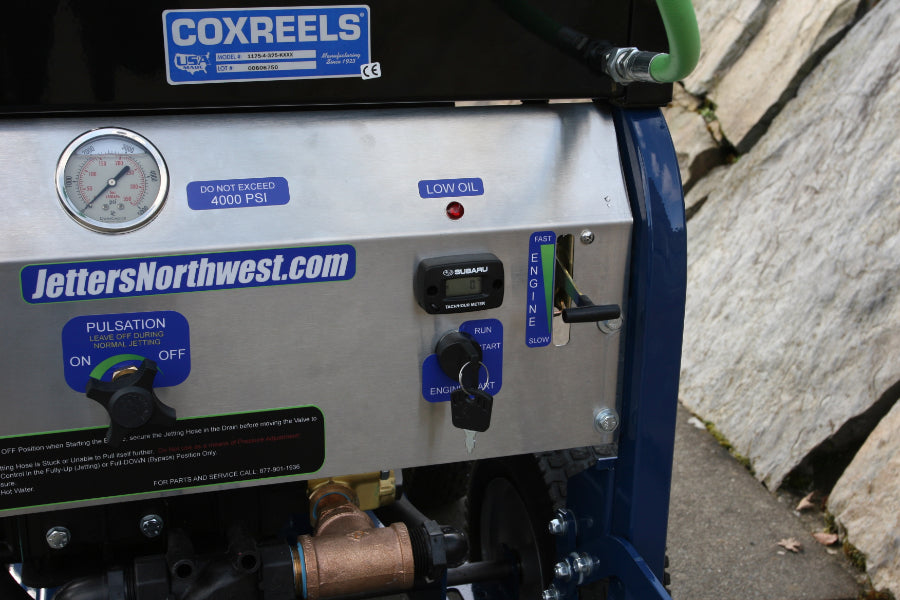

All Controls are conveniently Panel-Mounted below the Hose-Reel for efficient operation:

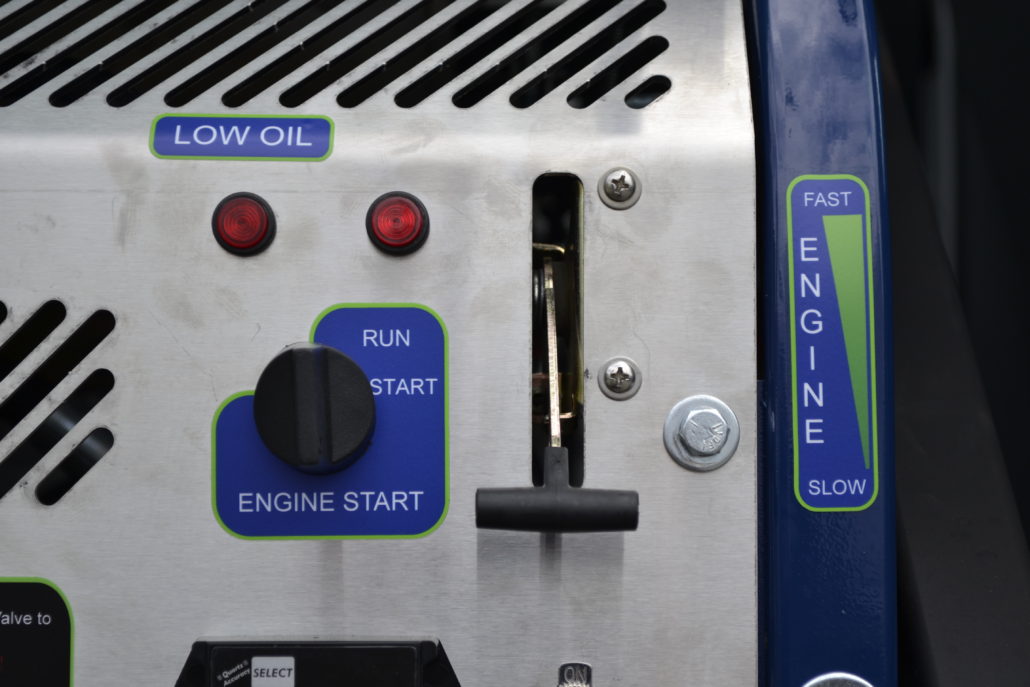

• Engine Key-Switch and Engine-Throttle are located on panel, near the Jetting controls

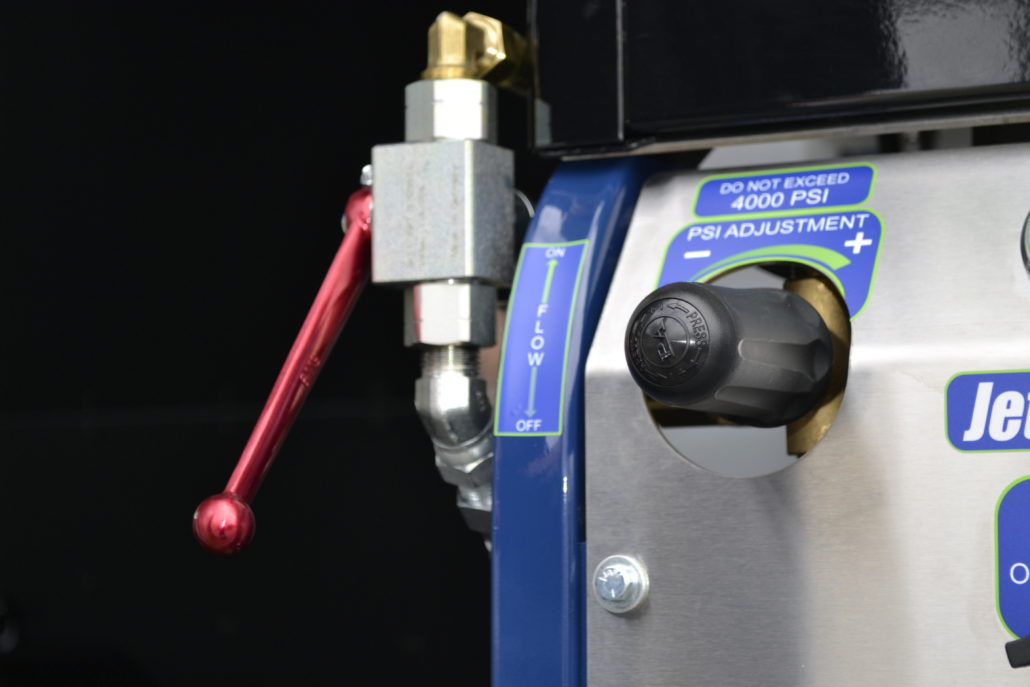

• Adjustable Pressure Regulator: provides a wide range of adjustment and enables the use of Remote Shutoff-Valves or Foot-Pedals

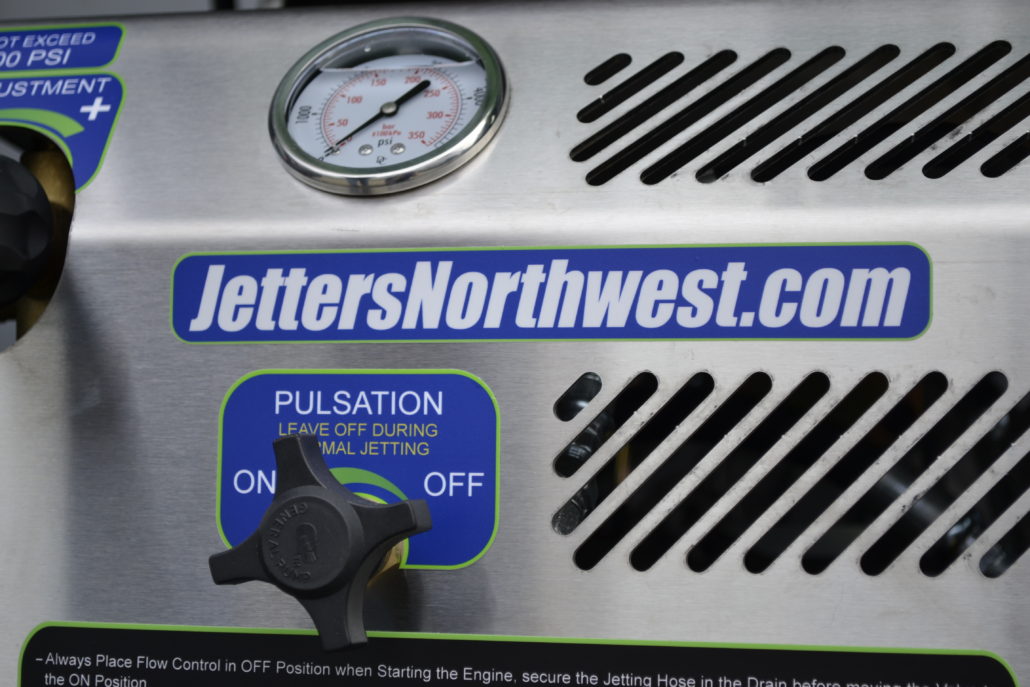

• Pressure-Gauge (liquid-filled) on the panel shows working pressure
• Pulsation-Control on panel adjusts from light vibration to full pulse mode

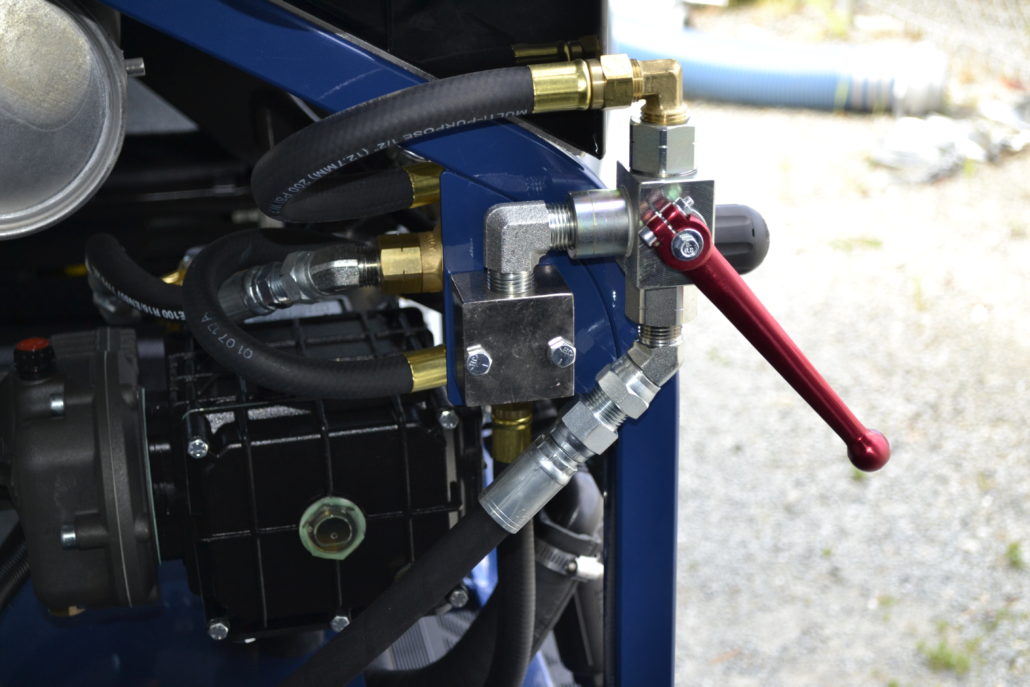

• 3-Way Jetting-Control Valve: directs water to the cleaning-nozzle OR dumps pressure by bypassing water back to the tank, keeping the pump cool

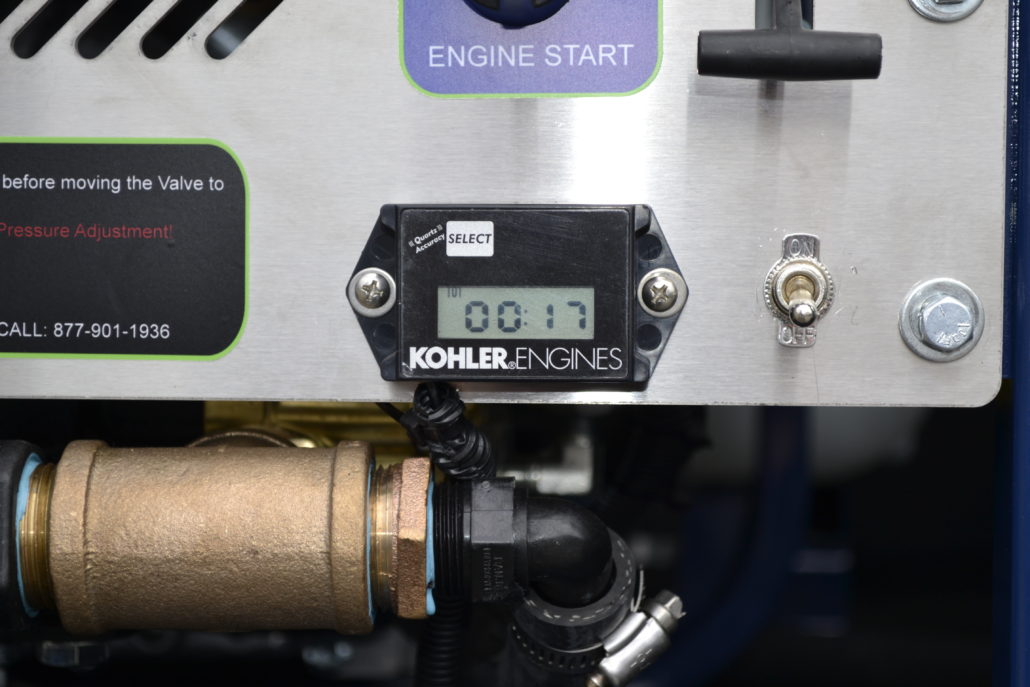

• Engine Hour-Meter / Tachometer: helps track maintenance intervals, & shows engine RPM while running

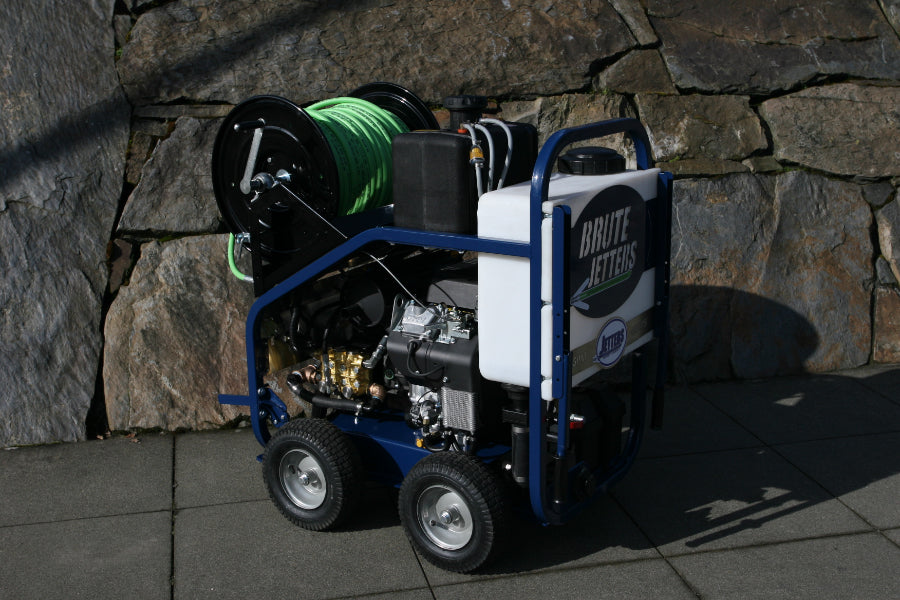

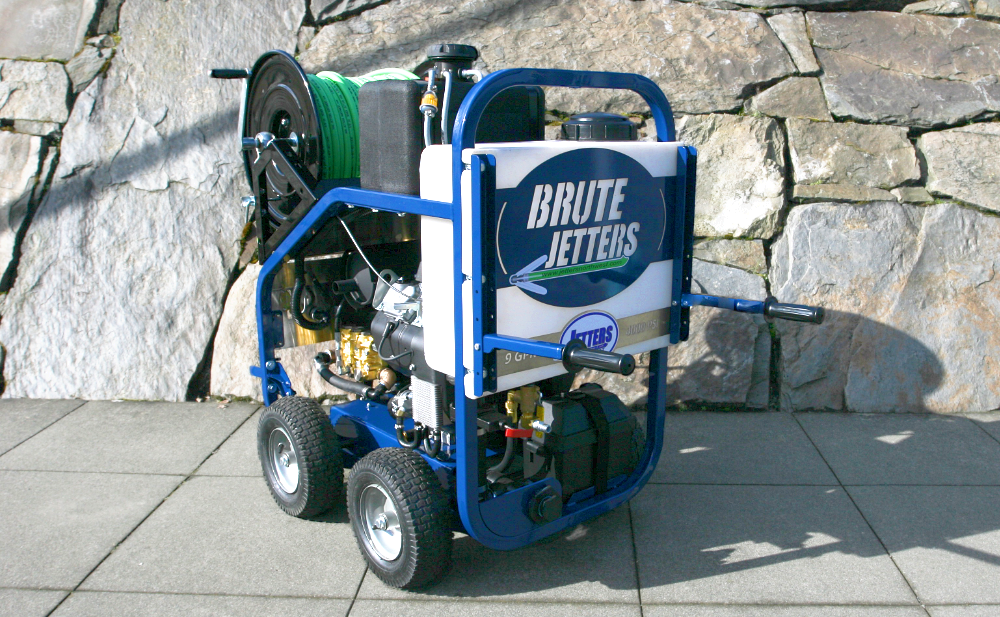

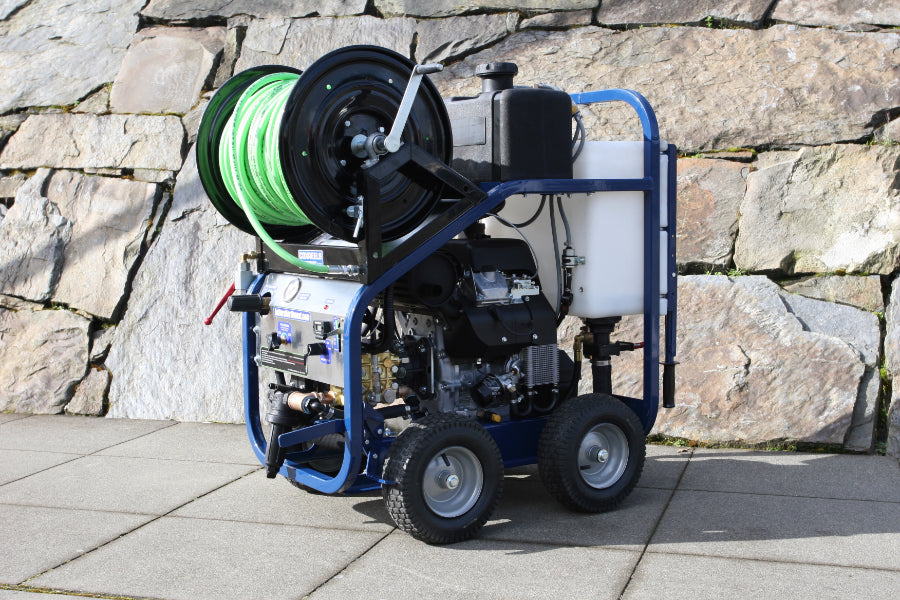

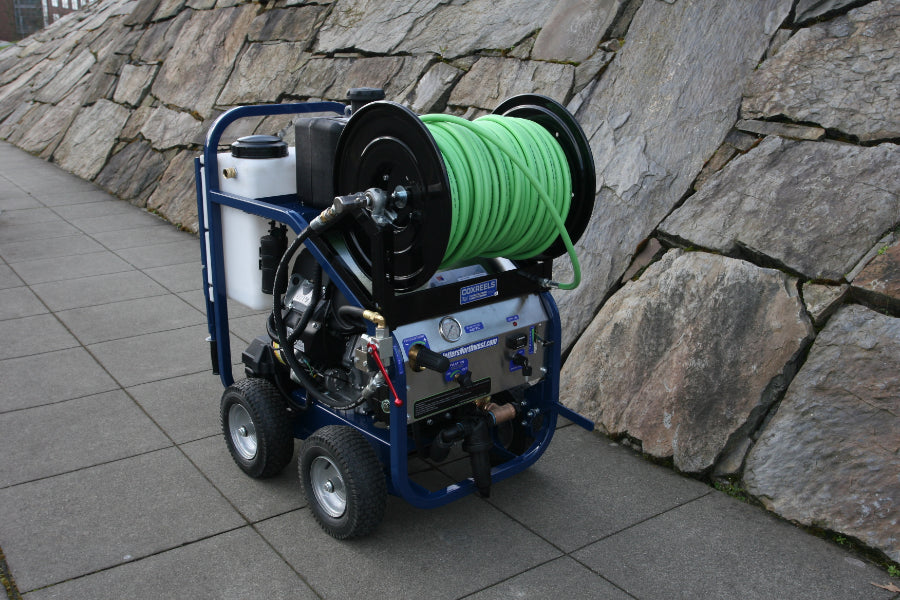

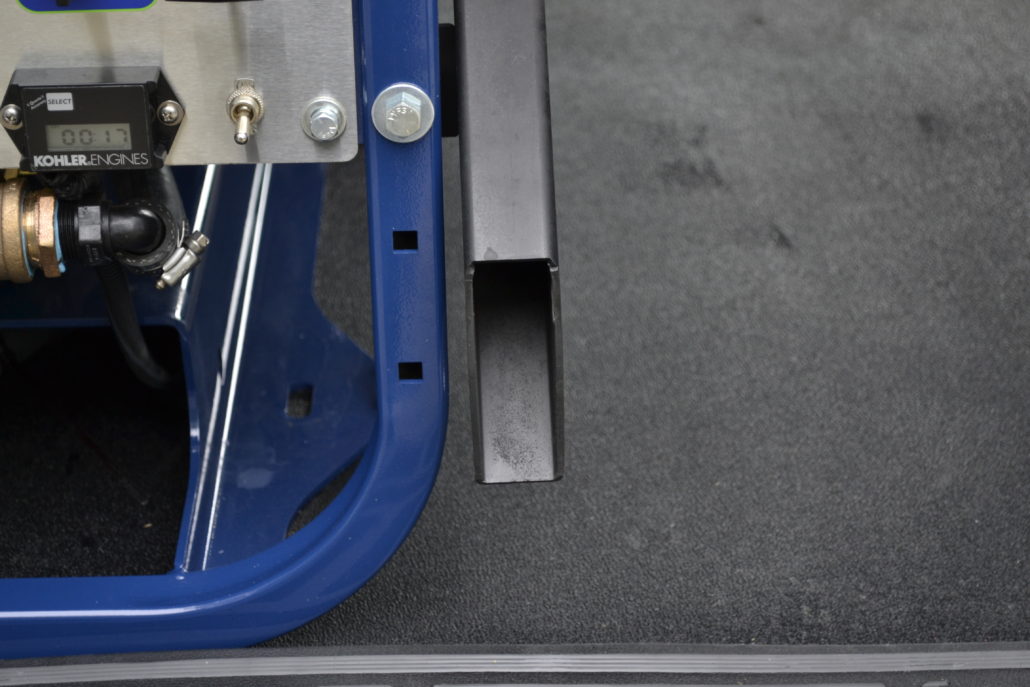

Modular Frame Design can be configured for use as a Portable Jetter or as a compact Mountable-Skid Jetter; either option you choose can be changed later as your needs change

Welded Steel Roll Cage Frame with Powder-Coated finish

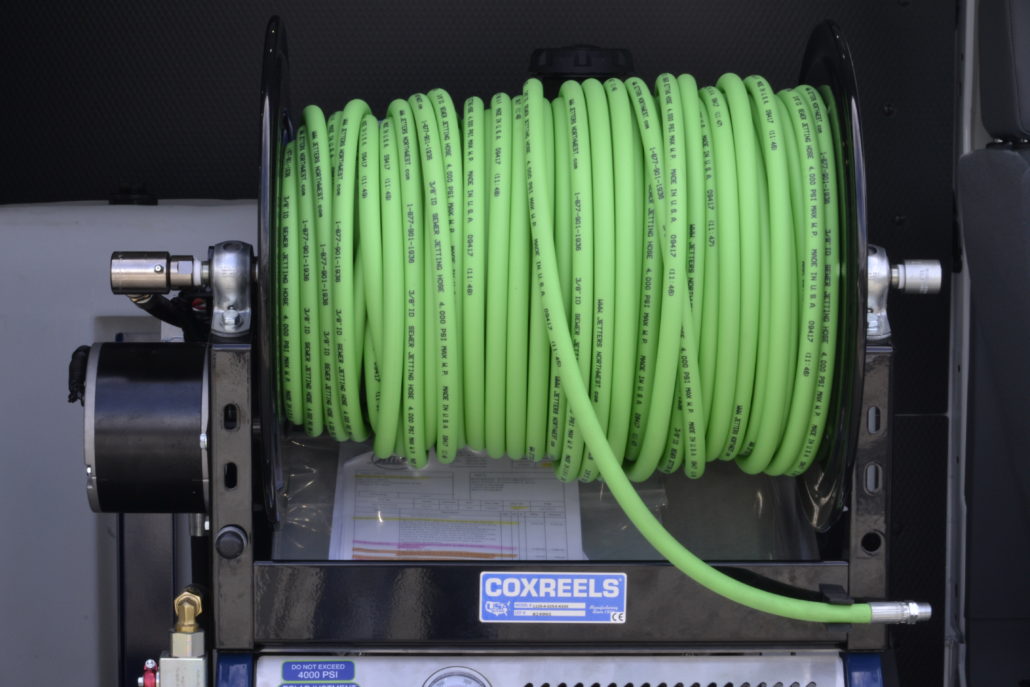

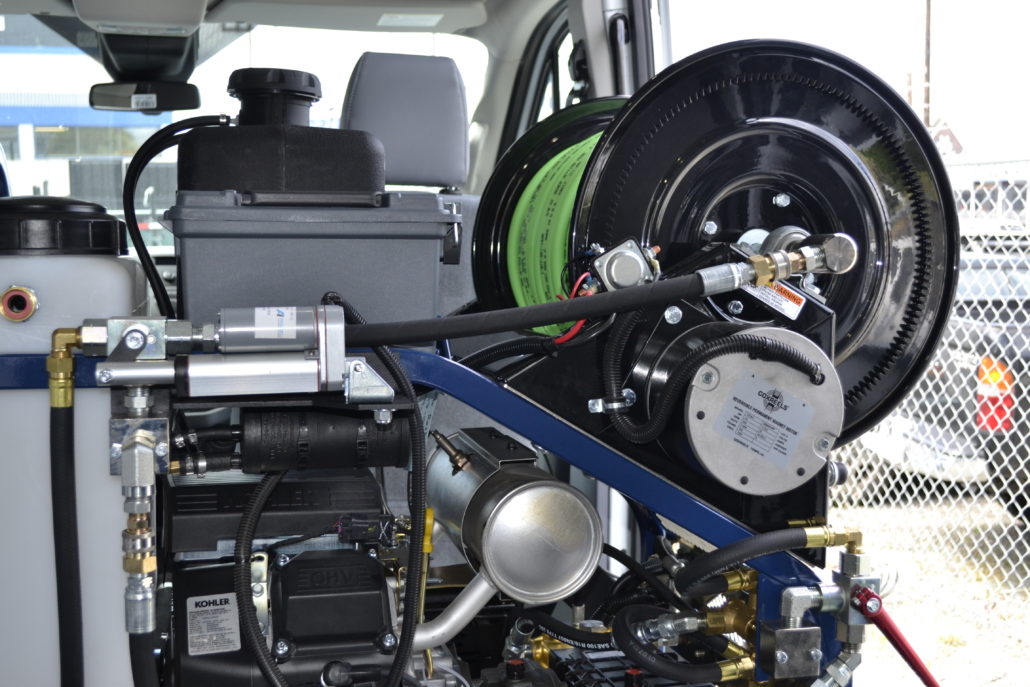

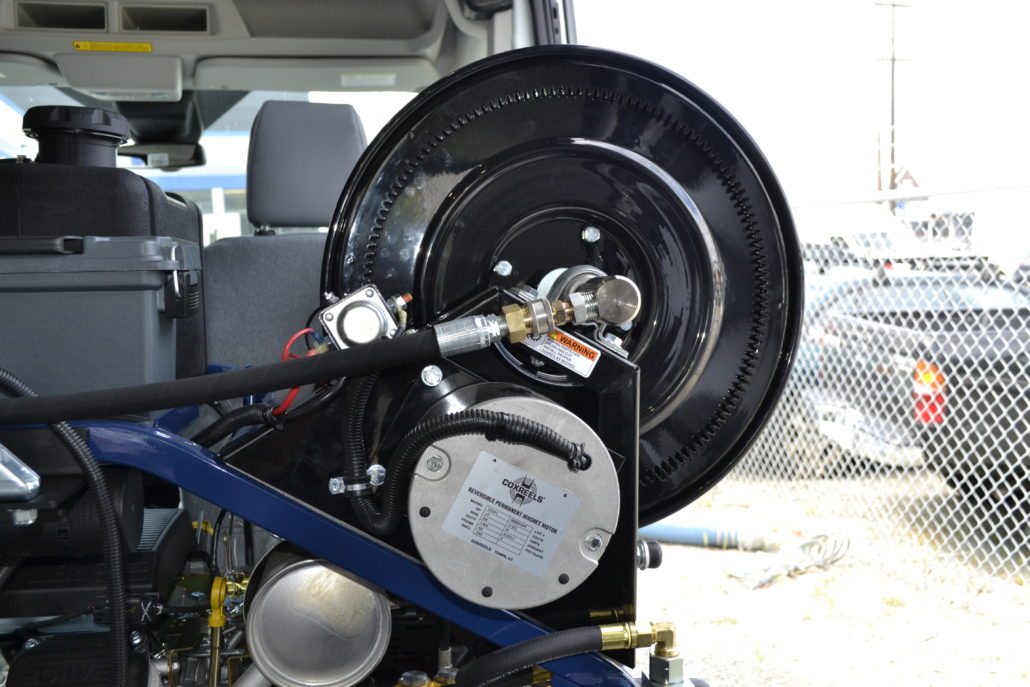

Heavy-Duty Hose Reel, welded steel A-Frame style with pillow block bearings

5000-PSI rated Hose Reel Swivel with Grease-fitting

300-ft. Premium Jetting -Hose, Made in USA

• 3/8'' Piranha Hose for the 9 GPM | 4000 PSI model
• 1/2'' Piranha Hose for the 12 GPM | 3000 PSI model

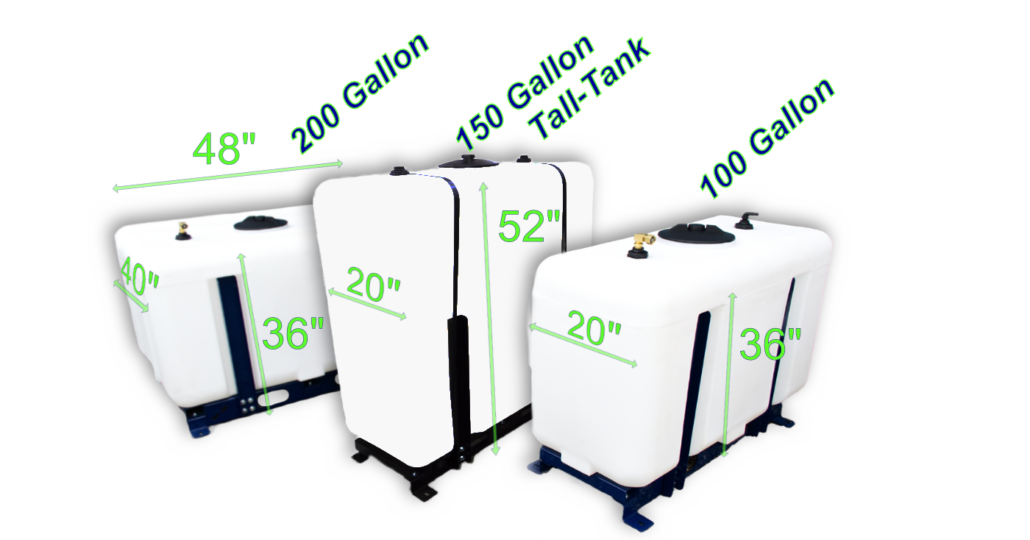

Water Tank Included:

• 100 Gallon tank for the 9 GPM | 4000 PSI model
• 150 Gallon tank for the 12 GPM | 3000 PSI model

4-Nozzle Set included: Penetrator, Rotator, Pusher, Flusher

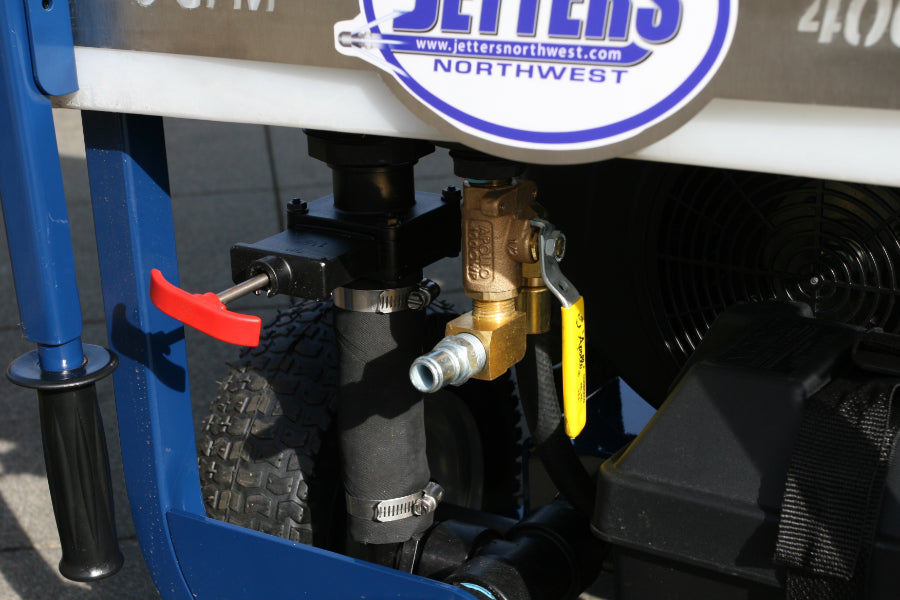

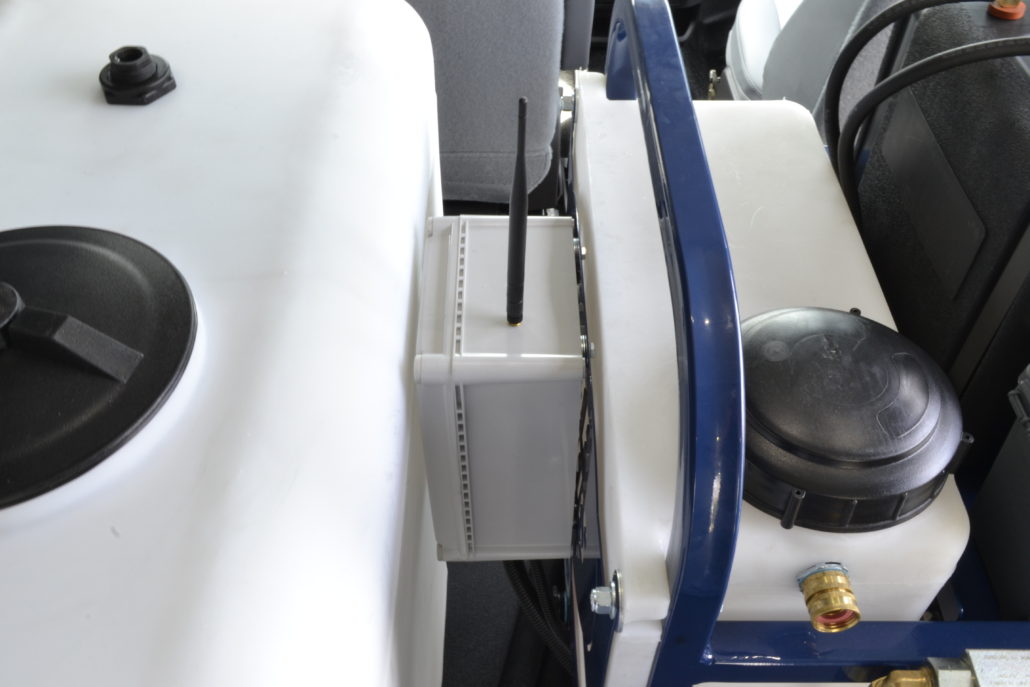

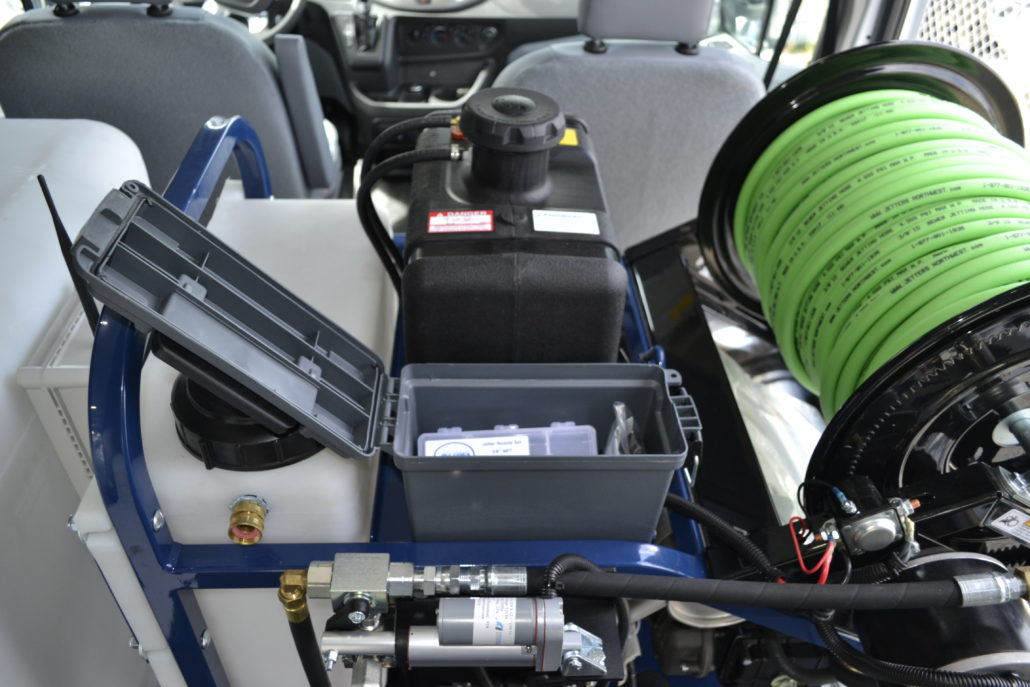

12-Gallon Water Buffer tank with internal Float Valve to prevent over-filling

Suitable for use as a “Buffer Tank” and/or an Antifreeze reservoir

Able to draw water from a larger tank (portable and mountable tanks are available options)

Kohler Fuel-Injected 747cc OHV Engine (or optional 25-HP Propane-fueled)

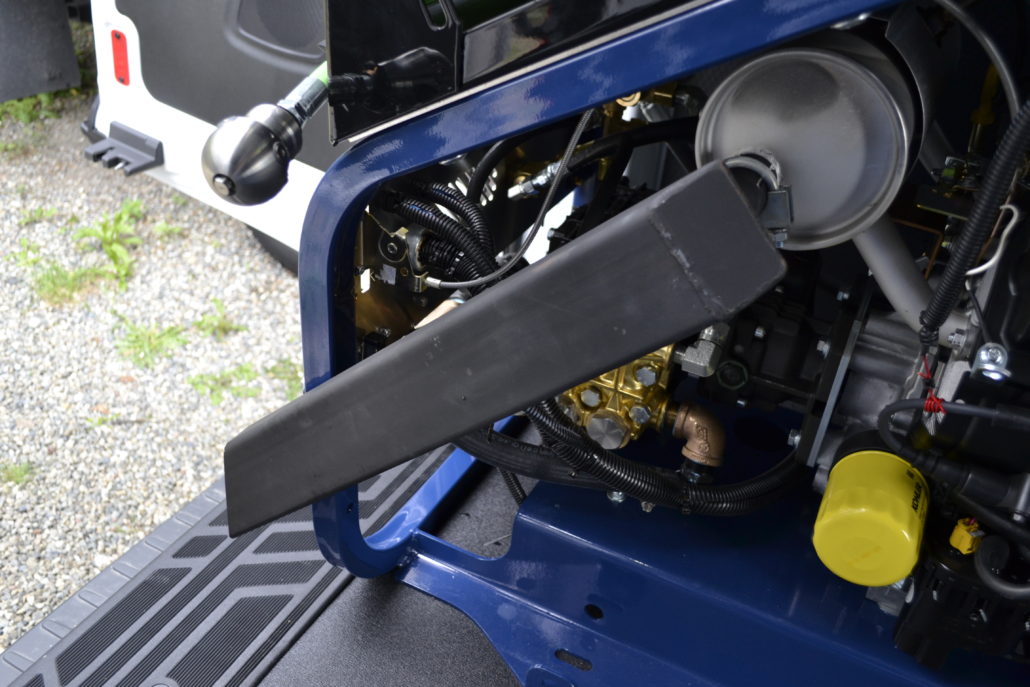

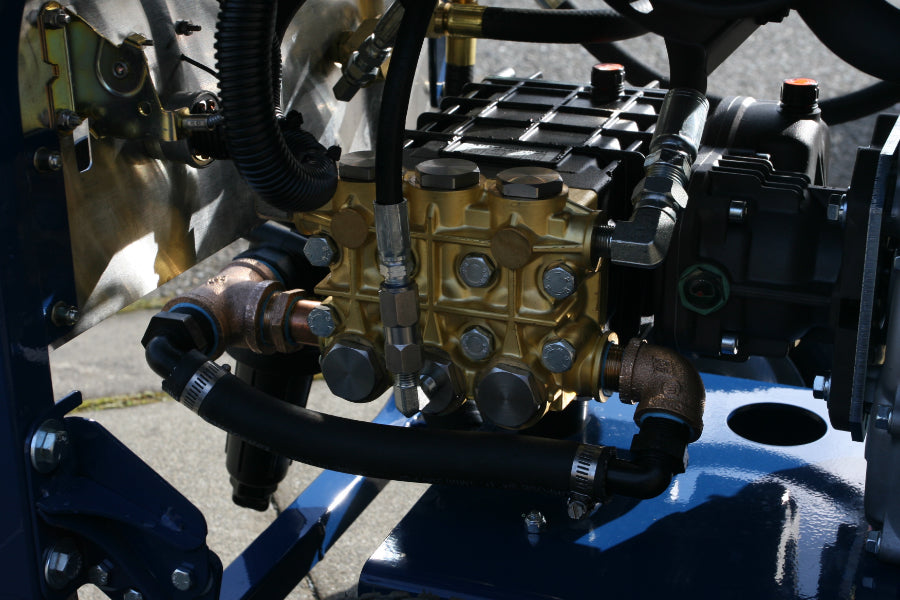

UDOR “Super-Duty” Triplex Plunger Pump

5-Gallon Fuel Tank, CARB/EPA approved

Also Includes: Safety Nozzle Extension, Accessory-Adapter and Orifice-Cleaner tool

Dry Weight: 498 lbs.

Portable-Cart Jetter Dimensions:  L 45″ X W 31″ X H 45″
